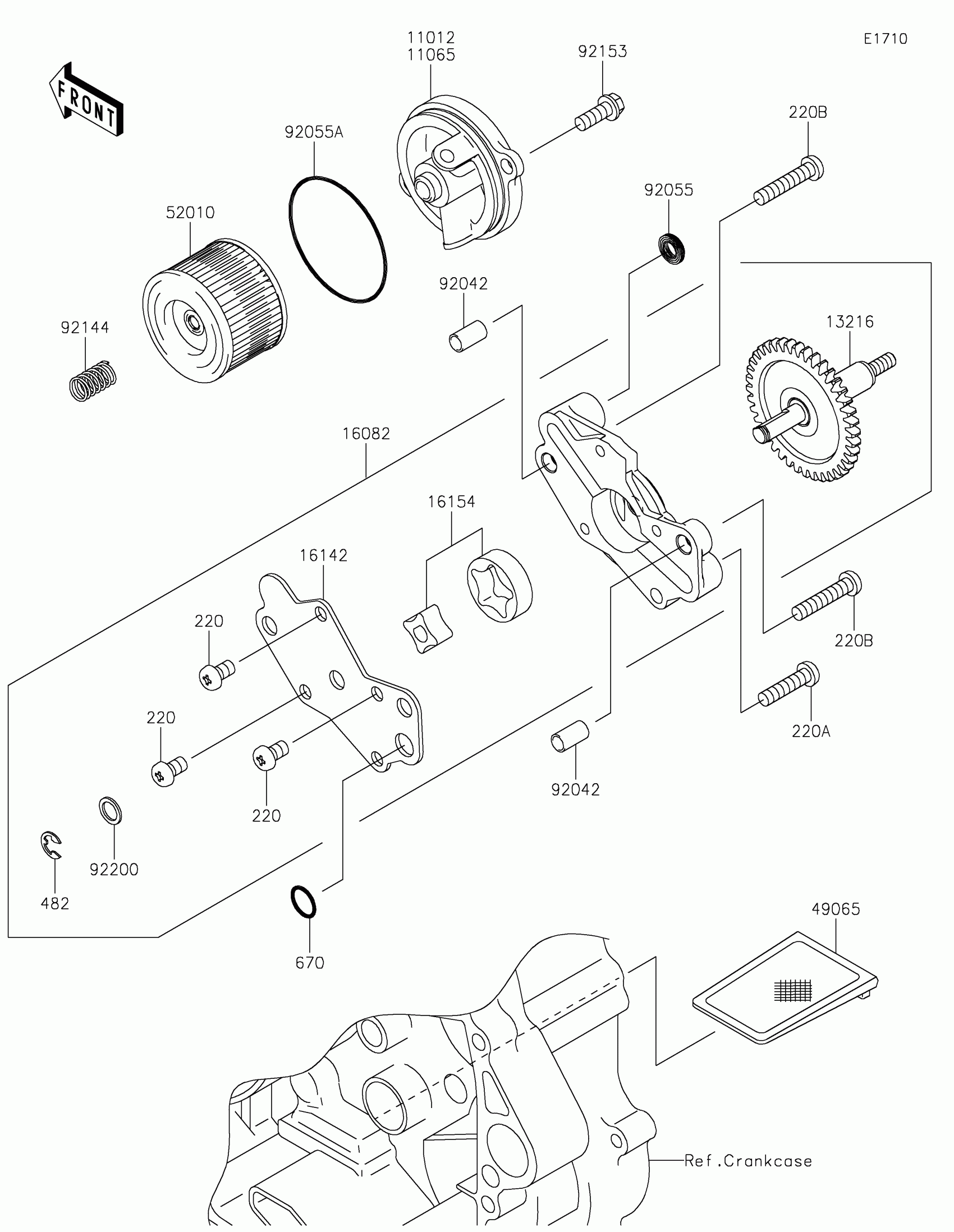

Kawasaki KLX®250 Oil Pump Diagram

Description

Price

11012

CAP,OIL FILTER

11012-1915

$59.58

13216

GEAR-COMP,OIL PUMP

13216-0878

$120.53

16082

PUMP-ASSY-OIL

16082-0727

$177.13

16142

COVER-PUMP

16142-0713

$44.51

16154

ROTOR-PUMP

16154-0714

$36.37

49065

FILTER-OIL

49065-1058

$10.11

52010

ELEMENT-OIL FILTER

52010-1053

$7.23

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.51

92055

RING-O,OD=13

92055-074

$6.82

92055A

RING-O,52.6X2.4

92055-1577

$3.72

92144

SPRING

92144-1761

$3.69

92153

BOLT,6X16

92153-0695

$2.47

92200

WASHER,8.5X12X1

92200-0890

$3.19

220

SCREW-PAN-CROS,6X10

220AA0610

$2.58

220A

SCREW-PAN-CROS,6X25

220AA0625

$2.27

220B

SCREW-PAN-CROS,6X30

220AA0630

$2.92

482

CIRCLIP-TYPE-E,6MM

482J6000

$0.67

670

O RING,10MM

670D2010

$1.63
