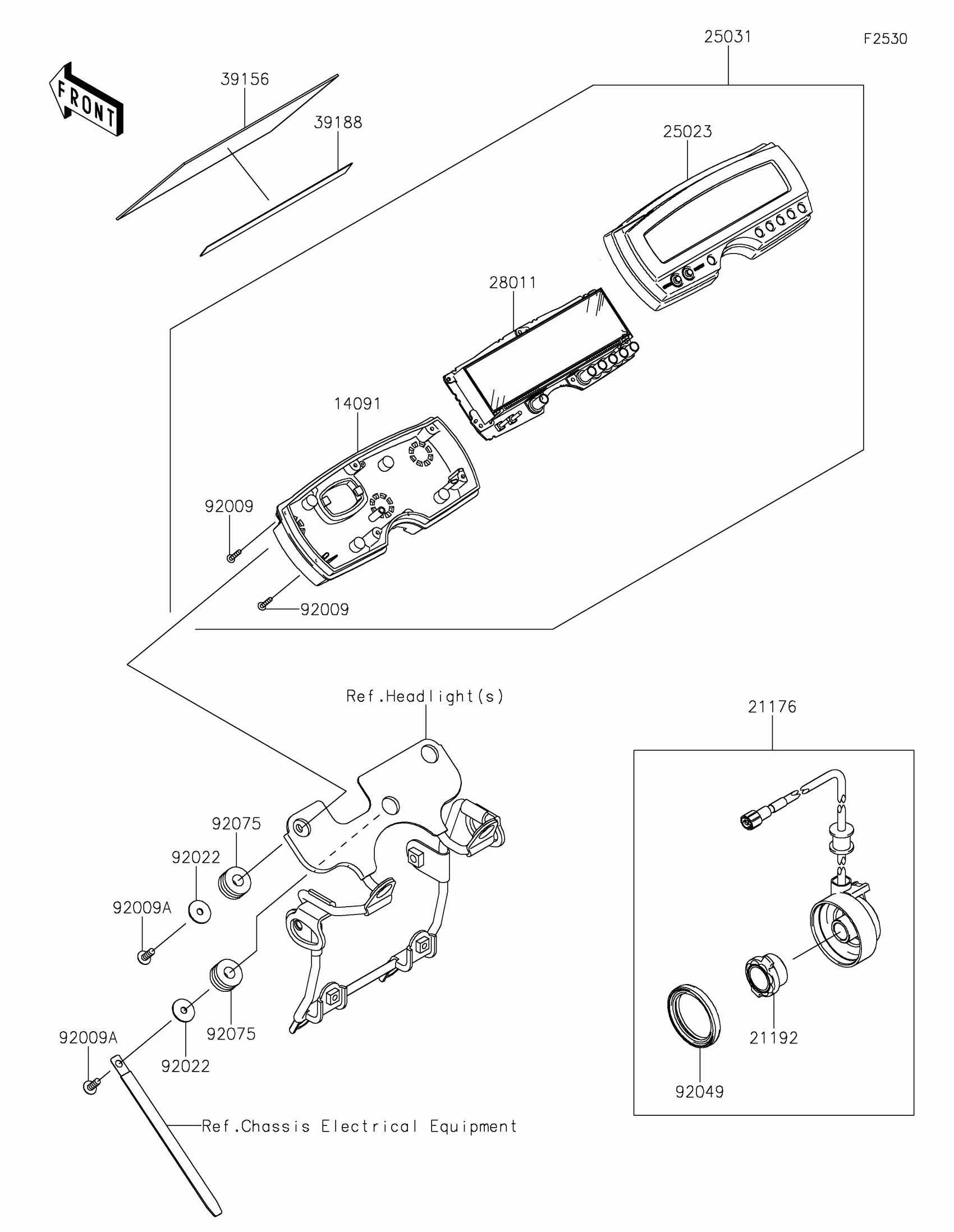

Kawasaki KLX®250 Meter(s) Diagram

Description

Price

14091

COVER,METER,LWR

14091-0874

$235.90

21176

SENSOR,SPEED

21176-0757

$421.89

21192

MAGNET,SPEED SENSOR

21192-0004

$36.81

25023

COVER-METER CASE,UPP

25023-0035

$150.40

25031

METER-ASSY,LCD

25031-0170

$701.32

28011

METER,LCD

28011-0105

$298.50

39156

PAD,HEAD LAMP

39156-0478

$11.07

39188

TAPE

39188-0012

$8.19

92009

SCREW,TAPPING,3X16

92009-1164

$2.76

92009A

SCREW,TAPPING,5X14

92009-1197

$3.04

92022

WASHER,5.5X20X1.2

92022-104

$3.29

92049

SEAL-OIL,METER GEAR CASE

92049-1172

$16.81

92075

DAMPER,10X24X12

92075-1690

$3.81
