Description

Price

11054

BRACKET,REFLECTOR,FR,LH

11054-0367

$11.42

11054A

BRACKET,REFLECTOR,FR,RH

11054-0368

$11.42

14091

COVER,SIDE STAND SWITCH

14091-1553

$7.47

21007

ROTOR,LOCK,TANK CAP

21007-5040

$56.30

27005

SWITCH-ASSY-IGNITION

27005-0046

$155.77

27008

KEY-LOCK,BLANK

27008-1170

$14.13

27010

SWITCH,SIDE STAND

27010-0097

$119.84

27010A

SWITCH,REAR BRAKE

27010-1489

$42.42

27016

LOCK-ASSY,HELMET

27016-5207

$74.62

27045

SWITCH-ASSY

27045-5383

$232.63

28012

REFLECTOR-REFLEX

28012-0002

$22.37

28012A

REFLECTOR-REFLEX,FR

28012-016

$21.56

28012B

REFLECTOR-REFLEX

28012-1088

$20.82

46123

SPRING-COMP,REAR BRAKE SWITCH

46123-0008

$5.12

92002

BOLT,FLANGED,6X25

92002-1582

$4.17

92009

SCREW,6X30

92009-1753

$3.68

92015

NUT,FLANGED,5MM

92015-1259

$3.12

92143

COLLAR

92143-1331

$3.14

92153

BOLT,TORX,6X16

92153-0967

$2.15

92210

NUT,FLANGED,5MM

92210-0007

$2.20

411

WASHER-PLAIN,6MM

411AA0600

$2.39

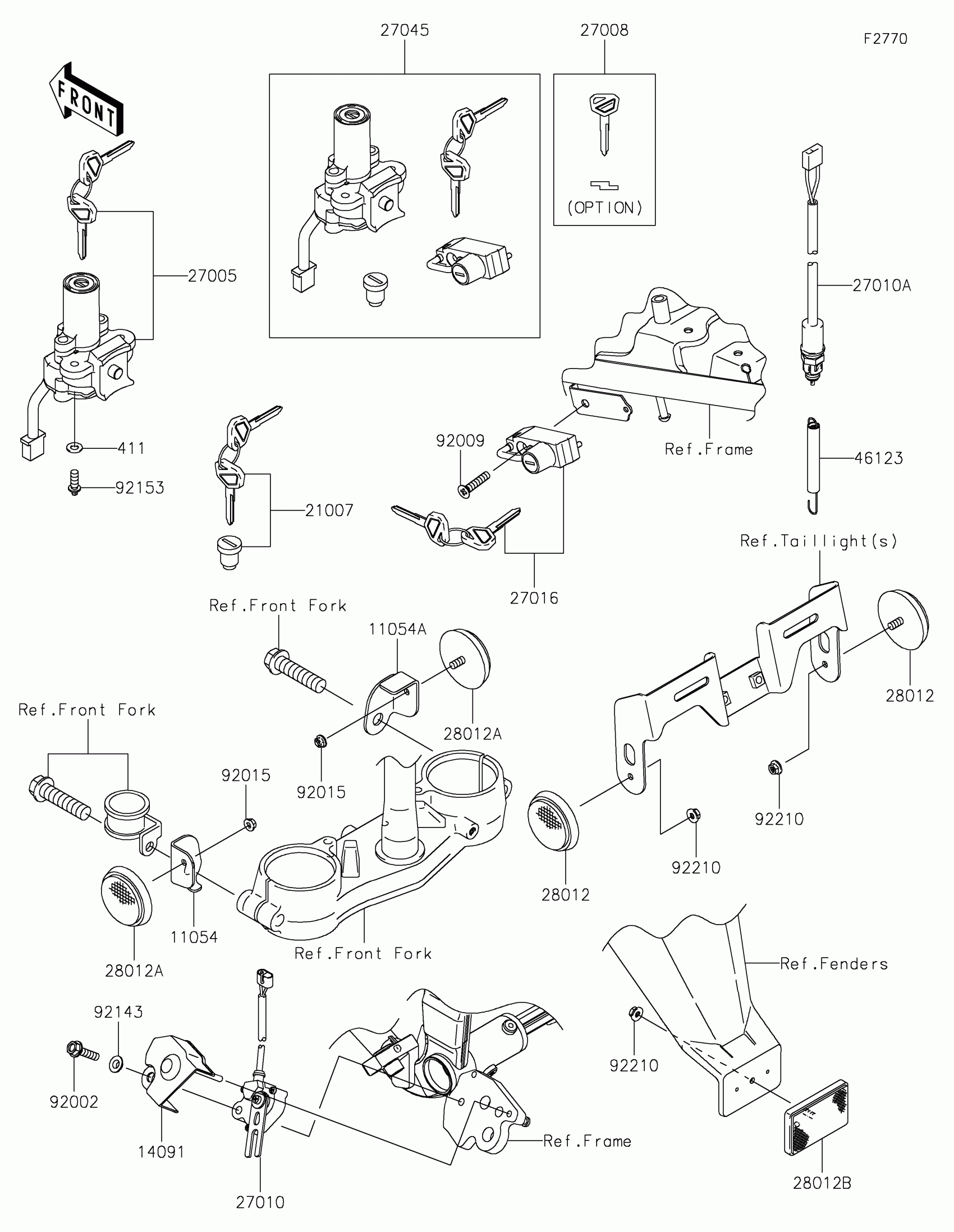

Kawasaki KLX®250 Ignition Switch Diagram
