Description

Price

13280

HOLDER,CLUTCH LEVER

13280-0105

$33.17

27010

SWITCH,CLUTCH,BLACK

27010-1094

$25.31

46003A

HANDLE,P.SILVER

46003-0164-458

$123.33

46012

HOLDER-HANDLE,UPP,F.S.BLACK

46012-0010-18R

$60.54

46019

GRIP-ASSY,THROTTLE

46019-0026

$34.53

46075

GRIP,LH

46075-0082

$25.75

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0094

$62.21

46091

HOUSING-ASSY-CONTROL,LH

46091-0163

$150.00

46091A

HOUSING-ASSY-CONTROL,RH

46091-0355

$90.83

46092

LEVER-GRIP,CLUTCH

46092-0050

$4.86

56001

MIRROR-ASSY

56001-1285

$64.69

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

$12.39

92015

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

$7.54

92151

BOLT,LEVER SET

92151-1986

$4.67

92153

BOLT,FLANGED,8X30

92153-1519

$7.27

92154

BOLT,UPSET,6X22

92154-1422

$4.17

92210

NUT,LOCK,6MM

92210-0006

$1.76

220

SCREW-PAN-CROS,5X25

220AB0525

$2.66

220A

SCREW-PAN-CROS,5X40

220AB0540

$1.49

221

SCREW-CSK-CROS,3X16

221AB0316

$3.24

410

WASHER-PLAIN-SMALL,6MM

410AB0600

$0.68

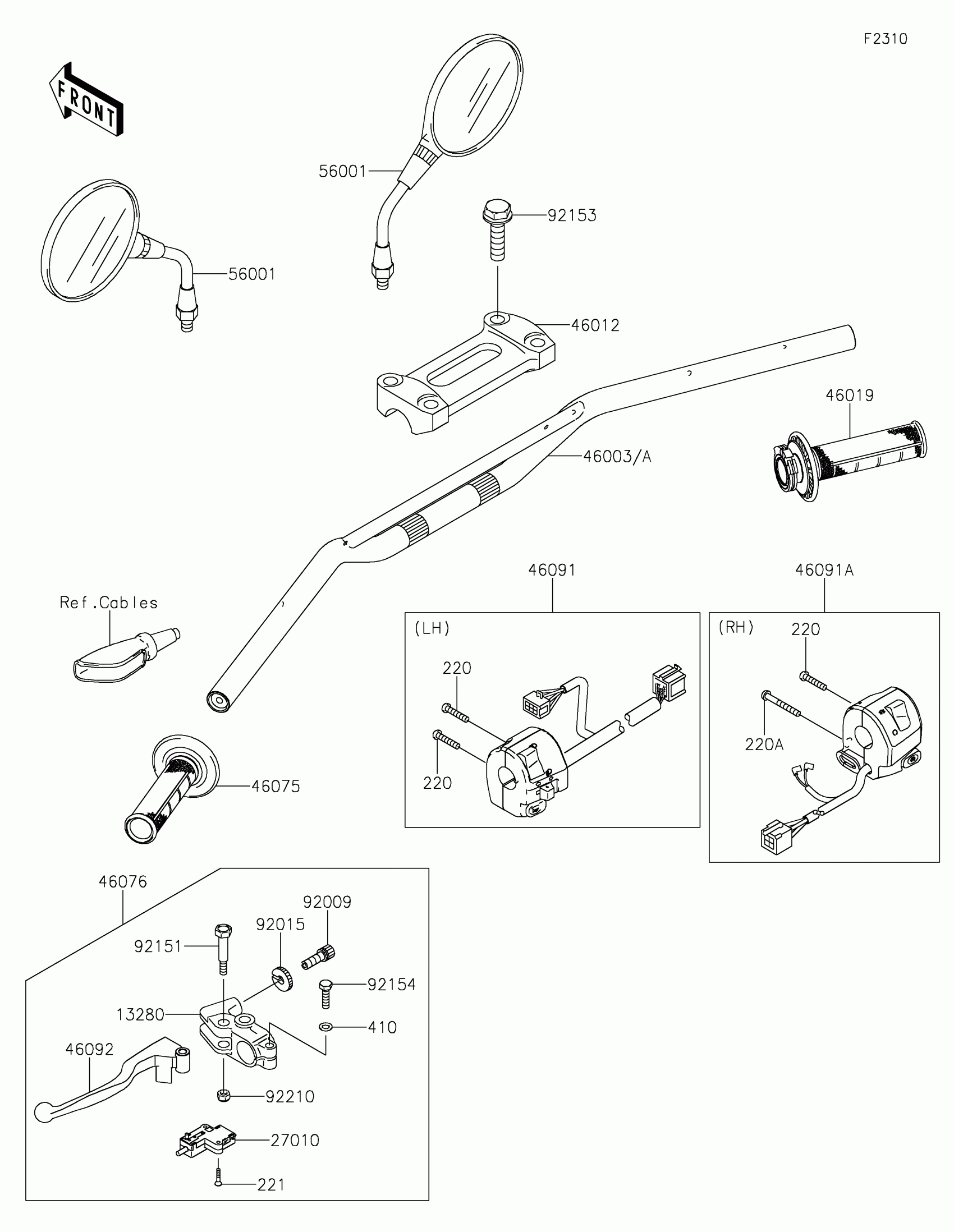

Kawasaki KLX®250 Handlebar Diagram
