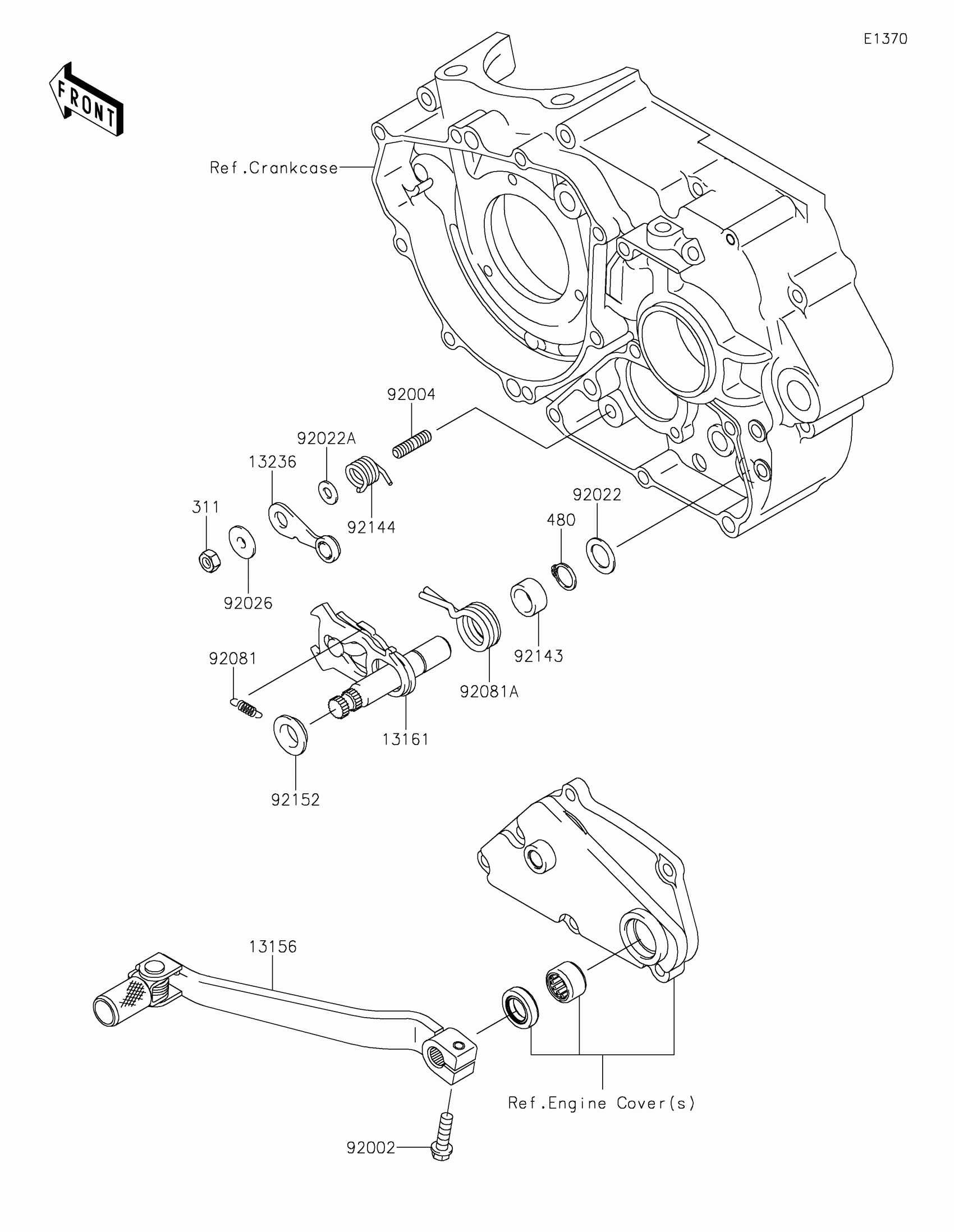

Kawasaki KLX®250 Gear Change Mechanism Diagram

Description

Price

13156

LEVER-CHANGE,PEDAL

13156-1480

$53.51

13161

LEVER-COMP-CHANGE SHAFT

13161-1214

$66.06

13236

LEVER-COMP,NEUTRAL POSITION

13236-1209

$18.36

92002

BOLT,6X20

92002-1237

$3.43

92004

STUD,6X12

92004-0032

$1.54

92022

WASHER,13.3X20X1

92022-1496

$3.12

92022A

WASHER,6X12.8X1.2

92022-1827

$3.72

92026

SPACER

92026-1217

$4.37

92081

SPRING,CHANGE LEVER

92081-076

$4.34

92081A

SPRING,TENSION

92081-1129

$7.48

92143

COLLAR

92143-1148

$3.72

92144

SPRING

92144-1695

$7.47

92152

COLLAR

92152-1075

$3.33

311

NUT-HEX,6MM

311BA0600

$1.64

480

CIRCLIP-TYPE-C,13MM

480J1300

$3.12
