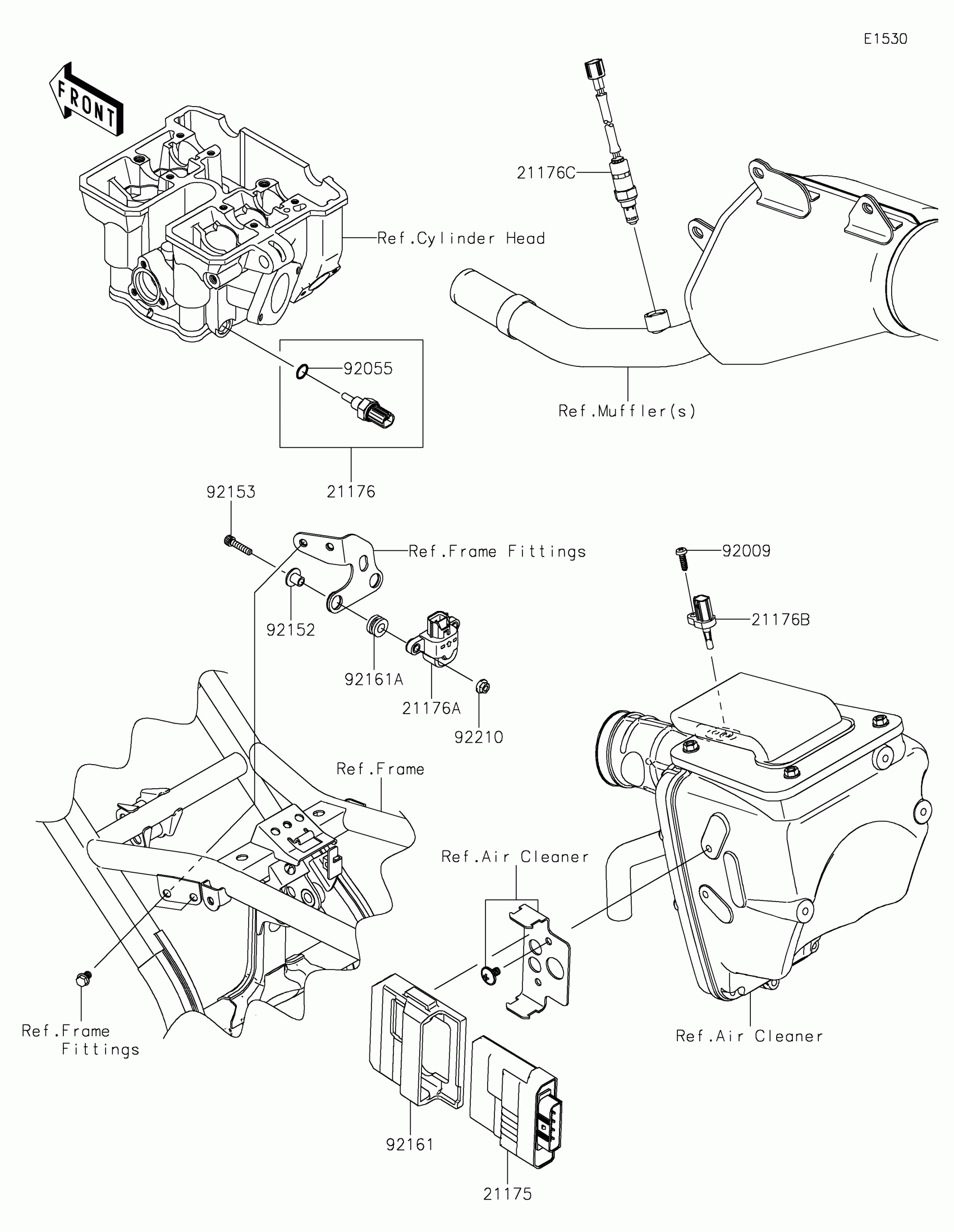

Kawasaki KLX®250 Fuel Injection Diagram

Description

Price

21175

CONTROL UNIT-ELECTRONIC

21175-1294

$705.45

21176

SENSOR,WATER TEMP

21176-0009

$63.44

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$79.06

21176B

SENSOR,AIR TEMPERATURE

21176-0048

$24.07

21176C

SENSOR,OXYGEN

21176-0094

$226.22

92009

SCREW,TAPPING,5X16

92009-1984

$2.12

92055

RING-O,9.5X1.9

92055-0016

$7.06

92152

COLLAR

92152-0134

$7.54

92153

BOLT,SOCKET,5X22

92153-1597

$1.81

92161

DAMPER,ECU

92161-0462

$13.42

92161A

DAMPER,8X16X8.6

92161-0685

$5.24

92210

NUT,FLANGED,5MM

92210-0007

$2.20
