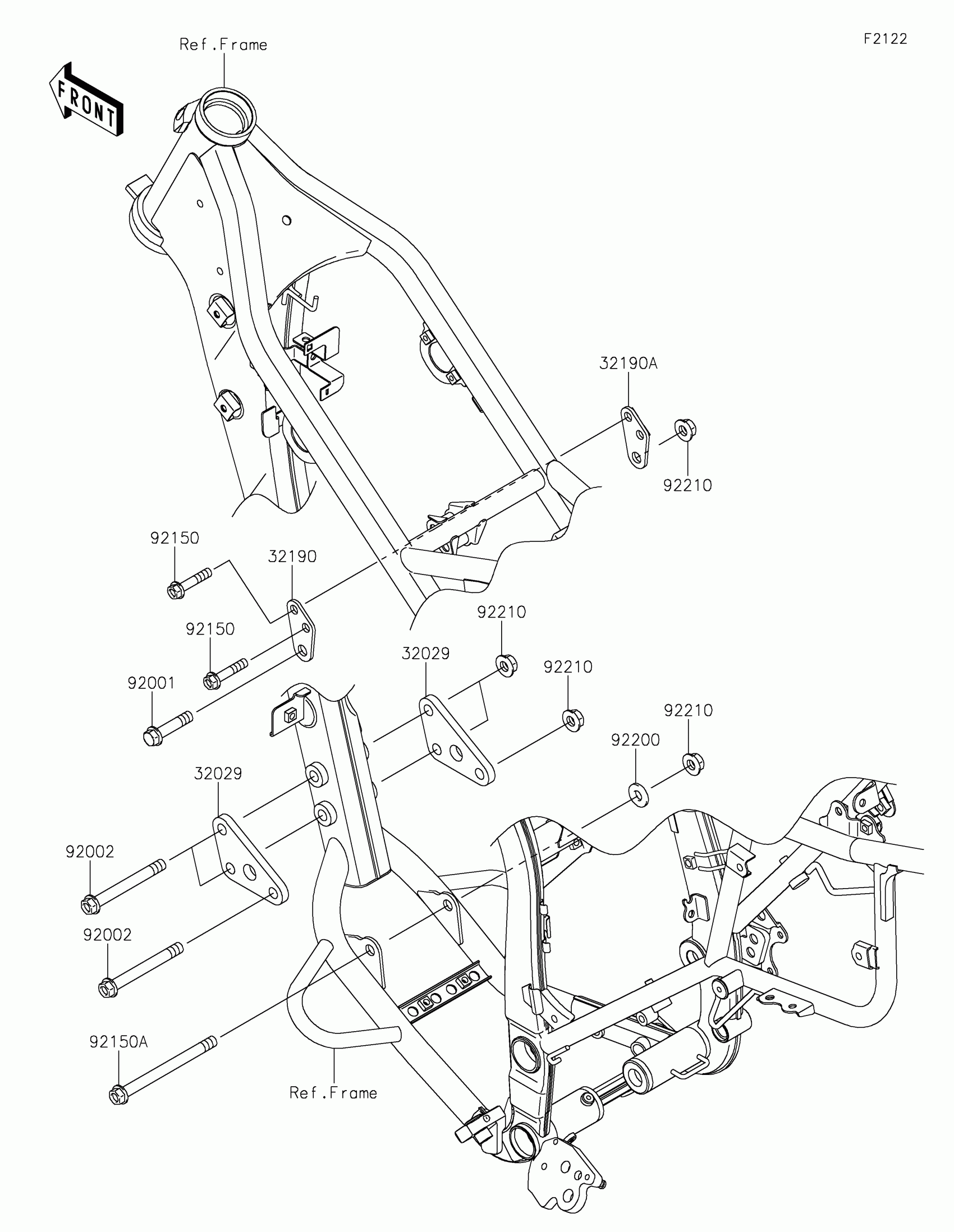

Kawasaki KLX®250 Engine Mount Diagram

#

Description
Price

32029

BRACKET-ENGINE,FR

32029-1855

$20.85

32190

BRACKET-ENGINE,HEAD,LH

32190-0416

$7.47

32190A

BRACKET-ENGINE,HEAD,RH

32190-0417

$7.47

92001

BOLT,FLANGED,10X44

92001-1499

$4.18

92002

BOLT,10X90

92002-1674

$16.78

92150

BOLT,FLANGED,8X40

92150-1168

$2.68

92150A

BOLT,FLANGED,10X120

92150-1642

$16.78

92200

WASHER,10.2X23X2.5

92200-0211

$2.68

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$7.83
