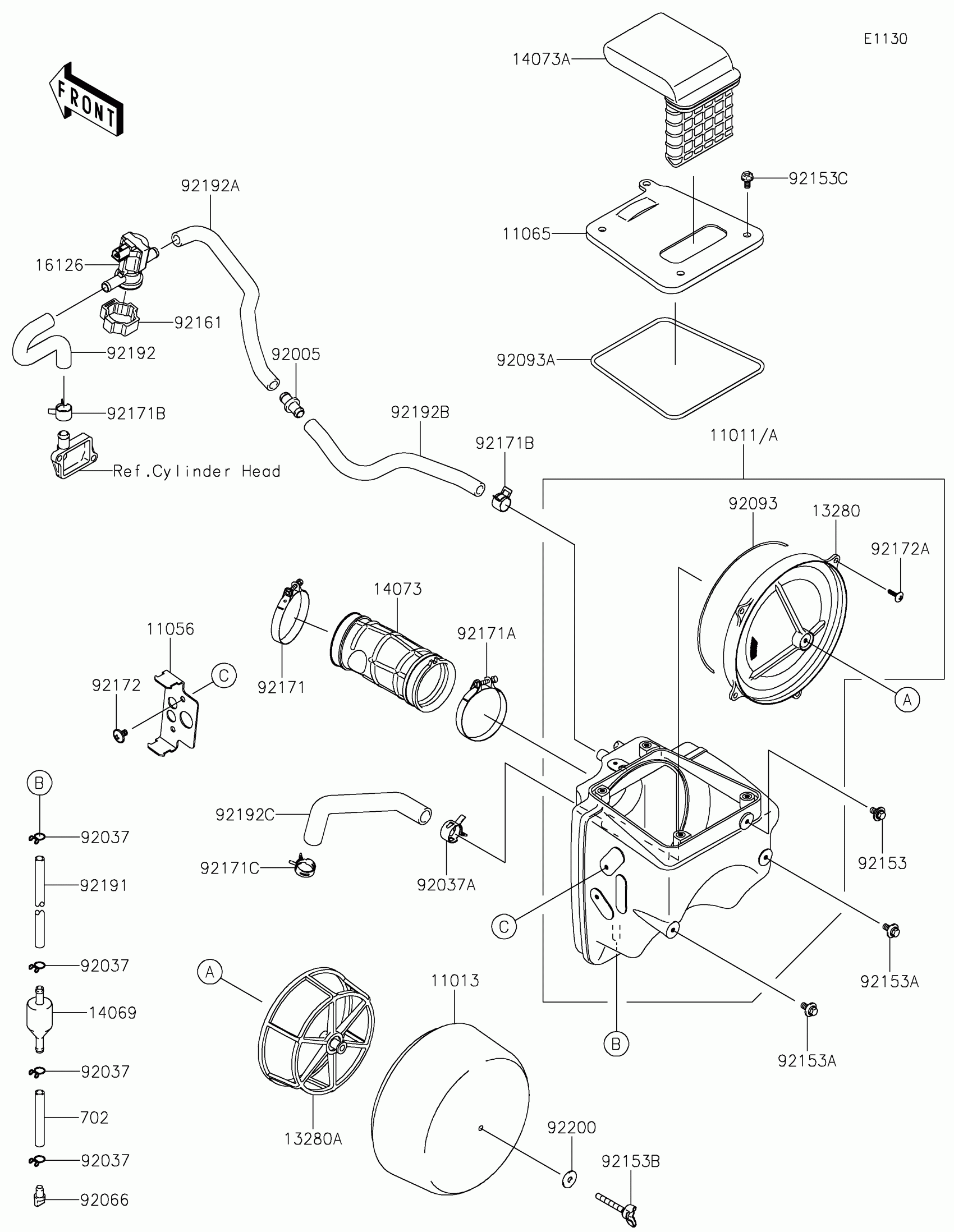

Kawasaki KLX®250 Air Cleaner Diagram

#

Description
Price

11011

CASE-AIR FILTER

11011-0114

$139.07

11011A

CASE-AIR FILTER

11011-0139

$138.92

11013

ELEMENT-AIR FILTER

11013-0030

$44.27

11056

BRACKET,ECU

11056-1515

$10.76

11065

CAP,AIR FILTER

11065-0232

$30.79

13280

HOLDER

13280-0252

$53.54

13280A

HOLDER

13280-0263

$55.87

14069

BREATHER

14069-1051

$7.76

14073

DUCT,A/C-THROBO

14073-0158

$41.92

14073A

DUCT,INTAKE

14073-0185

$54.09

16126

VALVE,AIR SWITCHING

16126-0033

$86.26

92005

FITTING

92005-1379

$4.66

92037

CLAMP,TUBE

92037-147

$5.61

92037A

CLAMP

92037-1860

Unavailable

92066

PLUG,DRAIN

92066-1211

$6.48

92093

SEAL,3X520

92093-0101

$29.01

92093A

SEAL,4X535

92093-0102

$12.44

92153

BOLT,6X12

92153-0503

$1.98

92153A

BOLT,FLANGED,6X14

92153-0936

$2.09

92153B

BOLT,WING,6X45

92153-1921

$7.76

92153C

BOLT,FLANGED,6X12

92153-1922

$1.81

92161

DAMPER,ASWV

92161-0499

$7.15

92171

CLAMP

92171-0643

$11.75

92171A

CLAMP,62MM

92171-1687

$8.25

92171B

CLAMP

92171-1888

$2.58

92171C

CLAMP

92171-1890

$9.10

92172

SCREW,6X10

92172-0005

$1.73

92172A

SCREW,5X14

92172-0324

$3.27

92191

TUBE,7X10X300

92191-1556

$10.39

92192

TUBE,CAP-ASWV

92192-0433

$23.44

92192A

TUBE,ASWV-FITTING

92192-0434

$29.08

92192B

TUBE,FITTING-A/C

92192-0435

$29.73

92192C

TUBE,BREATHER

92192-0594

$9.63

92200

WASHER,6.5X20X1.6

92200-0411

$3.27

702

TUBE-RUBBER,7X10X70

702A0770

$5.37
