2023 Kawasaki KLX®230SM Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2023 Kawasaki KLX®230SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

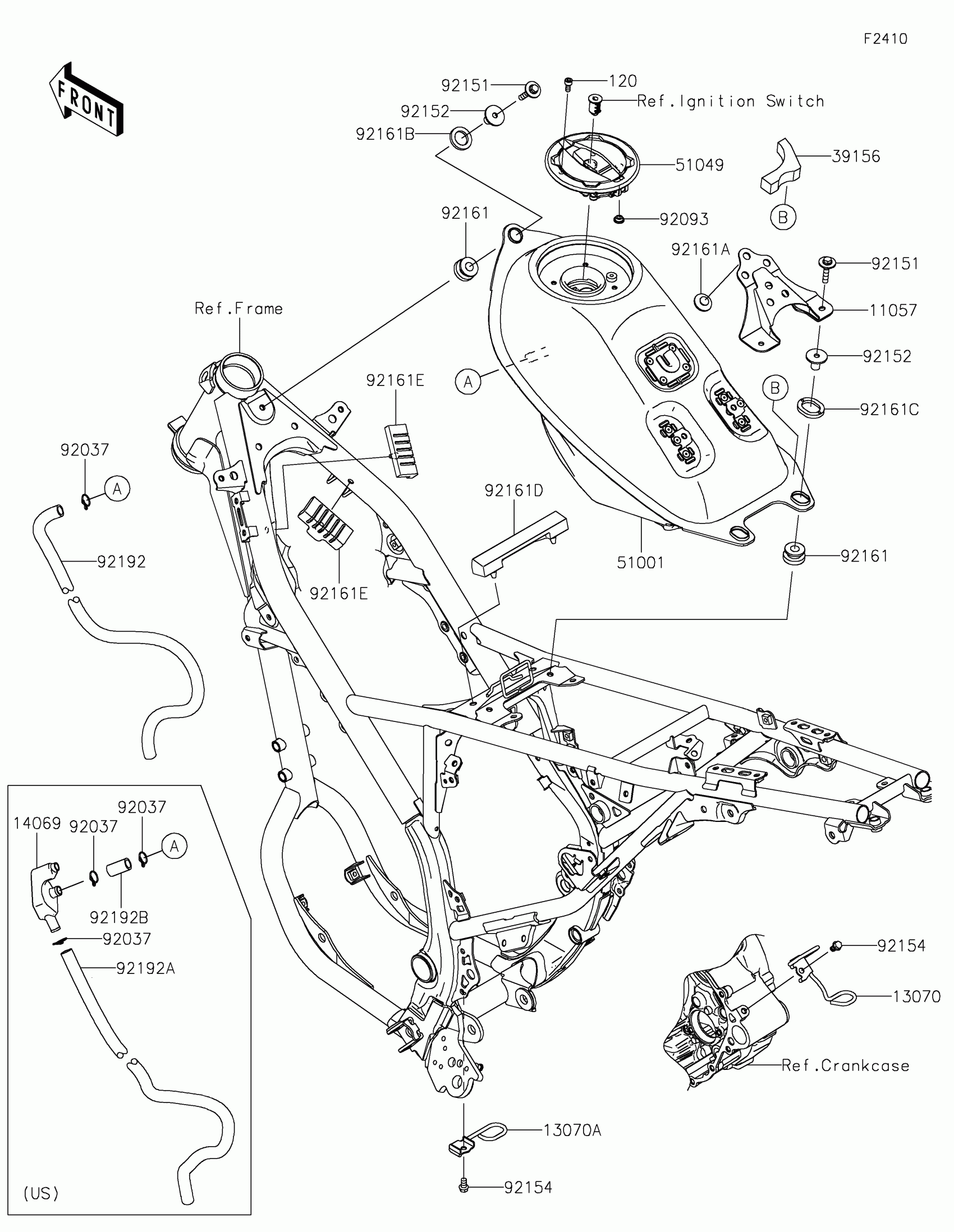

2023 Kawasaki KLX®230SM Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-3910

1
Out of stock

13070

GUIDE

13070-0909

1
Out of stock

13070A

GUIDE

13070-0912

1
Out of stock

14069

BREATHER,FUEL TANK

14069-0033

1
Out of stock

39156

PAD

39156-2463

1
Out of stock

51001

TANK-COMP-FUEL,F.S.BLACK

51001-0902-25Q

1
Out of stock

51049

CAP-TANK

51049-0765

1
Out of stock

92037

CLAMP,12.5MM

92037-1271

1
Out of stock

92093

SEAL,FUEL TANK CAP

92093-1030

1
Out of stock

92151

BOLT,FLANGED,6X30

92151-1105

1
Out of stock

92152

COLLAR,6.8X10X16

92152-2666

1
Out of stock

92154

BOLT,FLANGED,6X10

92154-0459

1
Out of stock

92161

DAMPER,FUEL TANK,FR

92161-1392

1
Out of stock

92161A

DAMPER,8X22X10

92161-1685

1

$0.86

In stock

92161B

DAMPER

92161-2216

1
Out of stock

92161C

DAMPER

92161-2217

1
Out of stock

92161D

DAMPER

92161-2231

1
Out of stock

92161E

DAMPER

92161-2286

1
Out of stock

92192

TUBE,DRAIN

92192-1949

1
Out of stock

92192A

TUBE,10X14X870

92192-1964

1
Out of stock

92192B

TUBE,10X14X26

92192-1965

1
Out of stock

120

BOLT-SOCKET,5X12

120CA0512

1
Out of stock

92037

CLAMP,12.5MM

92037-1271

1
Out of stock
