2023 Kawasaki KLX®230SM Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2023 Kawasaki KLX®230SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

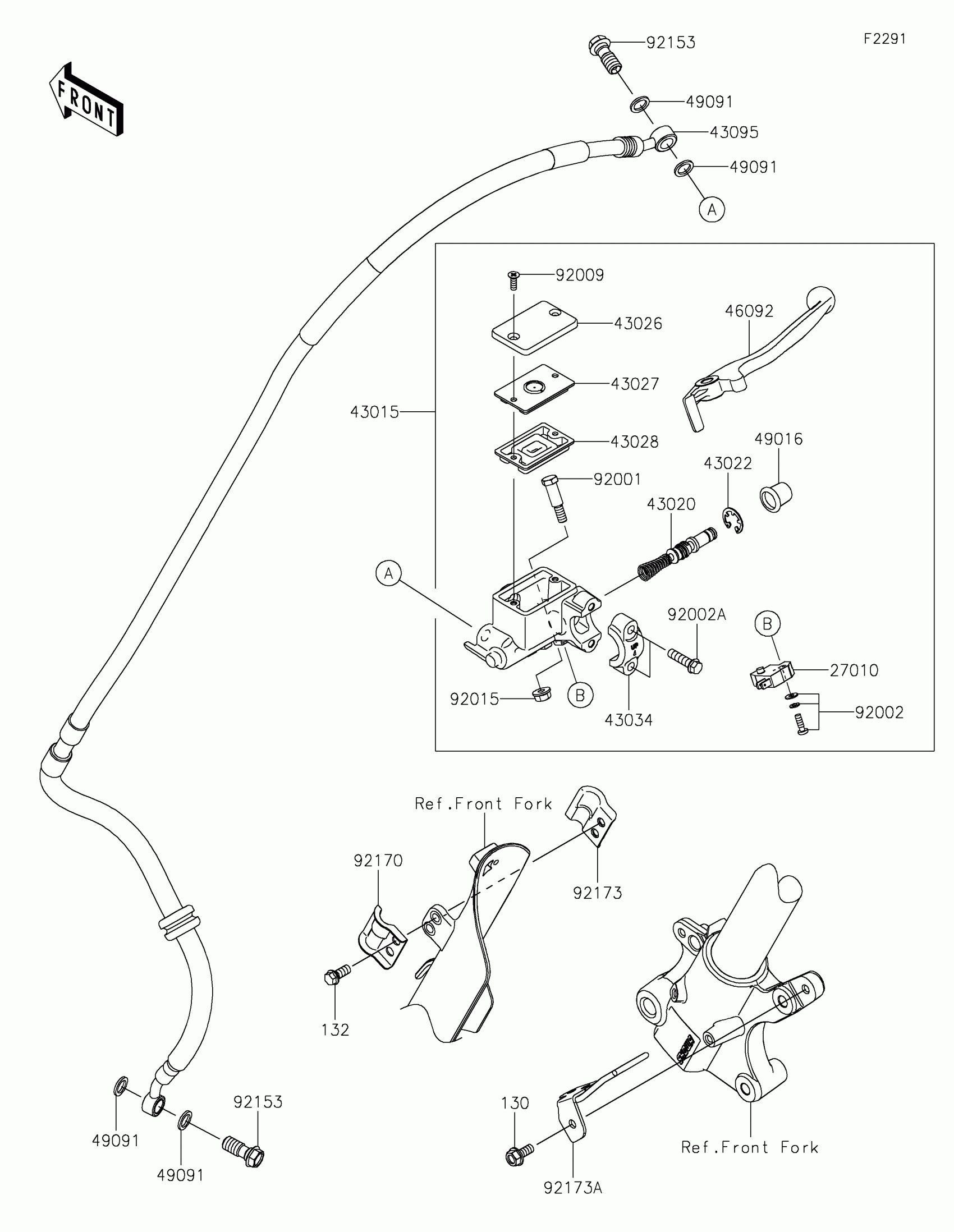

2023 Kawasaki KLX®230SM Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

27010

SWITCH,BRAKE

27010-0873

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-0741

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-0034

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-0004

1
Out of stock

43026

CAP-BRAKE

43026-1082

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-1057

1
Out of stock

43028

DIAPHRAGM

43028-1061

1
Out of stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

1
Out of stock

43095

HOSE-BRAKE,M/CYLINDER-CALIPER

43095-1846

1
Out of stock

46092

LEVER-GRIP,FRONT BRAKE

46092-0044

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92001

BOLT,FRONT BRAKE LEVER

92001-1728

1
Out of stock

92002

BOLT,SCREW,4X12

92002-1323

1
Out of stock

92002A

BOLT

92002-1894

1
Out of stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92153

BOLT,OIL,L=23

92153-0029

1
Out of stock

92170

1

$7.25

In stock

92173

CLAMP,BRAKE HOSE,INSIDE

92173-1785

1
Out of stock

92173A

CLAMP,BRAKE HOSE,CALIPER

92173-2505

1
Out of stock

130

BOLT-FLANGED,6X14

130BC0614

1
Out of stock

132

1

$1.31

In stock
