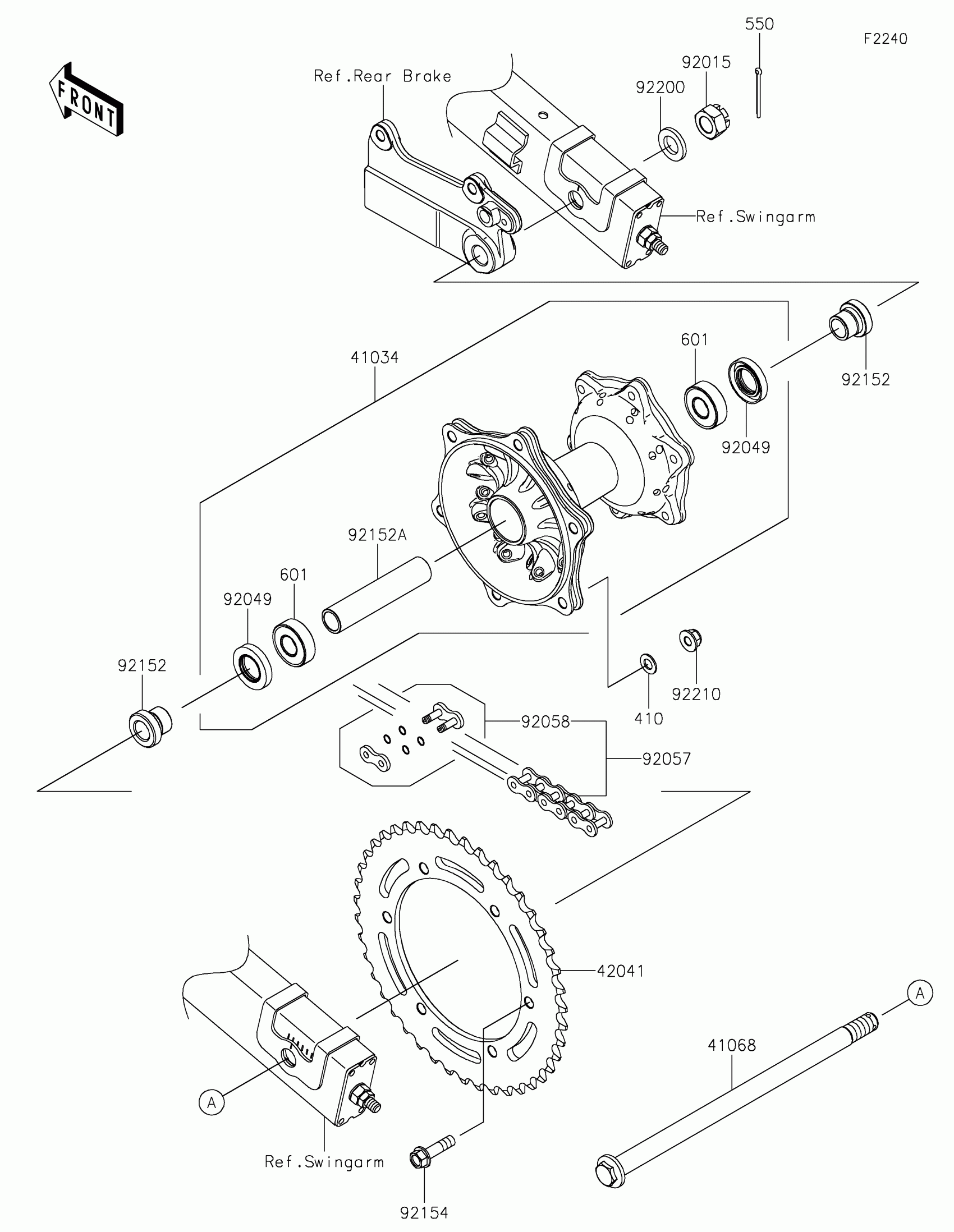

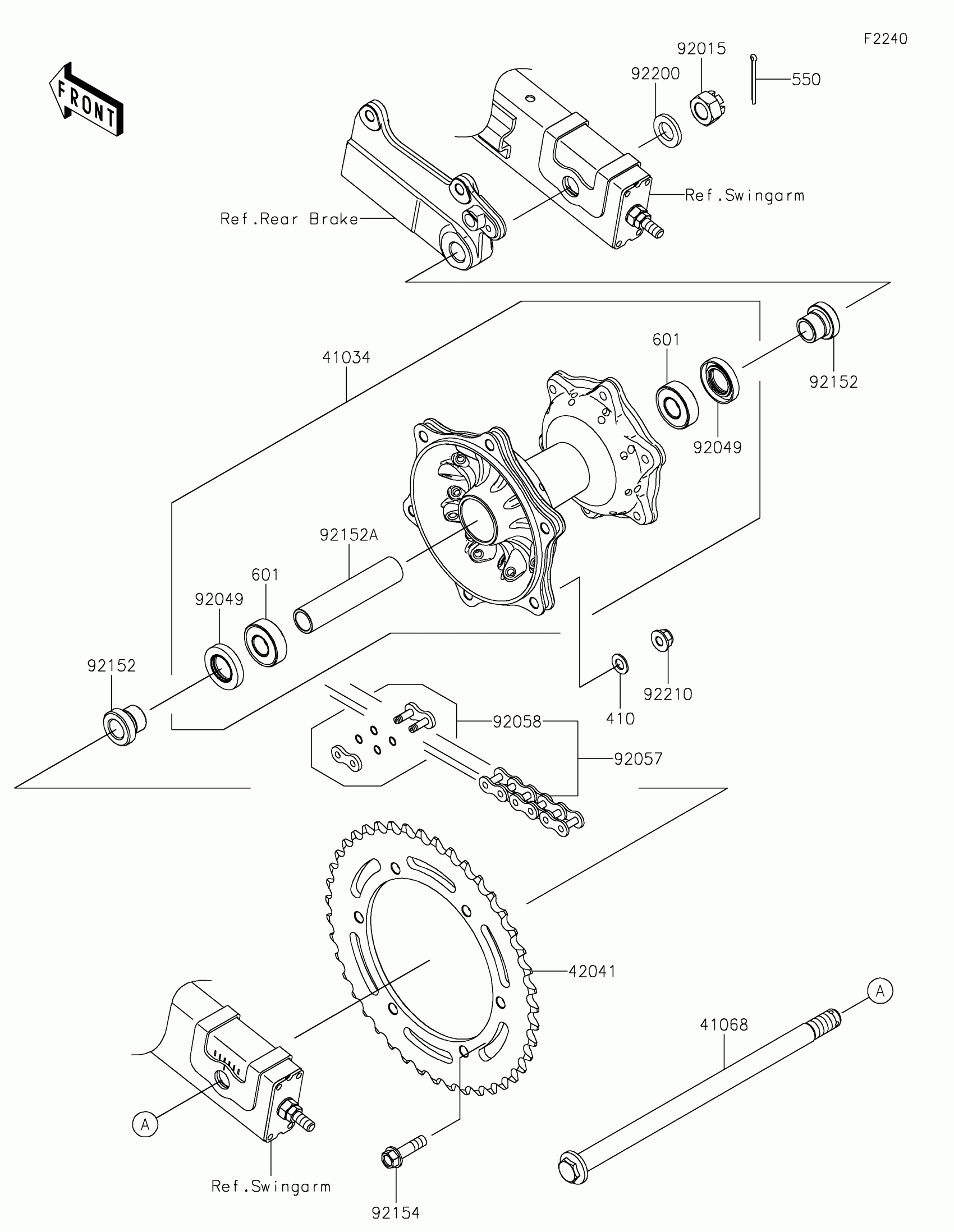

Kawasaki KLX®230SM ABS Rear Hub Diagram

Description

Price

41034

DRUM-ASSY,RR

41034-0612

$524.99

41068

AXLE,RR,15X275

41068-0648

Unavailable

42041

SPROCKET-HUB,43T

42041-0190

$84.46

92015

NUT,CASTLE,14MM

92015-1765

$7.80

92049

SEAL-OIL

92049-0114

$12.58

92057

CHAIN,DRIVE,520VF2X106L

92057-0800

$356.50

92058

JOINT-CHAIN

92058-0069

$11.34

92152

COLLAR

92152-2545

$15.63

92152A

COLLAR,15.2X20X96.2

92152-2546

$23.44

92154

BOLT,FLANGED,8X30

92154-3918

$2.29

92200

WASHER,14.2X26X3.2

92200-1428

Unavailable

92210

NUT,8MM

92210-0570

$2.12

410

WASHER-PLAIN-SMALL,8MM

410AA0800

$0.84

550

PIN-COTTER,3.0X35

550AA3035

$2.29

601

BEARING-BALL

601B6202UU

$20.38
