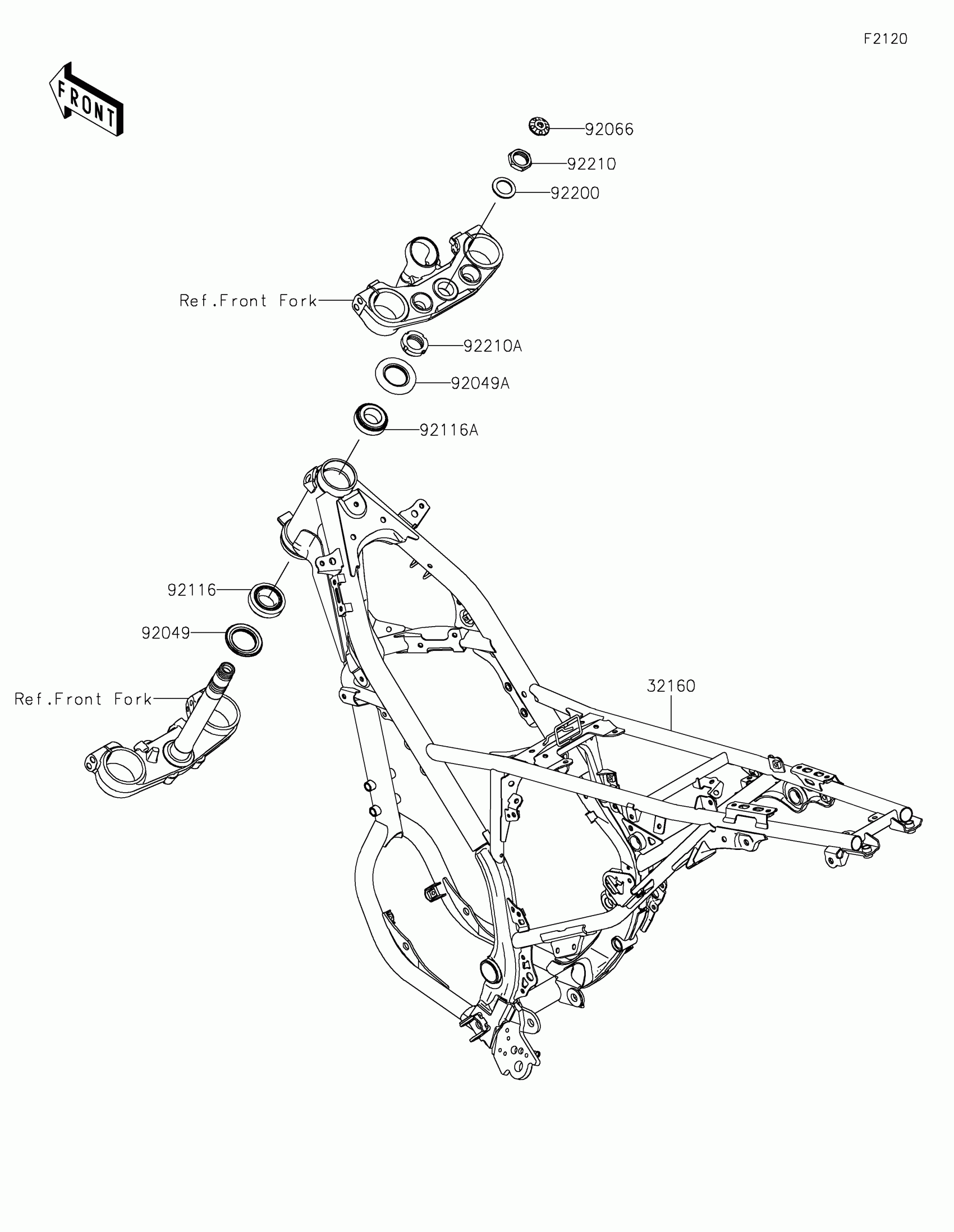

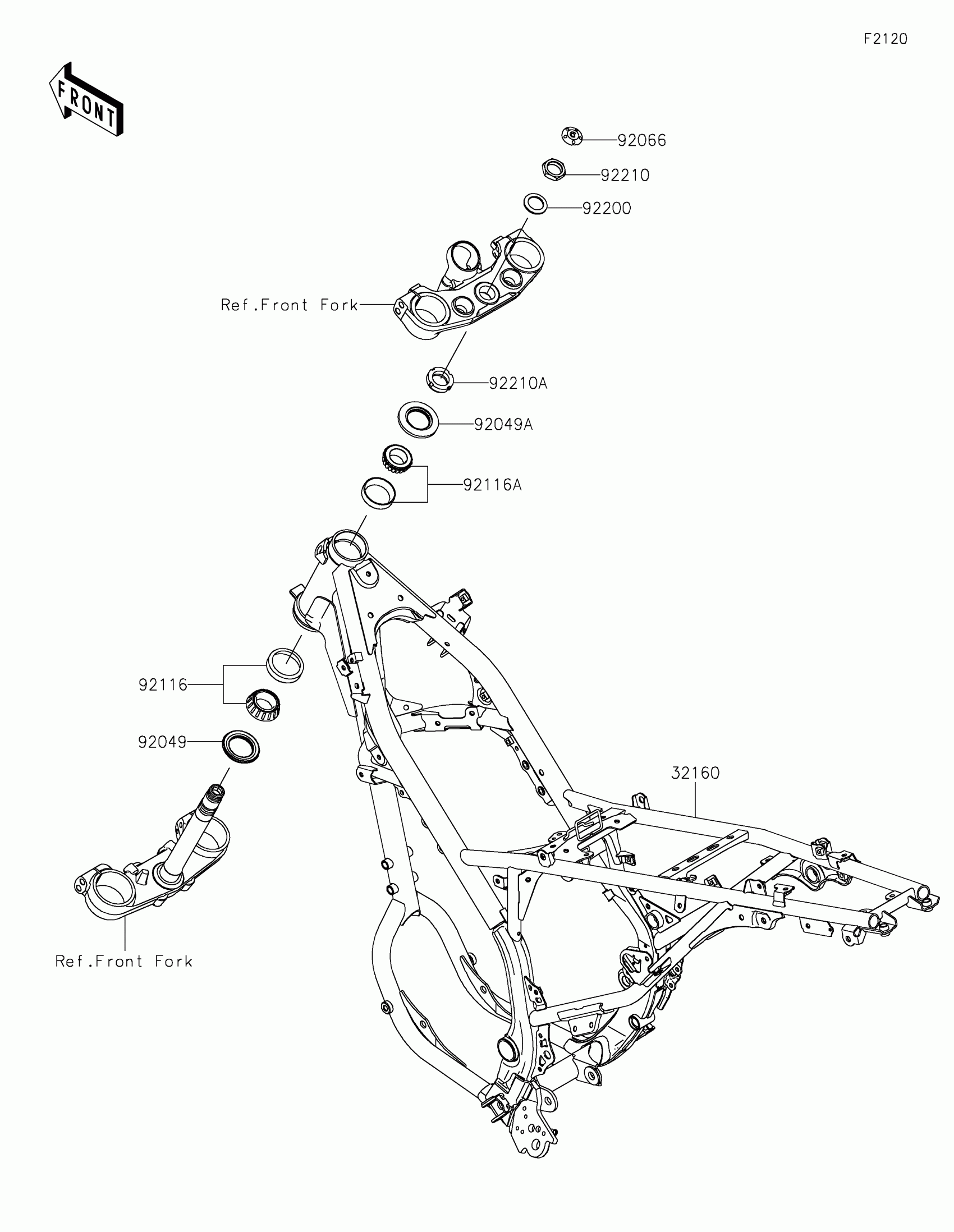

Kawasaki KLX®230SM ABS Frame Diagram

#

Description
Price

32160

FRAME-COMP,F.S.BLACK

32160-1963-18R

$1,167.47

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

$7.38

92049A

SEAL-OIL,STEERING STEM

92049-1214

$13.20

92066

PLUG

92066-0162

$4.22

92116

BEARING-ROLLER,HR320/28XJ

92116-1009

$33.21

92116A

BEARING-ROLLER,HICAP 32005JR

92116-1052

$37.01

92200

WASHER,STEERING STEM

92200-0517

$7.47

92210

NUT,STEERING STEM,22MM

92210-1521

$13.20

92210A

NUT,STEERING STEM,25MM

92210-1754

$18.66
