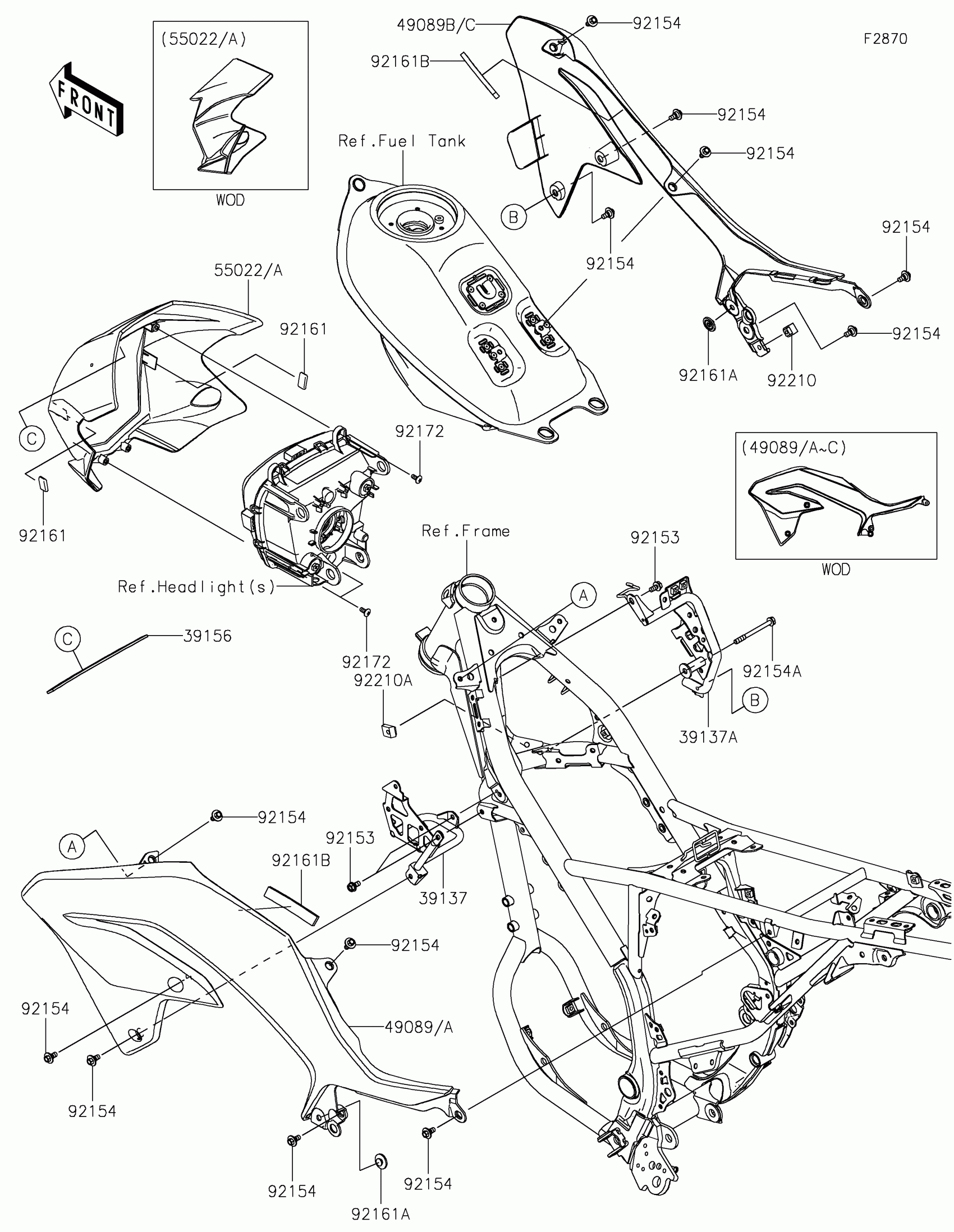

Kawasaki KLX®230S ABS Cowling Diagram

Description

Price

39137

STAY-COMP,LH,P.SILVER

39137-0704-458

$90.79

39137A

STAY-COMP,RH,P.SILVER

39137-0706-458

$115.01

39156

PAD

39156-2562

$2.27

49089

SHROUD-ENGINE,LH,L.GREEN

49089-0957-290

$58.46

49089B

SHROUD-ENGINE,RH,L.GREEN

49089-0958-290

Unavailable

55022

COVER-HEAD LAMP,B.WHITE

55022-0324-266

$61.95

92153

BOLT,FLANGED,6X12

92153-1283

$1.73

92154

BOLT,FLANGED,6X9

92154-0546

$2.84

92154A

BOLT-FLANGED,6X70

92154-4093

$4.31

92161

DAMPER,12X23

92161-1367

$0.95

92161A

DAMPER,8X22X10

92161-1685

$0.74

92161B

DAMPER,70X15X6

92161-1838

$2.59

92172

SCREW,5X12

92172-1095

Unavailable

92210

NUT,6MM

92210-0218

$1.81

92210A

NUT

92210-1771

$20.47
