2022 Kawasaki KLX®230S ABS Accessory Diagram

← All diagrams

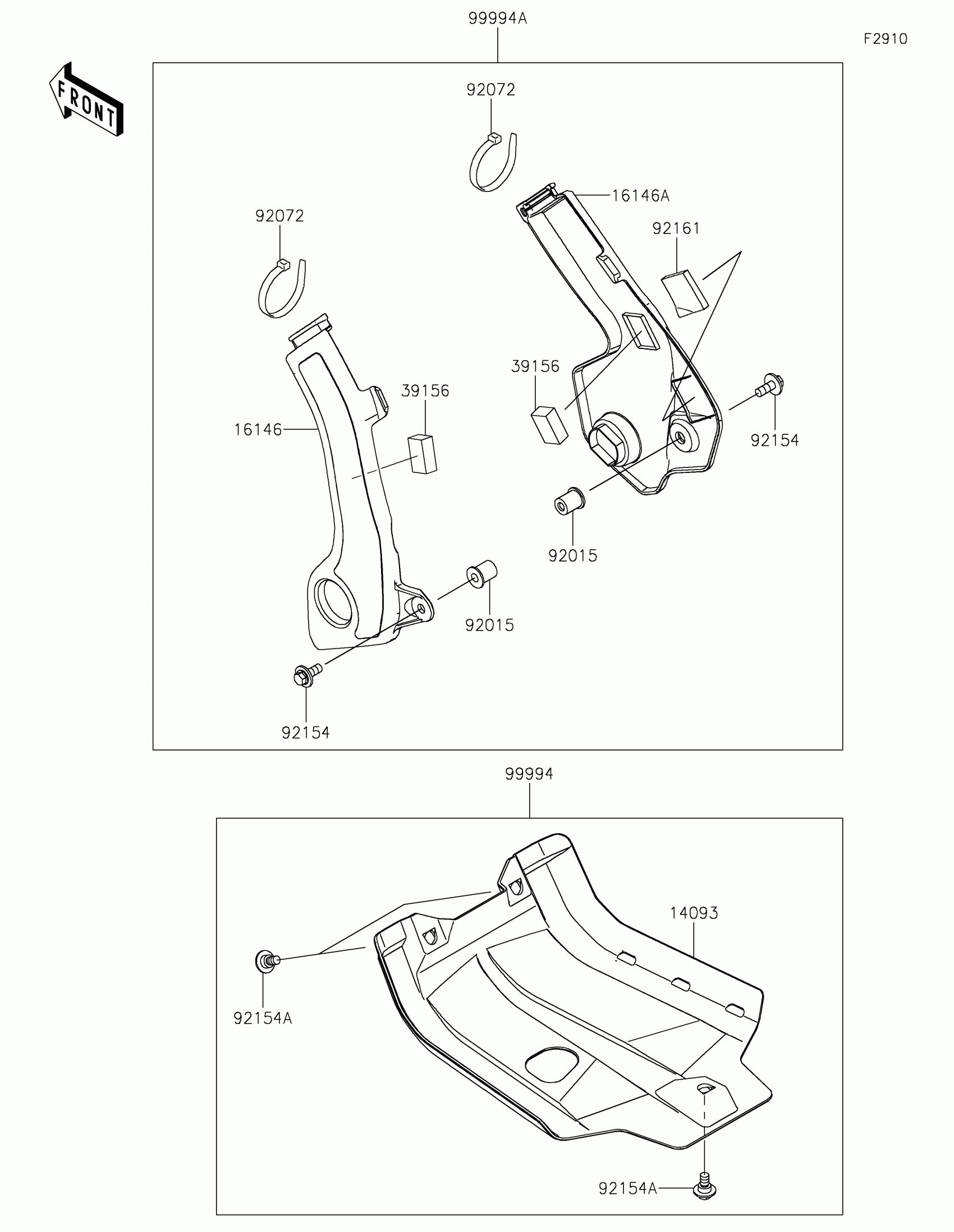

Find the part on the Accessory diagram for your 2022 Kawasaki KLX®230S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki KLX®230S ABS Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,SKID PLATE

14093-1040

1
Out of stock

16146

COVER-ASSY,FRAME,LH

16146-0867

1
Out of stock

16146A

COVER-ASSY,FRAME,RH

16146-0868

1
Out of stock

39156

PAD,15X25X10

39156-2489

1
Out of stock

92015

NUT

92015-1700

1
Out of stock

92072

BAND,L=202

92072-1195

1
Out of stock

92154

BOLT,FLANGED-SMALL,6X16

92154-1183

1
Out of stock

92154A

BOLT,FLANGED,6X9

92154-4084

1
Out of stock

92161

DAMPER

92161-1591

1

$0.93

In stock

99994

SKID PLATE

99994-1246

1
Out of stock

99994A

COVER-FRAME

99994-1466

1
Out of stock
← Stand Accessory →
