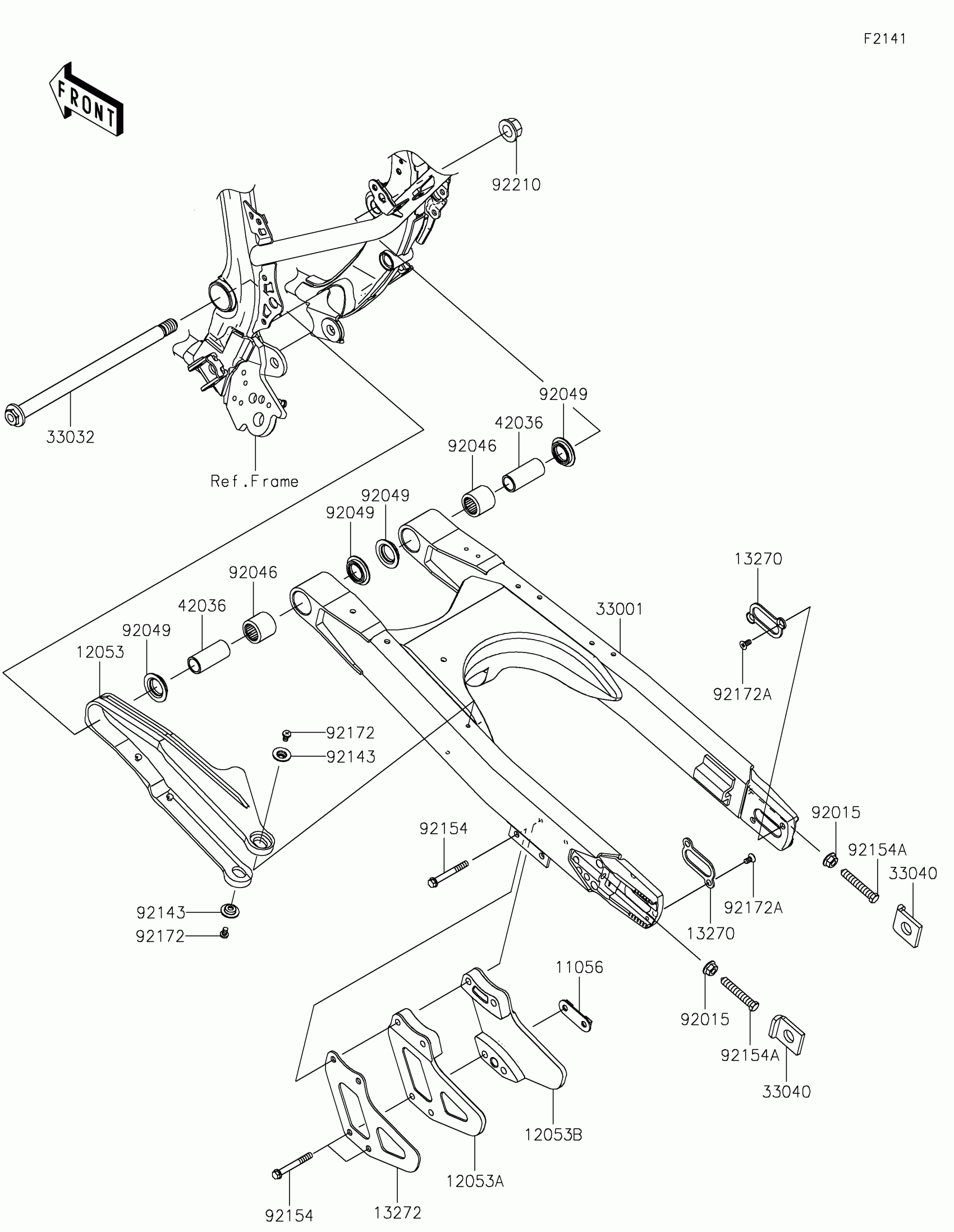

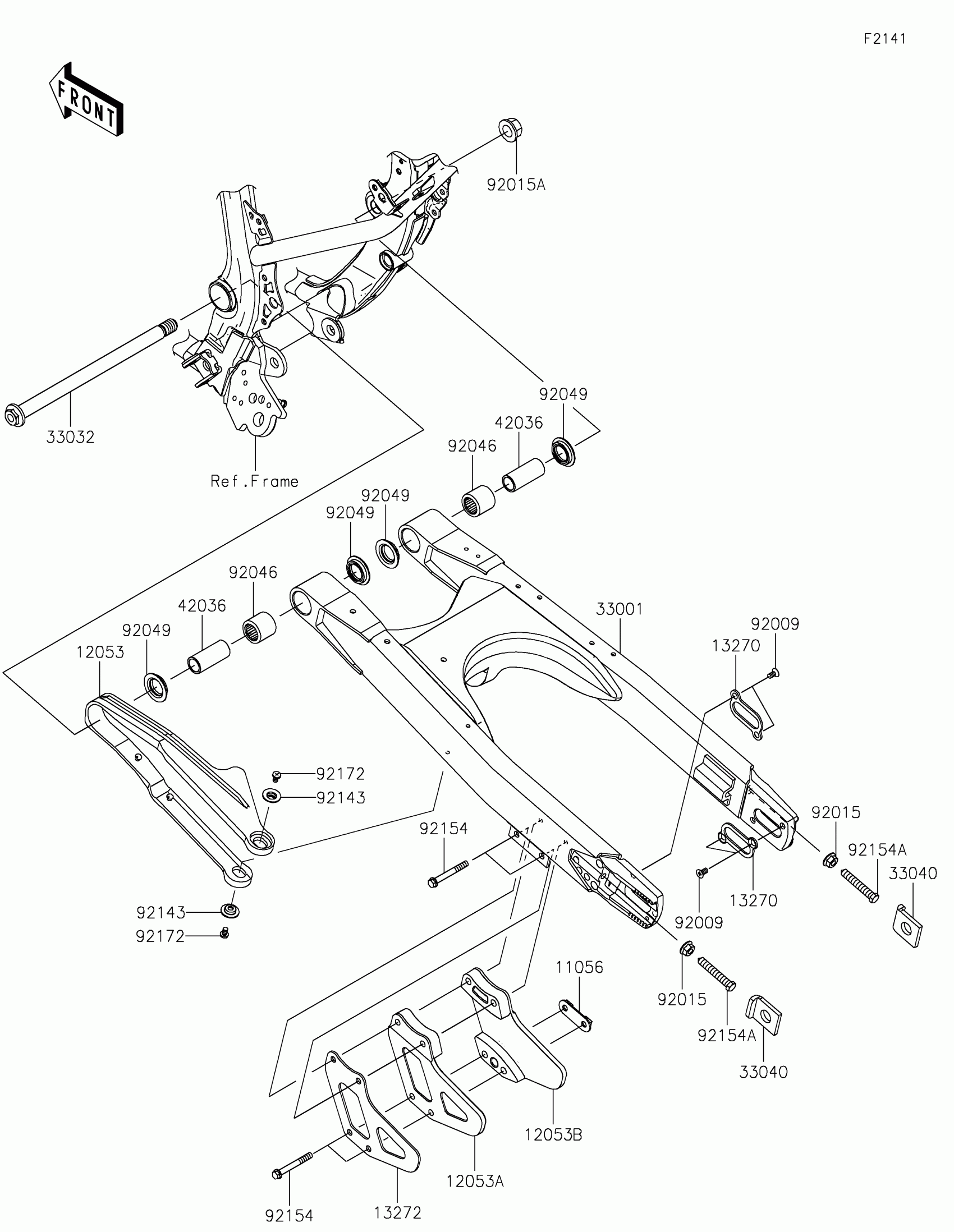

Kawasaki KLX®230R S Swingarm Diagram

Description

Price

11056

BRACKET,WITH NUT

11056-2396

$1.69

12053

GUIDE-CHAIN

12053-0267

$23.47

12053A

GUIDE-CHAIN,OUTER

12053-0268

$11.07

12053B

GUIDE-CHAIN,INNER

12053-0269

$11.07

13270

PLATE

13270-1899

$7.17

13272

PLATE,GUIDE-CHAIN

13272-2610

$14.24

33001

ARM-COMP-SWING

33001-0709

$558.70

33032

SHAFT-SWING ARM,15X243

33032-0060

$43.10

33040

ADJUSTER-CHAIN

33040-0032

$5.12

42036

SLEEVE,15X20X46

42036-0831

$14.61

92009

SCREW,5X10

92009-1828

$1.76

92015

NUT,FLANGED,8MM

92015-1014

$0.57

92015A

NUT,14MM

92015-1407

$7.54

92046

BEARING-NEEDLE,BM202726

92046-1110

$18.91

92049

SEAL-OIL

92049-0849

$7.08

92143

COLLAR

92143-1676

$4.67

92154

BOLT,FLANGED,6X50

92154-1193

$1.17

92154A

BOLT,8X46

92154-4367

$17.63

92172

SCREW,5X8

92172-0119

$1.54
