2022 Kawasaki KLX®230R S Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2022 Kawasaki KLX®230R S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

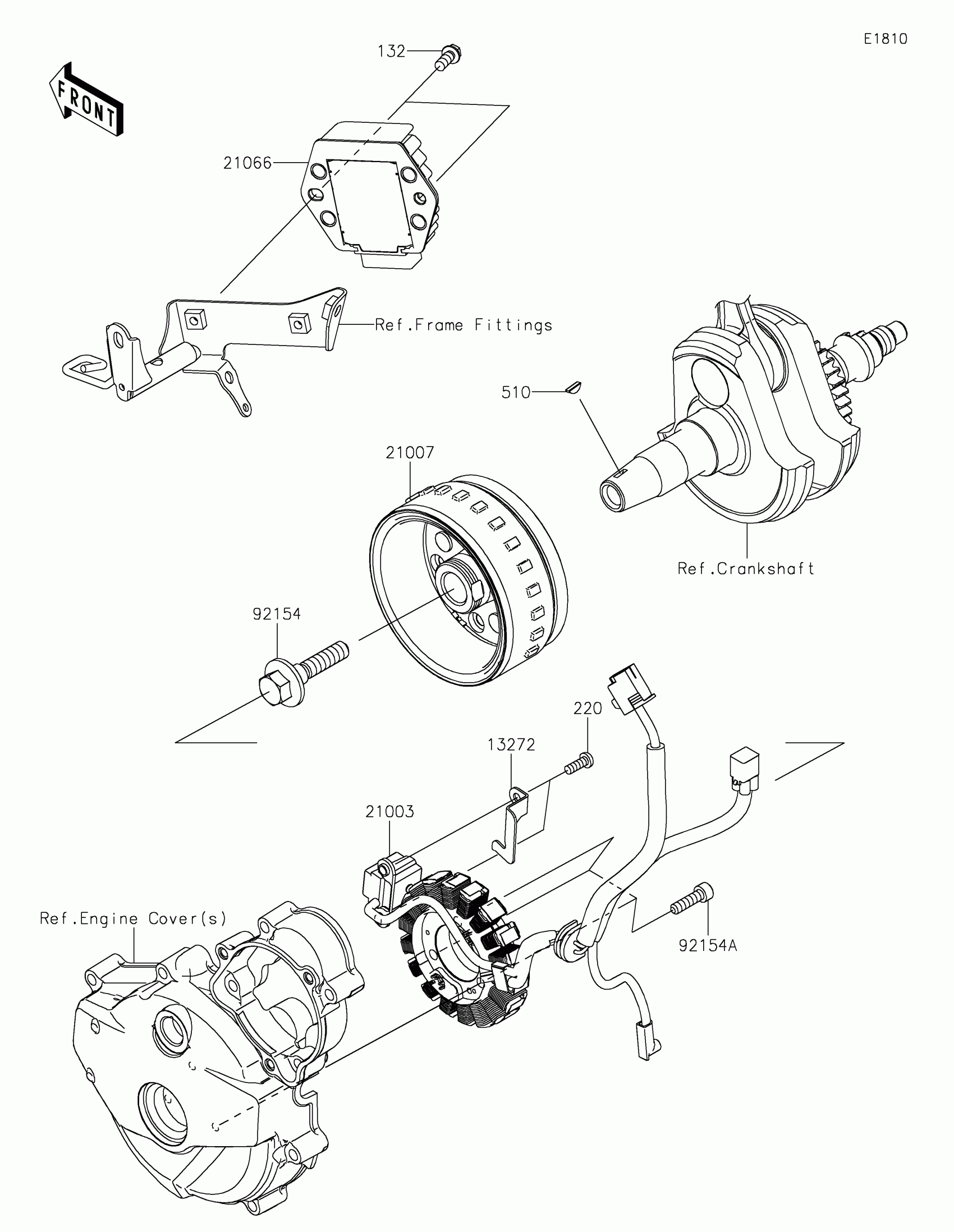

2022 Kawasaki KLX®230R S Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE,PULSING COIL

13272-2615

1

$1.03

In stock

21003

STATOR

21003-0199

1

$608.68

In stock

21007

ROTOR

21007-0680

1

$248.56

In stock

21066

REGULATOR-VOLTAGE

21066-0775

1

$107.62

In stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92151

BOLT,SOCKET,6X20

92151-1750

1

$2.03

In stock

92154

BOLT

92154-1309

1

$5.66

In stock

120

BOLT-SOCKET,6X22

120CA0622

1

$1.73

In stock

132

1

$3.24

In stock

132A

1

$2.05

In stock

220

1

$3.52

In stock

510

KEY-WOODRUFF

510A3100

1

$2.17

In stock
