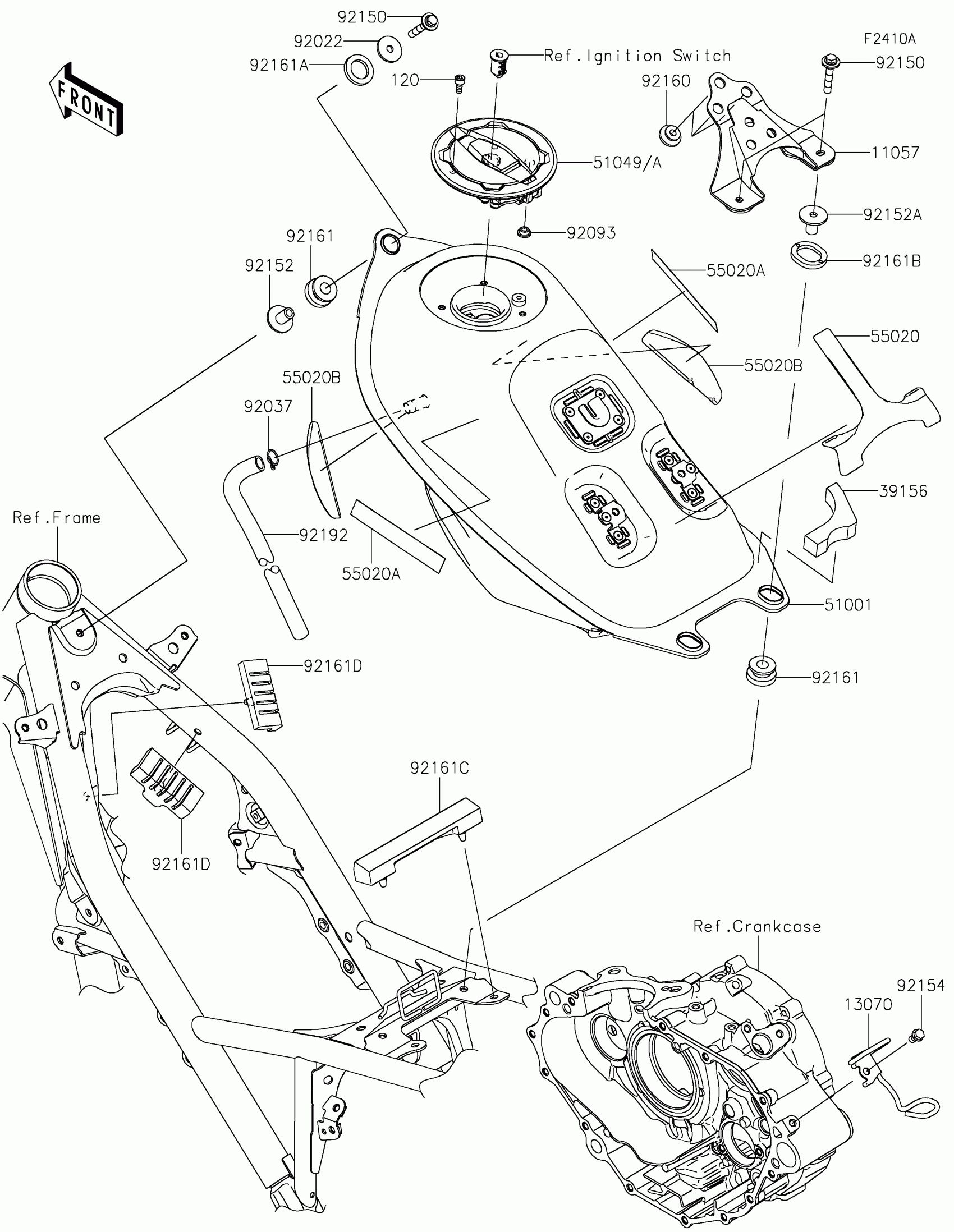

Kawasaki KLX®230R S Fuel Tank(CA) Diagram

#

Description
Price

11057

BRACKET

11057-4023

$23.88

13070

GUIDE

13070-0909

$5.61

39156

PAD

39156-2463

$5.92

51001

TANK-COMP-FUEL,F.S.BLACK

51001-0902-25Q

$766.76

51049

CAP-TANK

51049-0735

$139.17

51049A

CAP-TANK

51049-0765

$93.90

55020

GUARD,FUEL TANK,UPP

55020-2303

$33.47

55020A

GUARD,FUEL TANK,SIDE L&R

55020-2304

$7.14

55020B

GUARD,FUEL TANK,LWR

55020-2305

$10.22

92022

WASHER,6.5X24X2

92022-1690

$2.99

92037

CLAMP,12.5MM

92037-1271

$1.73

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92150

BOLT,FLANGED,6X35

92150-1527

$3.29

92152

COLLAR,6.8X10X16

92152-2666

$9.19

92152A

COLLAR

92152-2678

$9.19

92154

BOLT,FLANGED,6X10

92154-0459

$7.54

92160

DAMPER

92160-1613

$2.84

92161

DAMPER,FUEL TANK,FR

92161-1392

$2.68

92161A

DAMPER

92161-2216

$1.78

92161B

DAMPER

92161-2217

$1.22

92161C

DAMPER

92161-2231

$9.61

92161D

DAMPER

92161-2286

$5.66

92192

TUBE,DRAIN

92192-2305

$16.32

120

BOLT-SOCKET,5X12

120CA0512

$1.19
