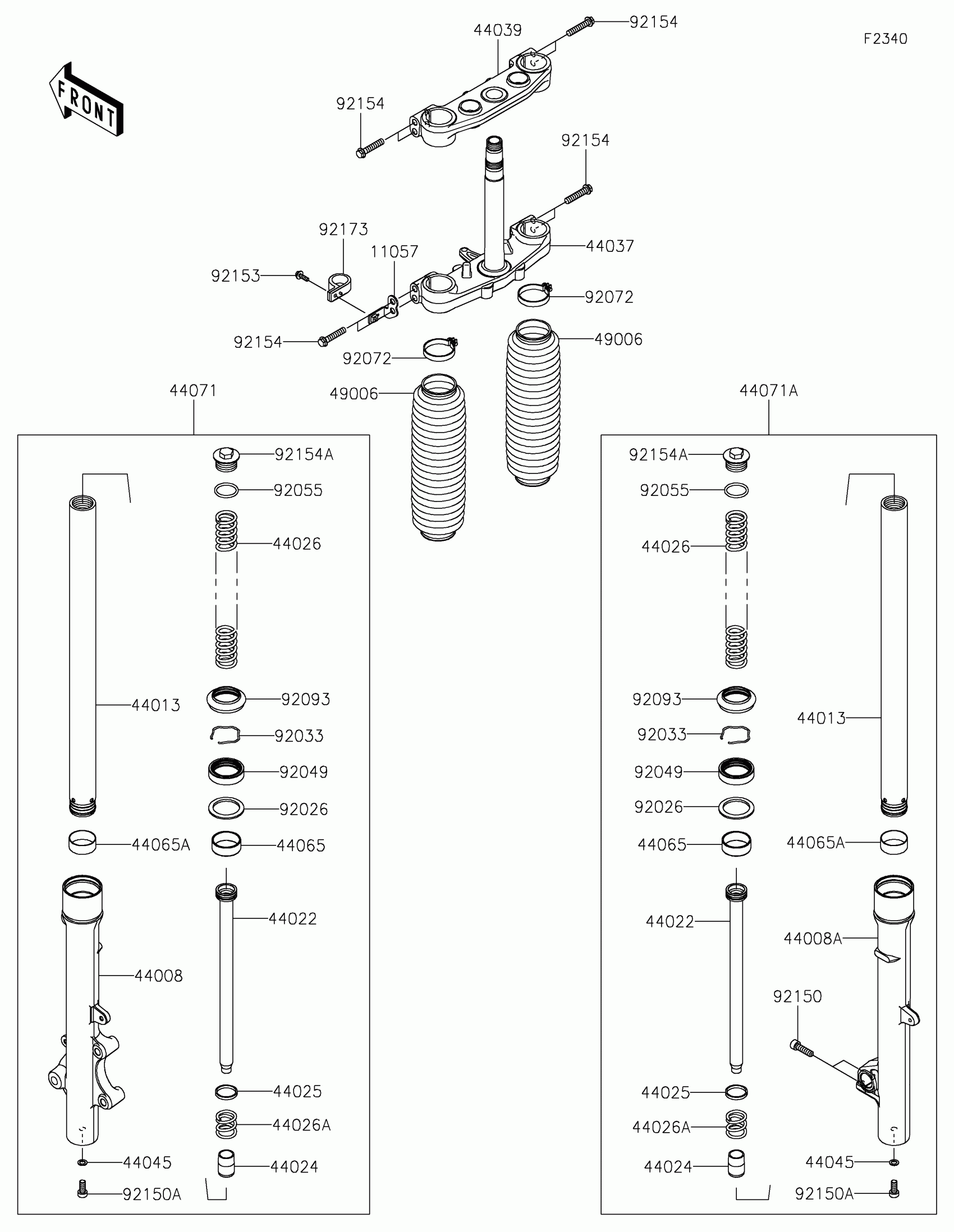

Kawasaki KLX®230R S Front Fork Diagram

#

Description
Price

11057

BRACKET

11057-2284

$16.03

44008

PIPE-FORK OUTER,LH

44008-0089

$247.94

44008A

PIPE-FORK OUTER,RH

44008-0090

$247.94

44013

PIPE-FORK INNER

44013-0341

$240.77

44013A

PIPE-FORK INNER

44013-0386

$234.42

44022

CYLINDER-FORK

44022-0048

$72.27

44022A

CYLINDER-FORK

44022-0056

$72.27

44024

CAP-OIL-LOCK

44024-0016

$21.15

44025

RING-FORK PISTON

44025-1062

Unavailable

44026

SPRING-FRONT FORK

44026-0235

$52.50

44026A

SPRING-FRONT FORK

44026-0241

$52.50

44026B

SPRING-FRONT FORK

44026-1556

$5.58

44037

HOLDER-FORK UNDER

44037-0186

$269.29

44039

HOLDER-FORK UPPER

44039-0190

$302.53

44045

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

44065

BUSHING-FRONT FORK

44065-0067

$45.38

44065A

BUSHING-FRONT FORK

44065-0068

$45.38

44065B

BUSHING-FRONT FORK

44065-0069

$17.68

44065C

BUSHING-FRONT FORK

44065-0070

$9.26

44071

DAMPER-ASSY,LH

44071-1354

$501.28

44071A

DAMPER-ASSY,RH

44071-1355

$501.28

44071B

DAMPER-ASSY,FORK,LH

44071-1535

$488.03

44071C

DAMPER-ASSY,FORK,RH

44071-1536

$488.03

49006

BOOT

49006-0612

$62.32

92026

SPACER,FORK

92026-1443

$6.55

92033

RING-SNAP

92033-1286

$7.88

92049

SEAL-OIL

92049-0734

$17.15

92055

RING-O

92055-1456

$3.17

92072

BAND

92072-0826

$17.36

92093

SEAL,FORK OUTER

92093-1367

$17.44

92150

BOLT,SOCKET,8X30

92150-1407

$1.98

92150A

BOLT,SOCKET,8X18

92150-1432

$7.54

92153

BOLT,FLANGED

92153-1397

$3.51

92154

BOLT

92154-0463

$3.93

92154A

BOLT

92154-3953

$16.03

92173

CLAMP

92173-2246

$8.53
