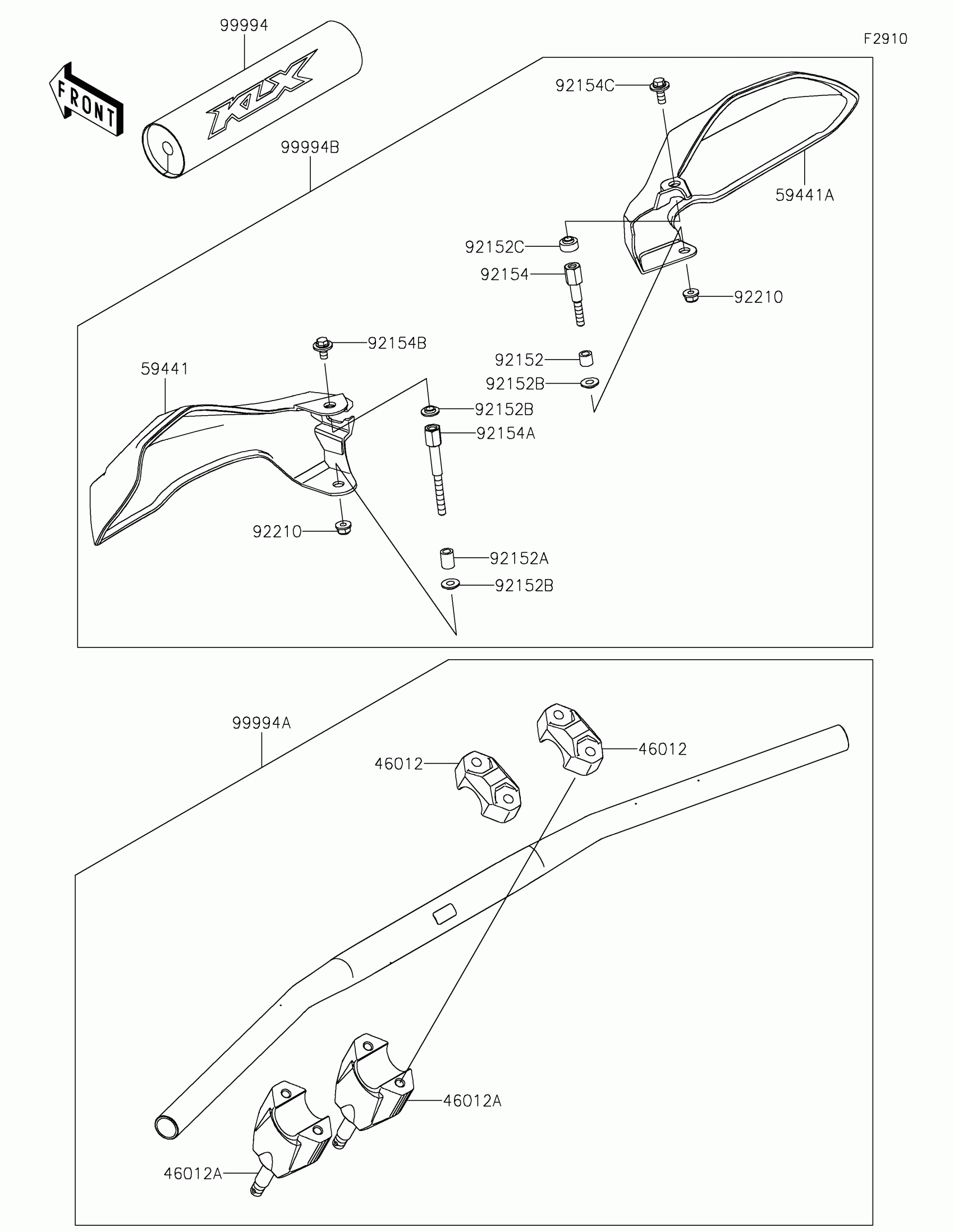

Kawasaki KLX®230R S Accessory(Handle) Diagram

Description

Price

46012

HOLDER-HANDLE,UPP,P.SILVER

46012-0359-458

$21.98

46012A

HOLDER-HANDLE,LWR,P.SILVER

46012-0360-458

$26.63

59441

COVER-HANDLE,LH,EBONY

59441-0045-6C

$29.90

59441A

COVER-HANDLE,RH,EBONY

59441-0046-6C

$29.90

92015

NUT,LOCK,FLANGED,6MM

92015-1603

$3.57

92151

BOLT,6X12

92151-1985

$3.55

92152

COLLAR,6.5X10.5X9.3

92152-1992

$2.98

92152A

COLLAR,6.5X10.5X14

92152-2302

$4.08

92152B

COLLAR,6.5X15X3.4

92152-2314

$2.41

92152C

COLLAR

92152-2592

$4.39

92153

BOLT,FLANGED,6X16

92153-1059

$4.04

92154

BOLT

92154-1670

$17.97

92154A

BOLT

92154-2359

$10.59

99994

HAND GUARD,EBONY

99994-1248-6C

$75.63

99994A

HANDLE-BAR PAD

99994-1274

$50.92

99994B

FAT TYPE HANDLE BAR,P.SILVER

99994-1508-458

$252.57
