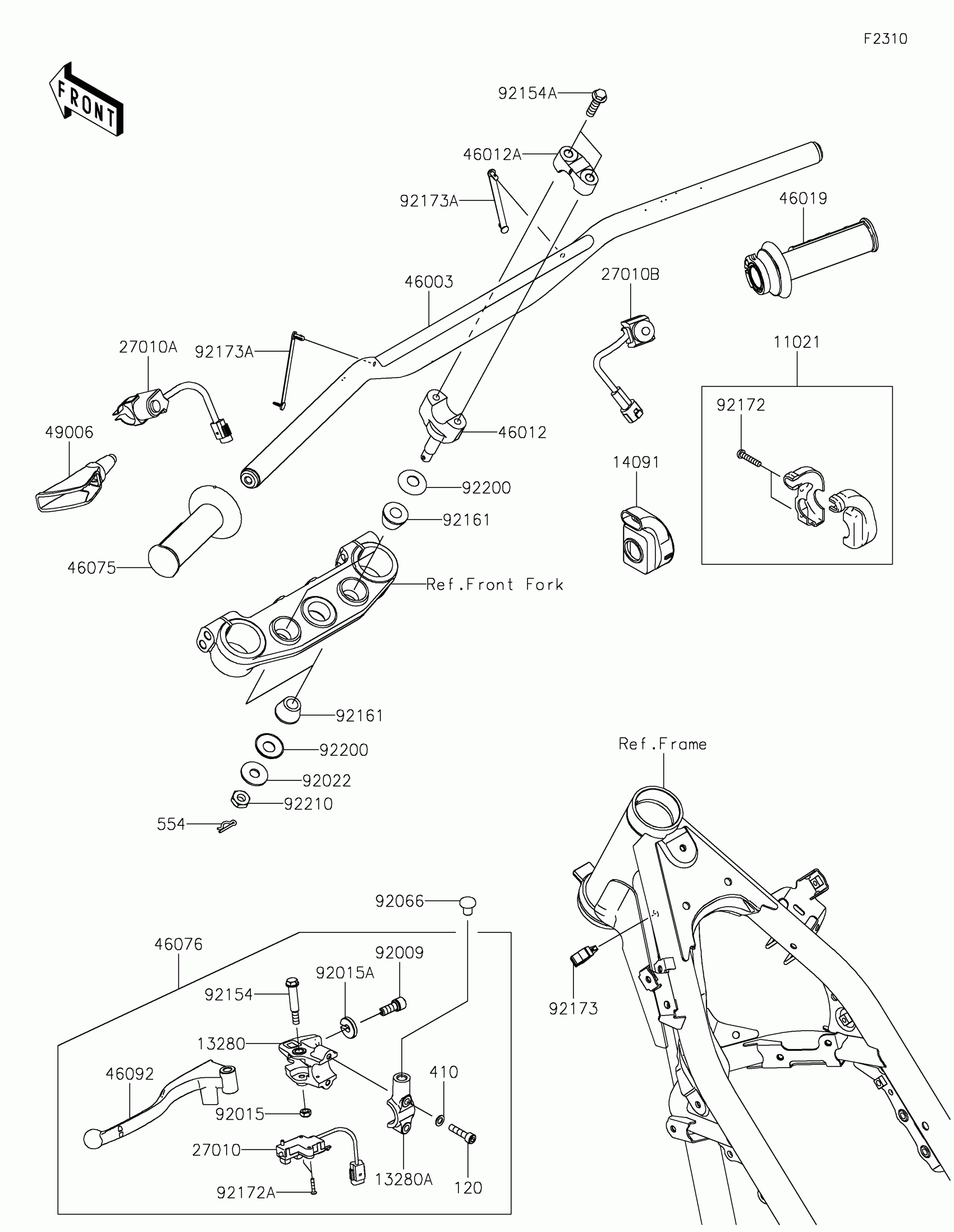

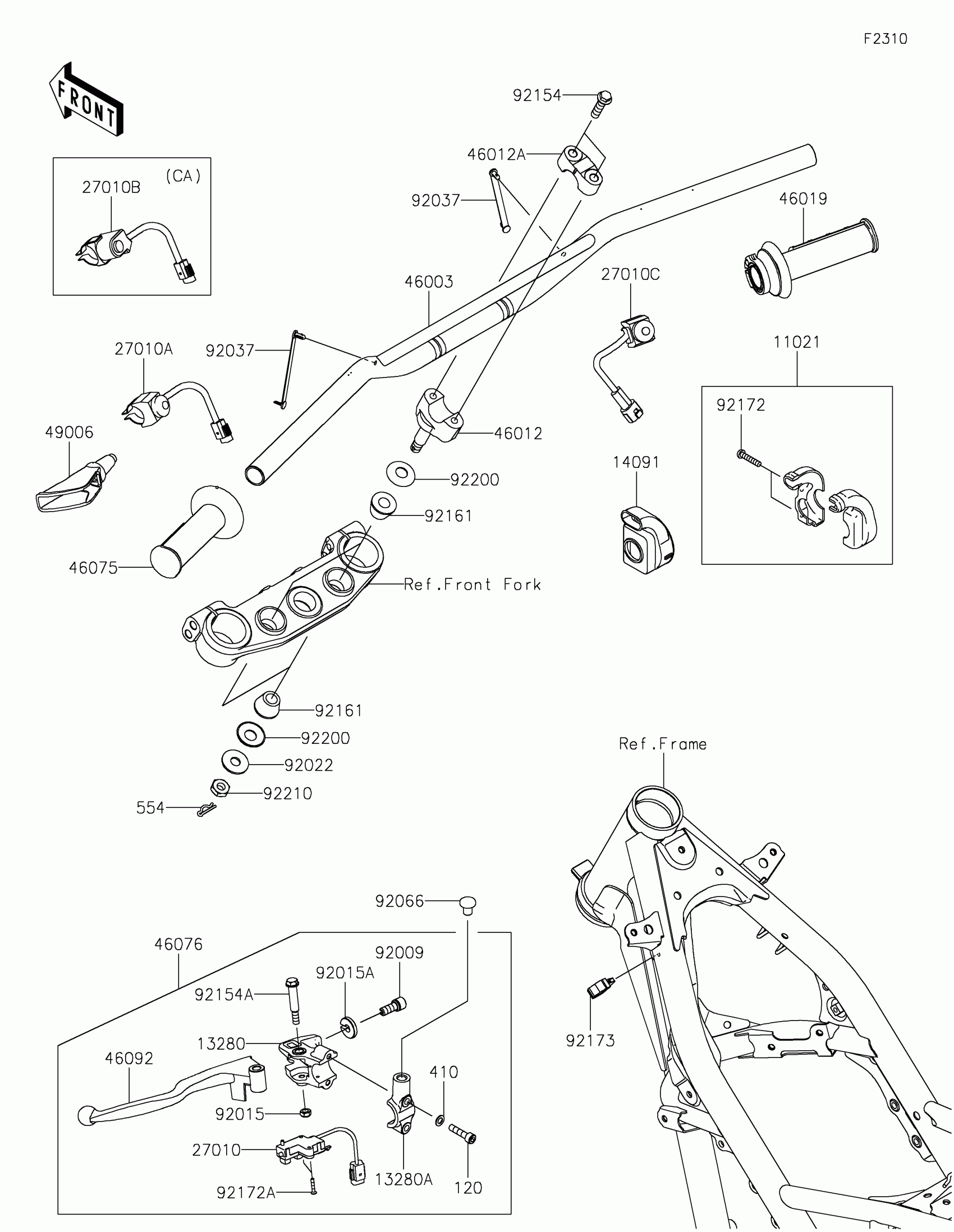

Kawasaki KLX®230R Handlebar Diagram

#

Description
Price

11021

CASE-ASSY,THROTTLE

11021-0035

$48.86

120

BOLT-SOCKET,6X25

120CB0625

$1.81

13280

HOLDER,LEVER

13280-0929

$40.81

13280A

HOLDER,MIRROR

13280-0930

$17.11

14091

COVER,THROTTLE CASE

14091-0182

$7.67

27010

SWITCH,CLUTCH

27010-0905

$33.60

27010A

SWITCH,ENGINE STOP

27010-0926

$56.20

27010B

SWITCH,ENGINE STOP

27010-0927

$125.41

27010C

SWITCH,ENGINE START

27010-0928

$38.22

410

WASHER-PLAIN-SMALL,6MM

410AB0600

$0.68

46003

HANDLE,P.SILVER

46003-0723-458

$119.21

46012

HOLDER-HANDLE,LWR,P.SILVER

46012-0075-458

$26.63

46012A

HOLDER-HANDLE,UPP,P.SILVER

46012-0380-458

$18.96

46019

GRIP-ASSY,THROTTLE

46019-0041

$26.45

46075

GRIP,LH

46075-0072

$11.10

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0158

$127.60

46092

LEVER-GRIP,CLUTCH

46092-0576

$22.00

49006

BOOT,LEVER HOLDER

49006-0080

$13.19

554

PIN-SNAP

554DA0800

$1.05

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

$11.50

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92015A

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

$7.54

92022

WASHER,10.2X28X2

92022-1088

$3.57

92037

CLAMP,SPEED,L=80.5

92037-1903

$5.99

92066

PLUG

92066-1348

$0.85

92154

BOLT,FLANGED,8X30

92154-1246

$1.69

92154A

BOLT,FLANGED,6X44

92154-2331

$5.80

92161

DAMPER,12X26X19

92161-2116

$4.58

92172

SCREW,5X20

92172-0069

$2.30

92172A

SCREW,3X16

92172-0183

$1.57

92173

CLAMP

92173-2074

$2.29

92200

WASHER,12.5X27.6X1.2

92200-0872

$4.18

92210

NUT,LOCK,10MM

92210-1672

$3.51
