Description

Price

11061

GASKET,10.5X16X2

11061-0222

$4.24

132

BOLT-FLANGED-SMALL,6X30

132BC0630

$1.57

132A

BOLT-FLANGED-SMALL,6X70

132BC0670

$3.51

14001

SET-CRANKCASE

14001-0707

$284.32

16130

VALVE-ASSY-RELIEF

16130-0002

$23.95

21176

SENSOR,SPEED

21176-0894

$183.12

92001

BOLT,W/WASHER,6X14

92001-1829

$3.53

92022

WASHER,10.2X18X1.0,SK5

92022-1415

$4.17

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92045

BEARING-BALL,25X42X9

92045-0881

$24.19

92045A

BEARING-BALL,6306CM

92045-0907

$43.98

92045B

BEARING-BALL,6203NSE9C3

92045-0908

$15.63

92045C

BEARING-BALL,6204C3

92045-0909

$19.69

92045D

BEARING-BALL,6205NSE9C3

92045-0910

$31.38

92045E

BEARING-BALL,6203C3

92045-0911

$14.53

92046

BEARING-NEEDLE,HK1412FM

92046-0043

$12.99

92049

SEAL-OIL,32X45X7.5

92049-0825

$17.85

92049A

SEAL-OIL,TC14245

92049-1520

$10.54

92055

RING-O,OD=13

92055-074

$6.55

92055A

RING-O

92055-0958

$8.05

92055B

RING-O,5.5X1.5

92055-1339

$3.85

92062

NOZZLE

92062-0050

$23.02

92062A

NOZZLE,8X8

92062-0567

$3.49

92062B

NOZZLE,6X8,SILVER

92062-1081

$5.63

92066

PLUG,DRAIN

92066-0143

$2.79

92143

COLLAR

92143-1263

$3.71

92150

BOLT,SOCKET,5X20

92150-1019

$3.61

92151

BOLT,6X65

92151-1199

$4.32

92151A

BOLT,6X50

92151-1234

$2.03

92154

BOLT,RETURN SPRING

92154-1306

$8.51

92154A

BOLT,FLANGED,6X16

92154-2895

$1.10

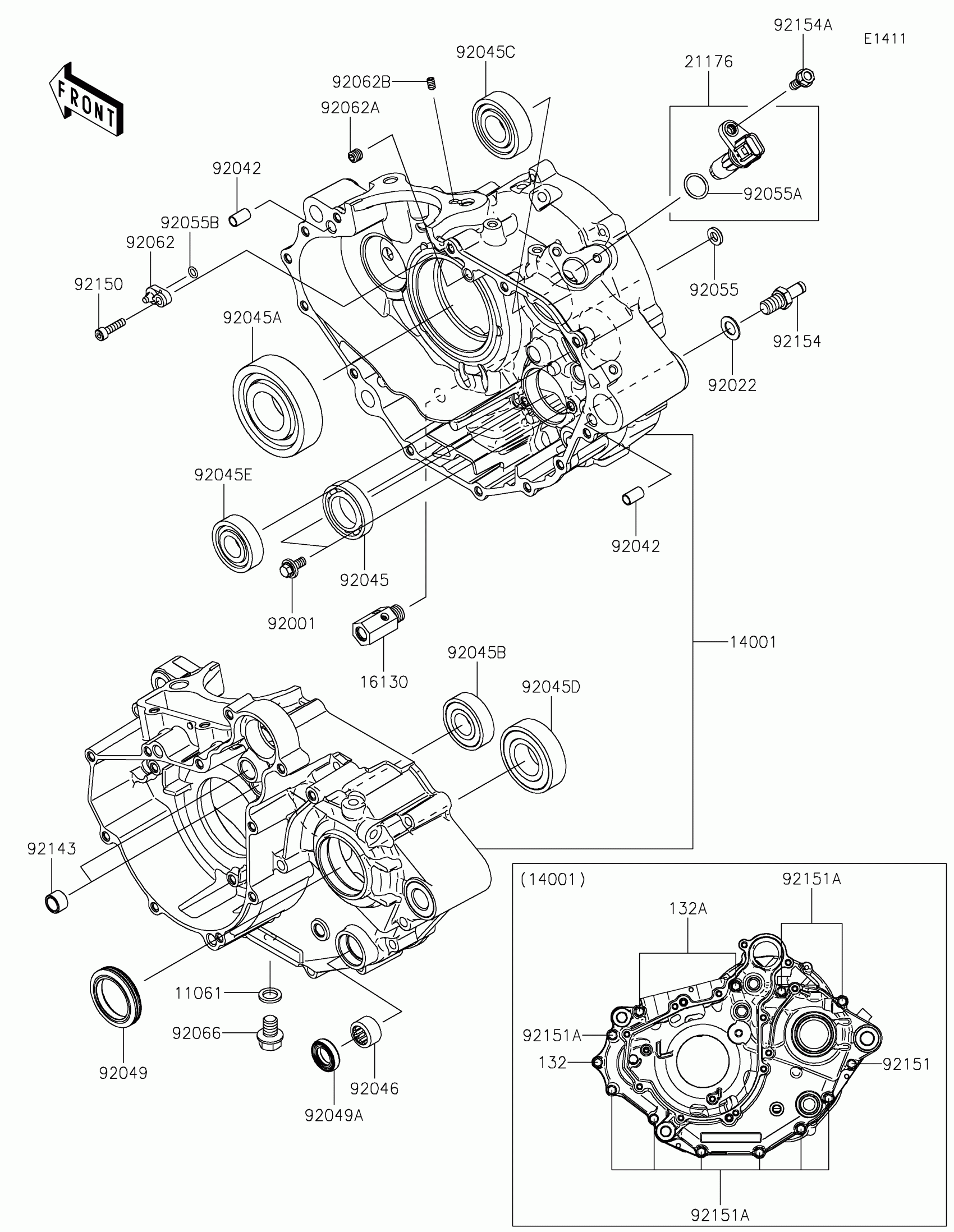

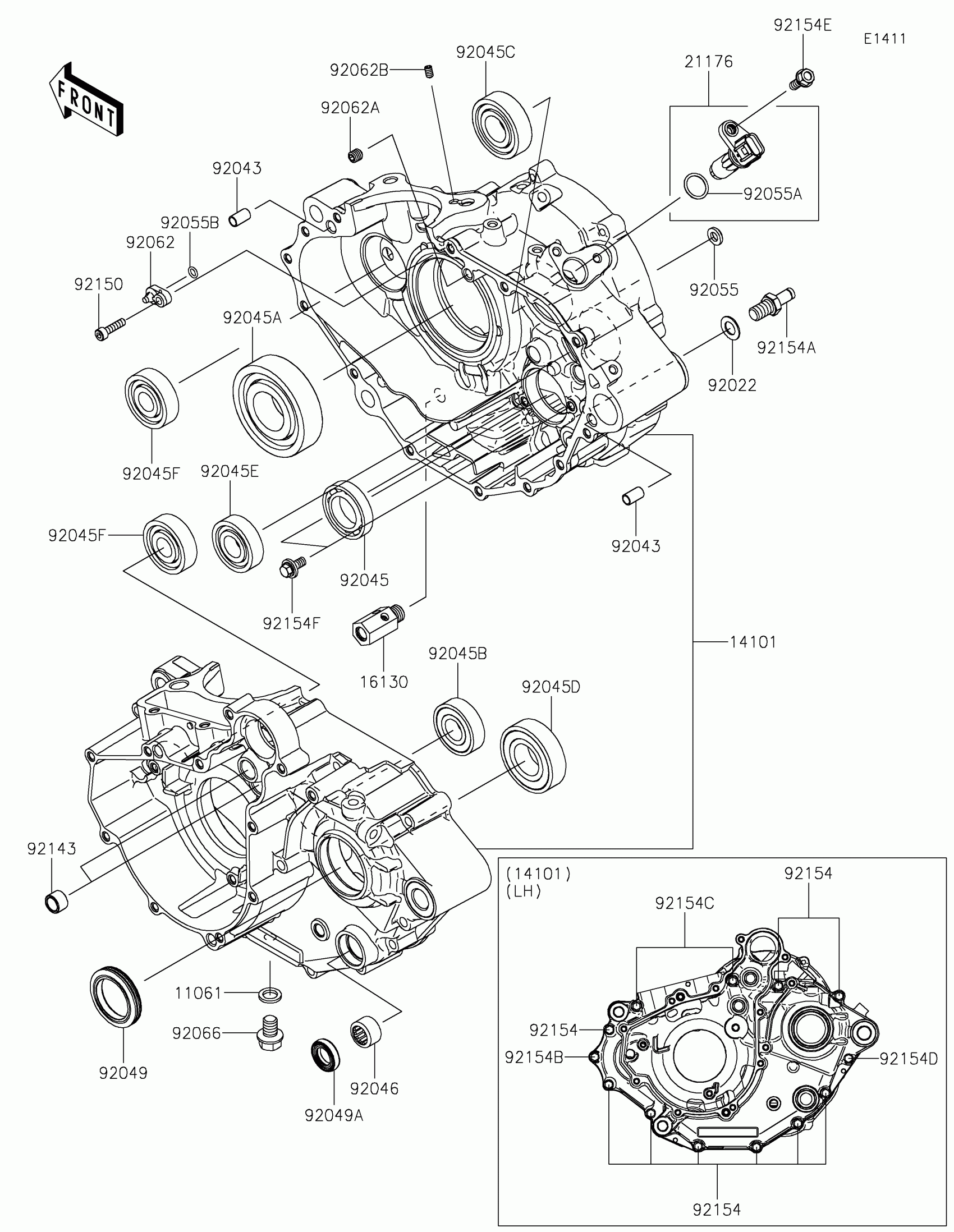

Kawasaki KLX®230R Crankcase Diagram
