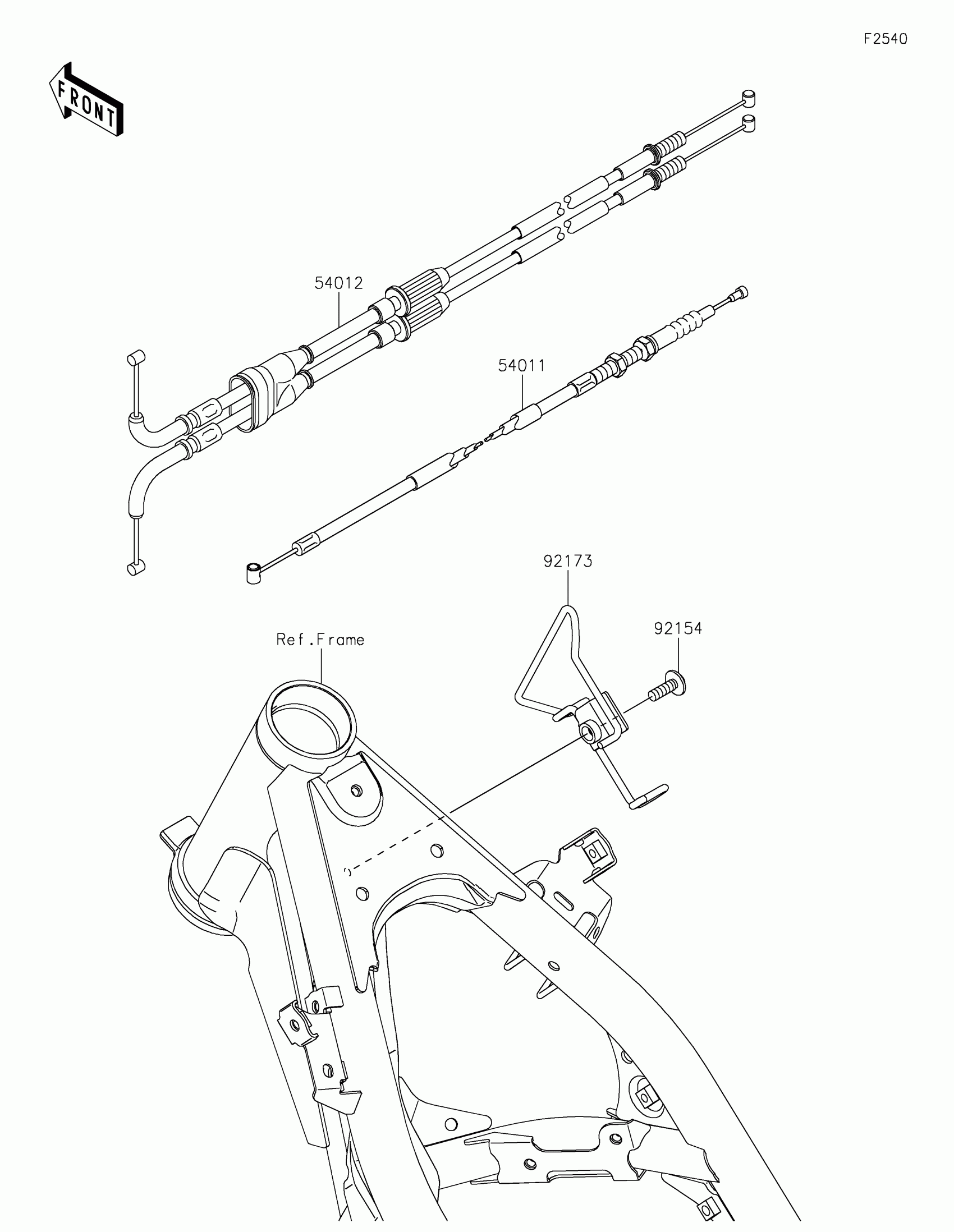

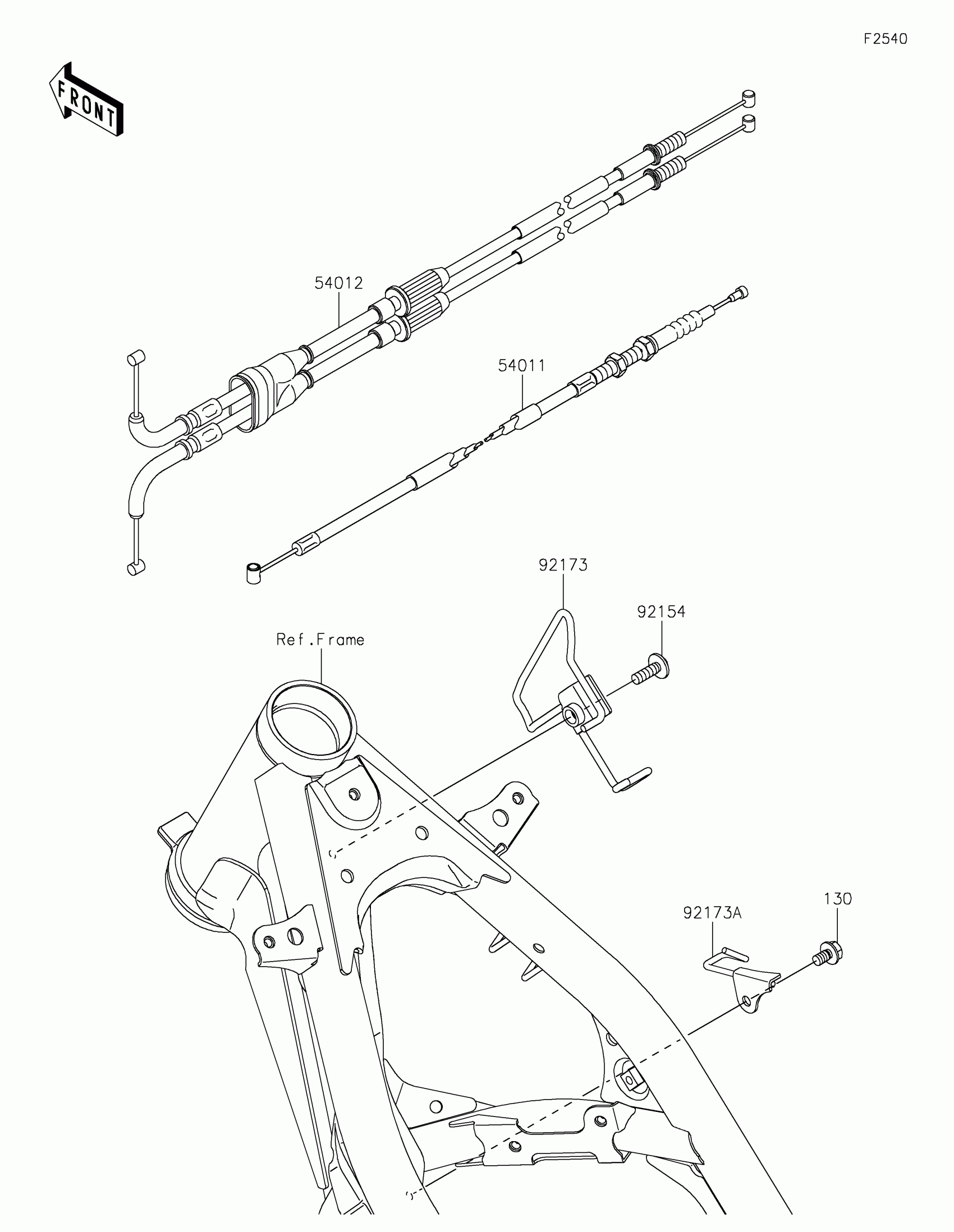

Kawasaki KLX®230R Cables Diagram

#

Description

Price

130

BOLT-FLANGED,6X10

130BA0610

$0.97

54011

CABLE-CLUTCH

54011-0639

$29.26

54012

CABLE-THROTTLE

54012-0677

$75.99

92154

BOLT,SOCKET,6X18

92154-1291

$1.32

92173

CLAMP

92173-2046

$15.59

92173A

CLAMP,CLUTCH CABLE

92173-2049

$7.20
