2020 Kawasaki KLX®230 Suspension/shock Absorber Diagram

← All diagrams

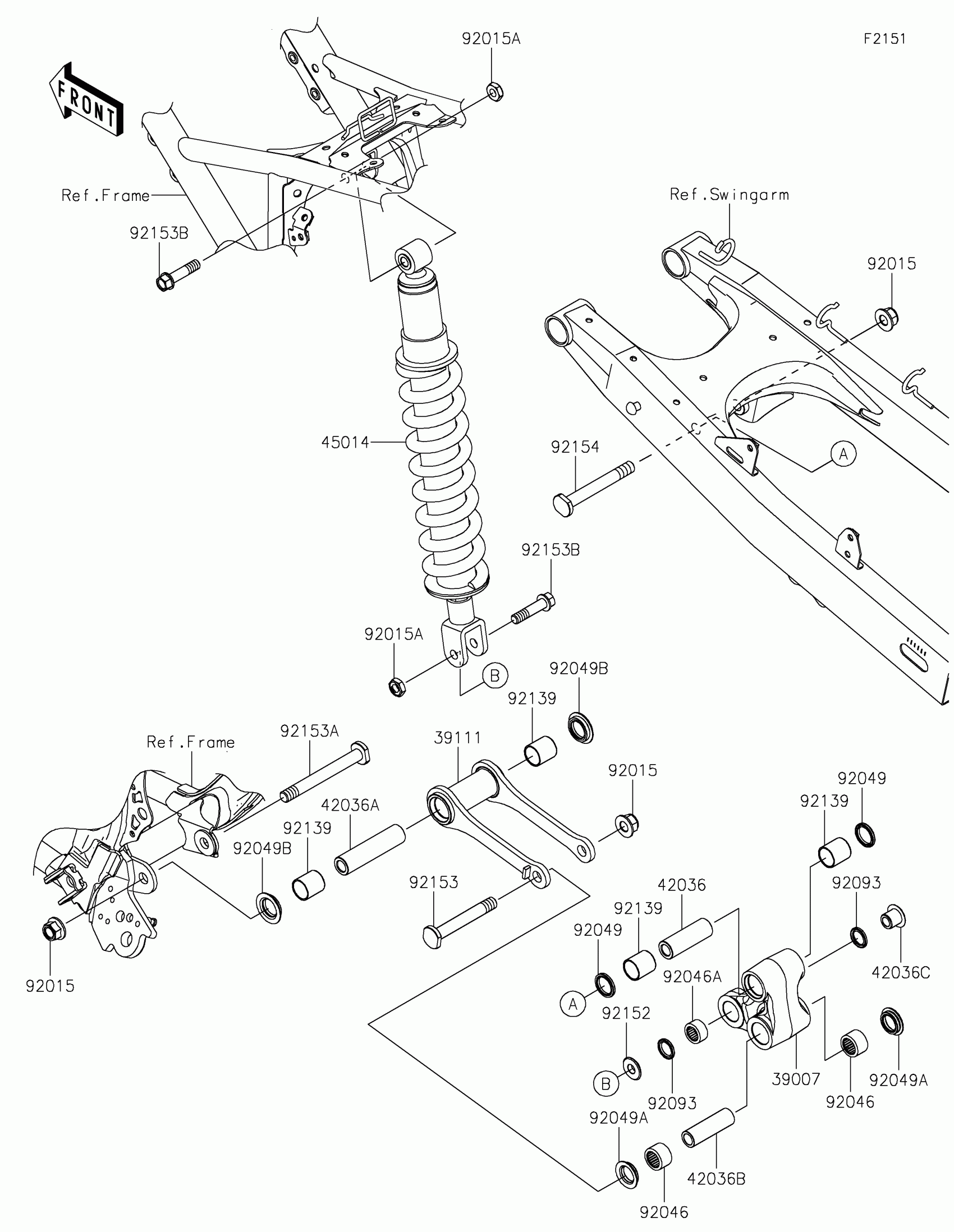

Find the part on the Suspension/shock Absorber diagram for your 2020 Kawasaki KLX®230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki KLX®230 Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP

39007-0422

1
Out of stock

39111

ROD-TIE

39111-0367

1
Out of stock

42036

SLEEVE,12.1X20X58

42036-0046

1
Out of stock

42036A

SLEEVE,12.1X20X82.6

42036-0068

1
Out of stock

42036B

SLEEVE,12.1X18X58

42036-0827

1
Out of stock

42036C

SLEEVE

42036-1351

1
Out of stock

45014

SHOCKABSORBER

45014-0665

1
Out of stock

92015

NUT,LOCK,FLANGED,12MM

92015-1433

1
Out of stock

92015A

NUT,LOCK,10MM

92015-1962

1
Out of stock

92046

BEARING-NEEDLE,18BM2416

92046-1144

1
Out of stock

92046A

BEARING-NEEDLE,16BM2212

92046-1192

1
Out of stock

92049

SEAL-OIL,SDO 20 26 3

92049-0135

1
Out of stock

92049A

SEAL-OIL,18X30X5.7

92049-0813

1
Out of stock

92049B

SEAL-OIL,ARM

92049-1109

1
Out of stock

92093

SEAL,SO 16 22 2.5

92093-0155

1
Out of stock

92139

BUSHING,20X23X24

92139-0940

1
Out of stock

92152

COLLAR

92152-1139

1
Out of stock

92153

BOLT,12X85

92153-1828

1
Out of stock

92153A

BOLT,12X108

92153-1829

1
Out of stock

92153B

BOLT,FLANGED,10X42

92153-1957

1
Out of stock

92154

BOLT,12X95

92154-1185

1
Out of stock
