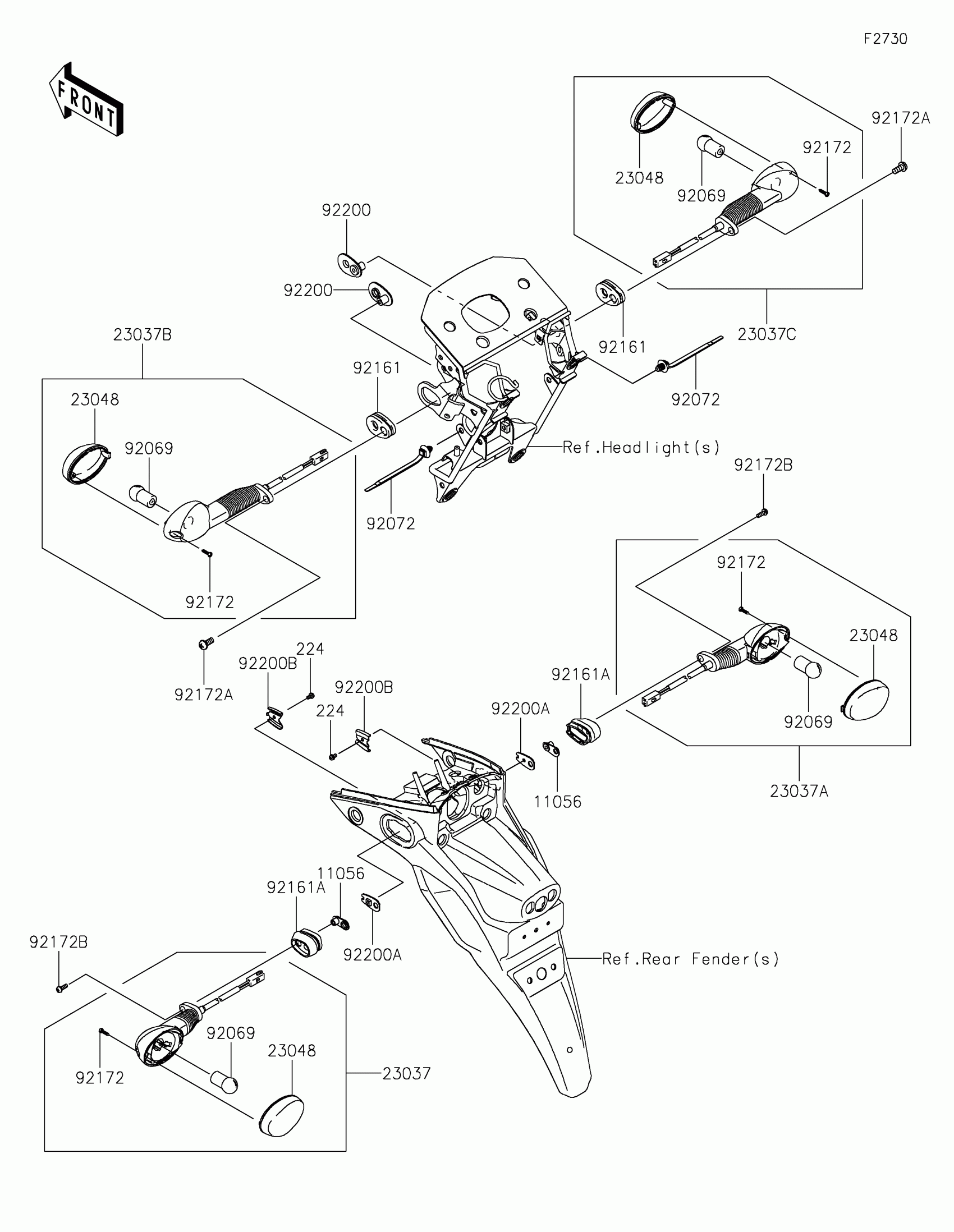

Kawasaki KLX®230 SE Turn Signals Diagram

Description

Price

11056

BRACKET,6MM

11056-4156

$3.94

23037

LAMP-ASSY-SIGNAL,RR,LH

23037-0418

$44.61

23037A

LAMP-ASSY-SIGNAL,RR,RH

23037-0419

$44.61

23037B

LAMP-ASSY-SIGNAL,FR,LH

23037-0456

$73.00

23037C

LAMP-ASSY-SIGNAL,FR,RH

23037-0457

$73.00

23048

LENS-SIGNAL LAMP

23048-0035

$8.61

92069

BULB,12V 10W

92069-0106

$3.30

92072

BAND,OS170-FT7(BLACK)

92072-1414

$2.97

92161

DAMPER,MOUNT,FR

92161-2113

$7.47

92161A

DAMPER

92161-2287

$7.88

92172

SCREW,TAPPING,2.9X13

92172-0343

$1.53

92172A

SCREW,6X14

92172-0497

$4.75

92172B

SCREW-PAN-WP-CROS,6X14

92172-1256

$3.69

92200

WASHER

92200-0874

$8.46

92200A

WASHER,W/NUT,M4

92200-1978

$3.56

92200B

WASHER

92200-1979

$3.56

224

SCREW-PAN-WP-CROS,4X8

224AB0408

$2.92
