Description

Price

11056

BRACKET

11056-2395

$1.10

11056A

BRACKET,WITH NUT

11056-2396

$1.69

11065

CAP

11065-1309

$4.25

12053

GUIDE-CHAIN,FR

12053-0286

$19.85

12053A

GUIDE-CHAIN,RR,OUTSIDE

12053-0287

$10.63

12053B

GUIDE-CHAIN,RR,INSIDE

12053-0288

$9.76

33001

ARM-COMP-SWING,P.SILVER

33001-0712-458

$558.70

33032

SHAFT-SWING ARM,14X243

33032-0061

$43.10

33040

ADJUSTER-CHAIN,OUTSIDE

33040-0092

$10.05

33040A

ADJUSTER-CHAIN,INSIDE

33040-0093

$34.13

42036

SLEEVE,15X20X46

42036-0831

$14.61

92015

NUT,8MM

92015-1364

$3.12

92015A

NUT,14MM

92015-1407

$7.86

92015B

NUT,8MM

92015-1658

$3.87

92022

WASHER,8.5X16X1.2

92022-1582

$0.84

92046

BEARING-NEEDLE,BM202726

92046-1110

$21.73

92049

SEAL-OIL

92049-0849

$9.02

92154

BOLT,FLANGED,6X55

92154-1190

$2.29

92154A

BOLT,FLANGED,6X60

92154-2762

$3.15

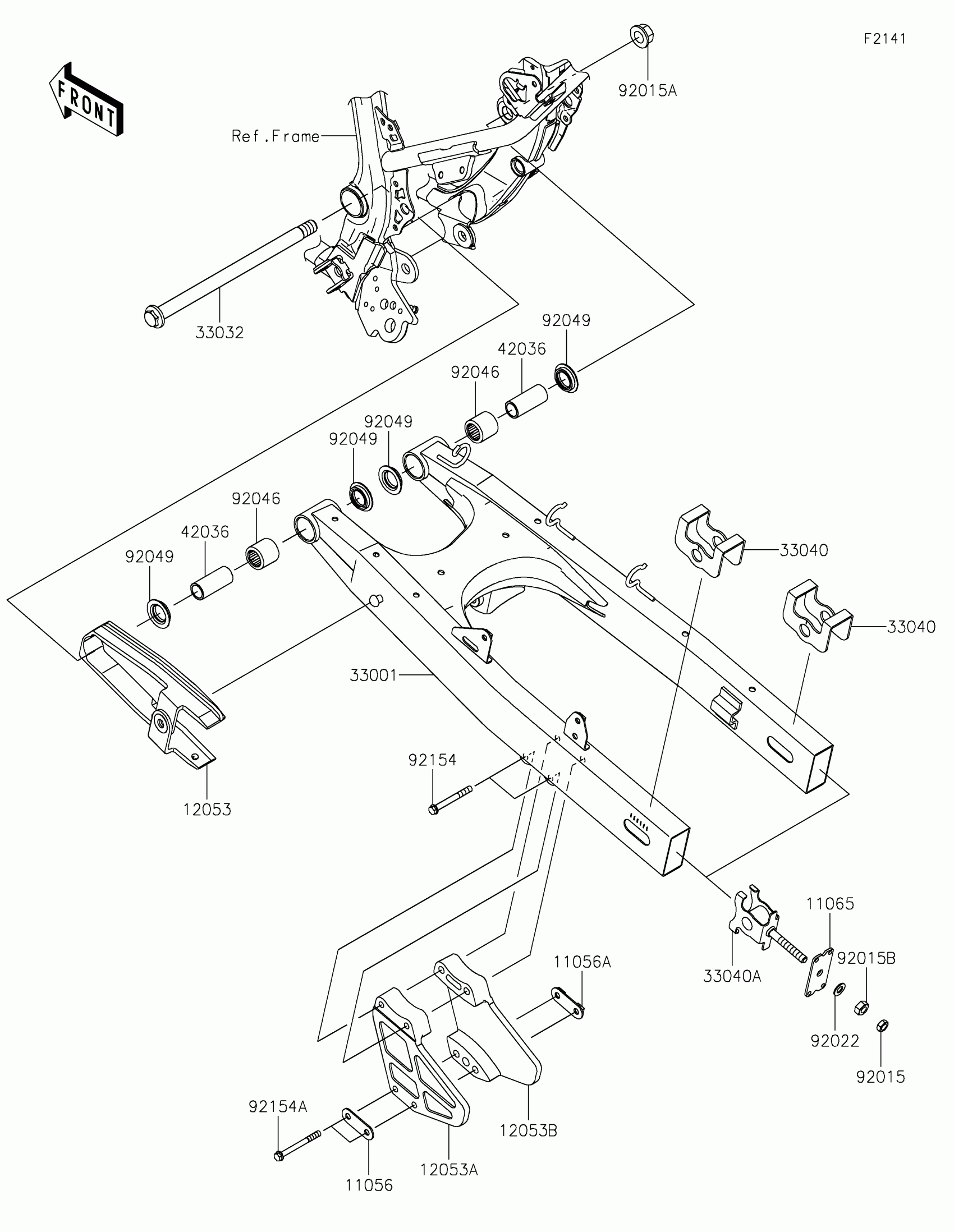

Kawasaki KLX®230 SE Swingarm Diagram
