Description

Price

11057

BRACKET

11057-2396

$10.95

13159

CONNECTOR

13159-0009

$8.85

43010

ROD-ASSY-BRAKE

43010-0028

$55.97

43015

CYLINDER-ASSY-MASTER,RR

43015-0737

$270.31

43020

PISTON-COMP-BRAKE

43020-0027

Unavailable

43026

CAP-BRAKE

43026-1075

$12.97

43028

DIAPHRAGM

43028-1067

$14.71

43078

RESERVOIR

43078-1189

$27.47

43095

HOSE-BRAKE

43095-1663

$36.66

43095A

HOSE-BRAKE,RR CALIPER-RR M/C

43095-1665

$102.61

49016

COVER-SEAL,BRAKE PISTON

49016-1103

$12.73

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.81

92009

SCREW,4X40

92009-1596

$3.14

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$6.19

92033A

RING-SNAP,20.5MM

92033-1186

$3.94

92037

CLAMP

92037-1710

$7.86

92043

PIN

92043-0004

$8.85

92043A

PIN,COTTER,2.0X15

92043-0766

$1.10

92055

RING-O,14.8X2.4

92055-0741

$2.95

92066

PLUG

92066-0934

$1.63

92153

BOLT,OIL,L=23

92153-0029

$1.44

92154

BOLT,SOCKET,6X14

92154-1202

$1.39

92154A

BOLT,FLANGED,6X12

92154-2776

$2.20

92200

WASHER,8.5X13X1

92200-1980

$3.53

132

BOLT-FLANGED-SMALL,6X22

132BA0622

$1.66

318

NUT-HEX-SMALL,8MM

318BA0800

$1.20

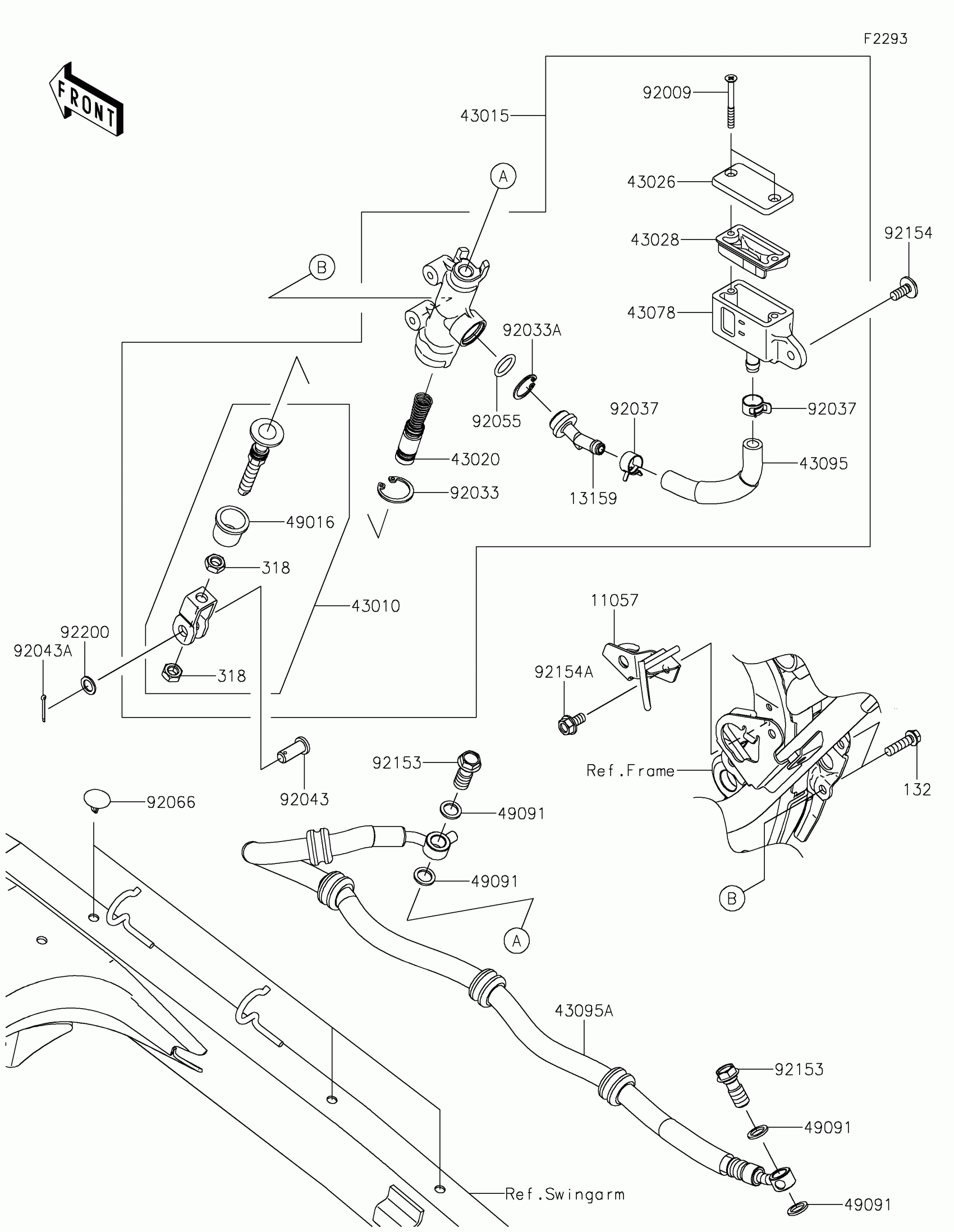

Kawasaki KLX®230 SE Rear Master Cylinder Diagram

PISTON-COMP-BRAKE
