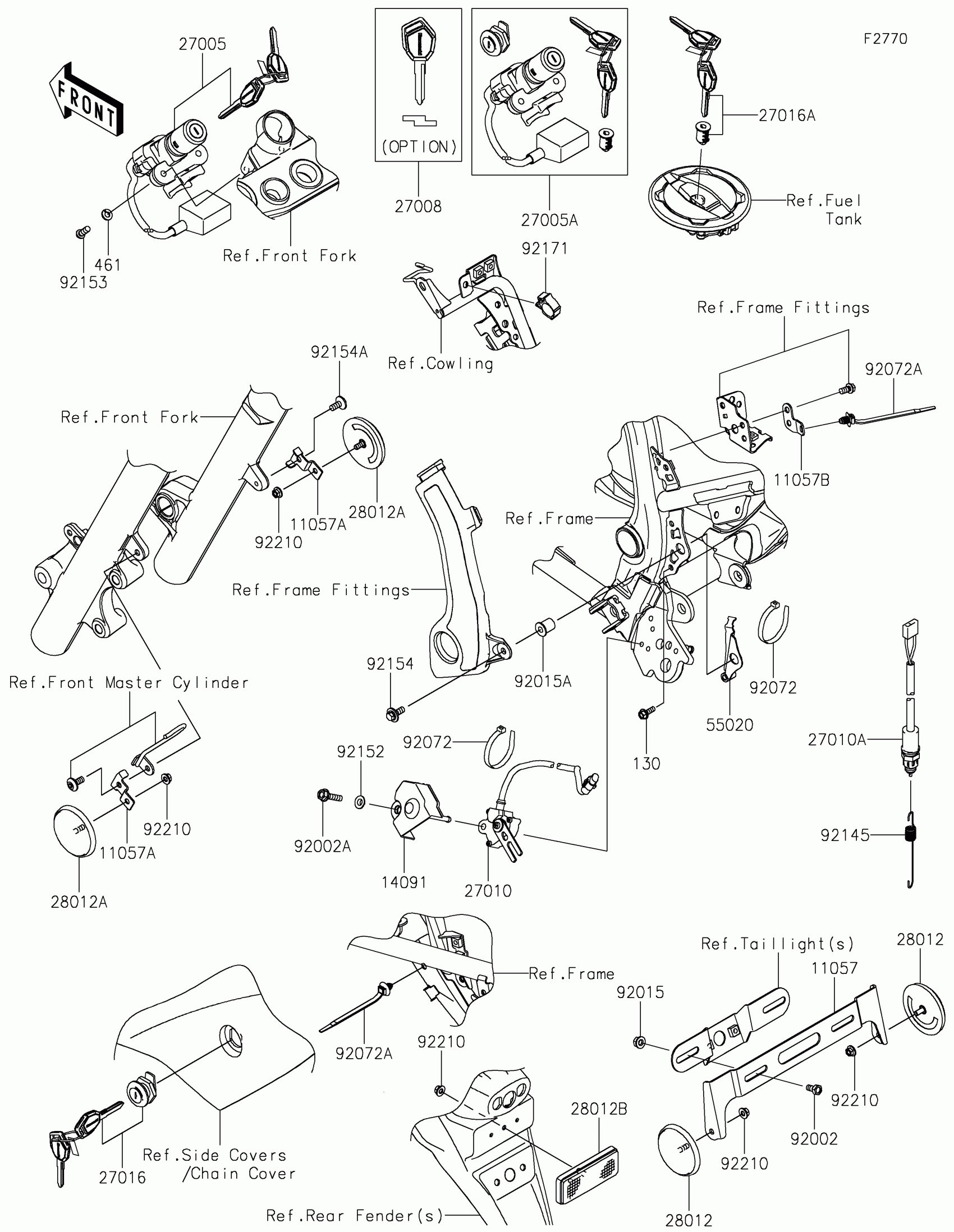

Kawasaki KLX®230 SE Ignition Switch Diagram

#

Description
Price

11057

BRACKET,REFLECTOR

11057-0641

$17.61

11057A

BRACKET,FR

11057-2421

$1.93

11057B

BRACKET

11057-4032

$2.29

14091

COVER,SIDE STAND SWITCH

14091-1553

$7.47

27005

SWITCH-ASSY-IGNITION

27005-0694

$224.10

27005A

SWITCH-ASSY-IGNITION

27005-5183

$321.12

27008

KEY-LOCK,BLANK

27008-0650

Unavailable

27010

SWITCH,SIDE STAND

27010-0097

$119.84

27010A

SWITCH,REAR BRAKE

27010-0106

$50.57

27016

LOCK-ASSY,SIDE COVER

27016-5410

$82.11

27016A

LOCK-ASSY,TANK CAP

27016-5414

$82.11

28012

REFLECTOR-REFLEX

28012-0002

$19.59

28012A

REFLECTOR-REFLEX

28012-0008

$24.88

28012B

REFLECTOR-REFLEX

28012-1077

$21.76

55020

GUARD

55020-2307

$8.69

92002

BOLT,6X12

92002-1132

$1.14

92002A

BOLT,FLANGED,6X25

92002-1582

$4.17

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92015A

NUT

92015-1700

$6.55

92072

BAND,L=200

92072-0106

$4.95

92072A

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92145

SPRING

92145-1940

$3.88

92152

COLLAR,6.4X8X4.3

92152-2212

$3.56

92153

BOLT,TORX,6X16

92153-1426

$3.51

92154

BOLT,FLANGED-SMALL,6X16

92154-1183

$1.32

92154A

BOLT,SOCKET,6X14

92154-3763

Unavailable

92171

CLAMP,BRAKE HOSE

92171-0316

$2.93

92210

NUT,FLANGED,5MM

92210-0007

$1.90

130

BOLT-FLANGED,5X14

130BA0514

$1.49

461

WASHER-SPRING,6MM

461DA0600

$0.66
