Partiron

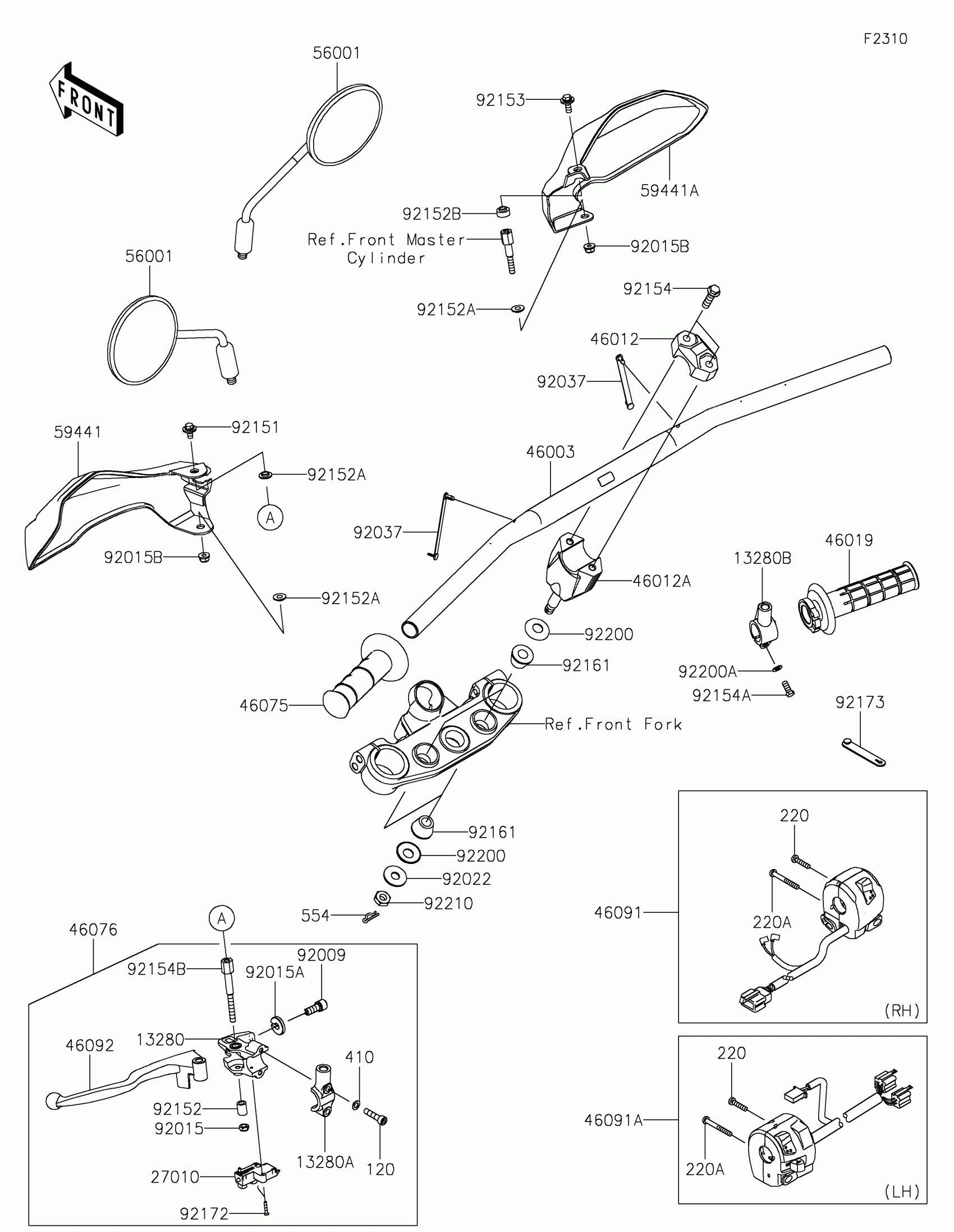

Kawasaki KLX®230 SE Handlebar Diagram

#

Description
Price

13280

HOLDER,LEVER

13280-0929

$40.81

13280A

HOLDER,MIRROR

13280-0930

$17.11

13280B

HOLDER,MIRROR

13280-1000

$20.71

27010

SWITCH,CLUTCH

27010-0729

$29.57

46003

HANDLE,FAT TYPE BAR,P.SILVER

46003-0794-458

$192.08

46012

HOLDER-HANDLE,UPP,P.SILVER

46012-0359-458

$21.98

46012A

HOLDER-HANDLE,LWR,P.SILVER

46012-0360-458

$26.63

46019

GRIP-ASSY,THROTTLE

46019-0088

$37.72

46075

GRIP,LH

46075-0644

$29.66

46076

LEVER-ASSY-GRIP

46076-0161

$138.92

46091

HOUSING-ASSY-CONTROL,RH

46091-0452

$146.72

46091A

HOUSING-ASSY-CONTROL,LH

46091-0455

$156.22

46092

LEVER-GRIP,CLUTCH

46092-0576

$22.00

56001

MIRROR-ASSY

56001-0419

$46.52

59441

COVER-HANDLE,LH,EBONY

59441-0045-6C

$29.90

59441A

COVER-HANDLE,RH,EBONY

59441-0046-6C

$29.90

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

$11.50

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92015A

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

$7.54

92015B

NUT,LOCK,FLANGED,6MM

92015-1603

$3.57

92022

WASHER,10.2X28X2

92022-1088

$3.57

92037

CLAMP,SPEED,L=80.5

92037-1903

$5.99

92151

BOLT,6X12

92151-1985

$3.55

92152

COLLAR,6.5X10.5X14

92152-2302

$4.08

92152A

COLLAR,6.5X15X3.4

92152-2314

$2.41

92152B

COLLAR

92152-2592

$4.39

92153

BOLT,FLANGED,6X16

92153-1059

$4.04

92154

BOLT,FLANGED,8X30

92154-1246

$1.69

92154A

BOLT,UPSET,6X22

92154-1422

$4.17

92154B

BOLT

92154-2359

$10.59

92161

DAMPER,12X26X19

92161-2116

$4.58

92172

SCREW,3X16

92172-0183

$1.57

92173

CLAMP

92173-2199

$1.32

92200

WASHER,12.5X27.6X1.2

92200-0872

$4.18

92200A

WASHER,6.5X11.5X0.8

92200-0947

$0.44

92210

NUT,LOCK,10MM

92210-1672

$3.51

120

BOLT-SOCKET,6X25

120CB0625

$1.81

220

SCREW-PAN-CROS,5X22

220AB0522

$0.89

220A

SCREW-PAN-CROS,5X40

220AB0540

$1.49

410

WASHER-PLAIN-SMALL,6MM

410AB0600

$0.68

554

PIN-SNAP

554DA0800

$1.05
