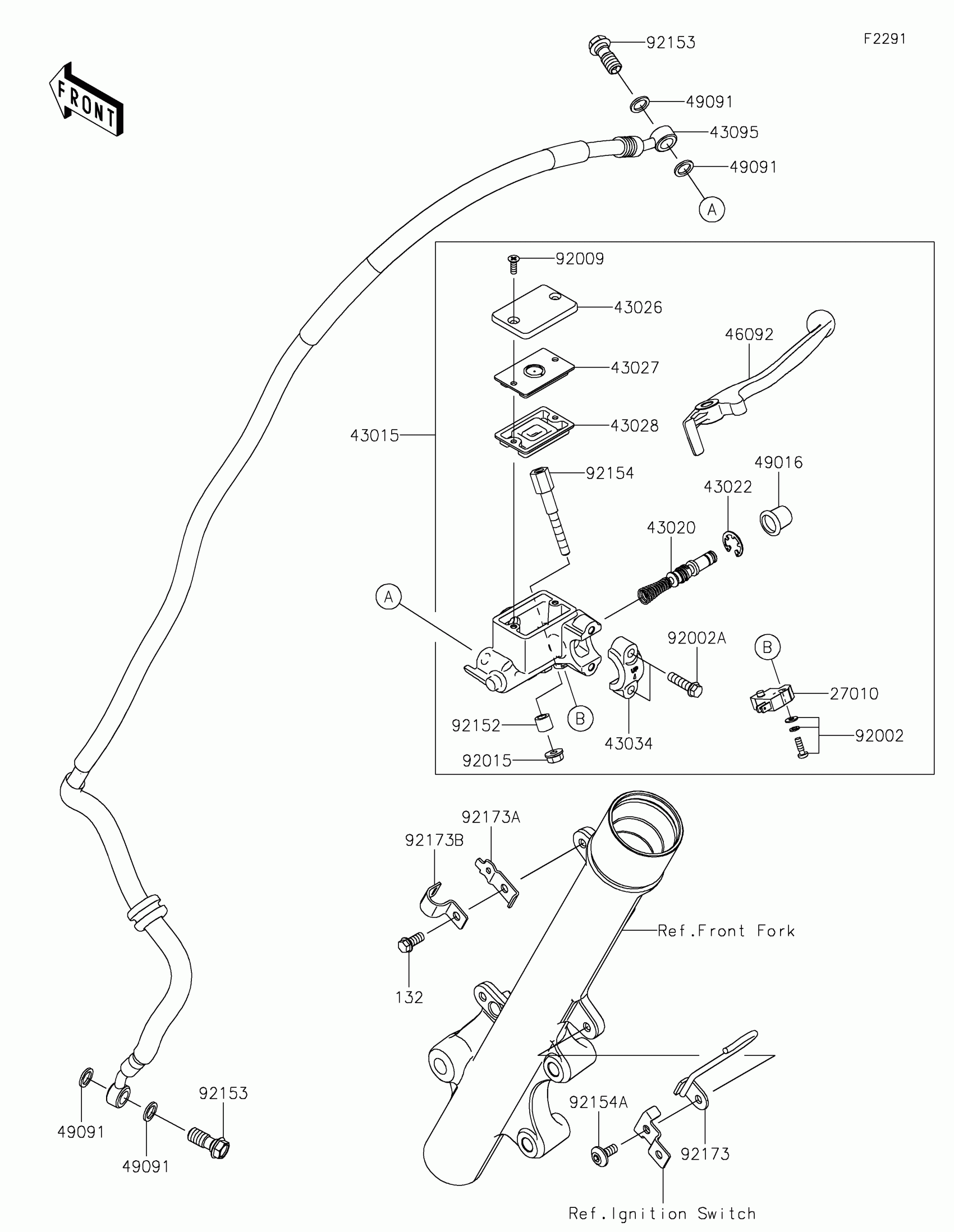

Kawasaki KLX®230 SE Front Master Cylinder Diagram

#

Description
Price

27010

SWITCH,BRAKE

27010-0873

$35.70

43015

CYLINDER-ASSY-MASTER,FR

43015-0738

$229.36

43020

PISTON-COMP-BRAKE

43020-0034

$52.23

43022

STOPPER-BRAKE,PISTON

43022-0004

$4.14

43026

CAP-BRAKE

43026-1082

$19.58

43027

PLATE-DIAPHRAGM

43027-1057

$3.69

43028

DIAPHRAGM

43028-1061

$12.27

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$14.67

43095

HOSE-BRAKE,FR M/C-FR CALIPER

43095-1735

$101.57

46092

LEVER-GRIP,FRONT BRAKE

46092-0044

$31.39

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92002

BOLT,SCREW,4X12

92002-1323

$2.99

92002A

BOLT

92002-1894

$4.18

92009

SCREW,4MM

92009-1458

$2.23

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92152

COLLAR,6.5X10.5X9.3

92152-1992

$2.98

92153

BOLT,OIL,L=23

92153-0029

$1.44

92154

BOLT

92154-1670

$17.97

92154A

BOLT,SOCKET,6X14

92154-3763

Unavailable

92173

CLAMP,BRAKE HOSE,CALIPER

92173-1972

$4.31

92173A

CLAMP,BRAKE HOSE,FORK

92173-1974

$1.22

92173B

CLAMP,BRAKE HOSE,FORK

92173-1975

$1.22

132

BOLT-FLANGED-SMALL,6X14

132BA0614

$1.13
