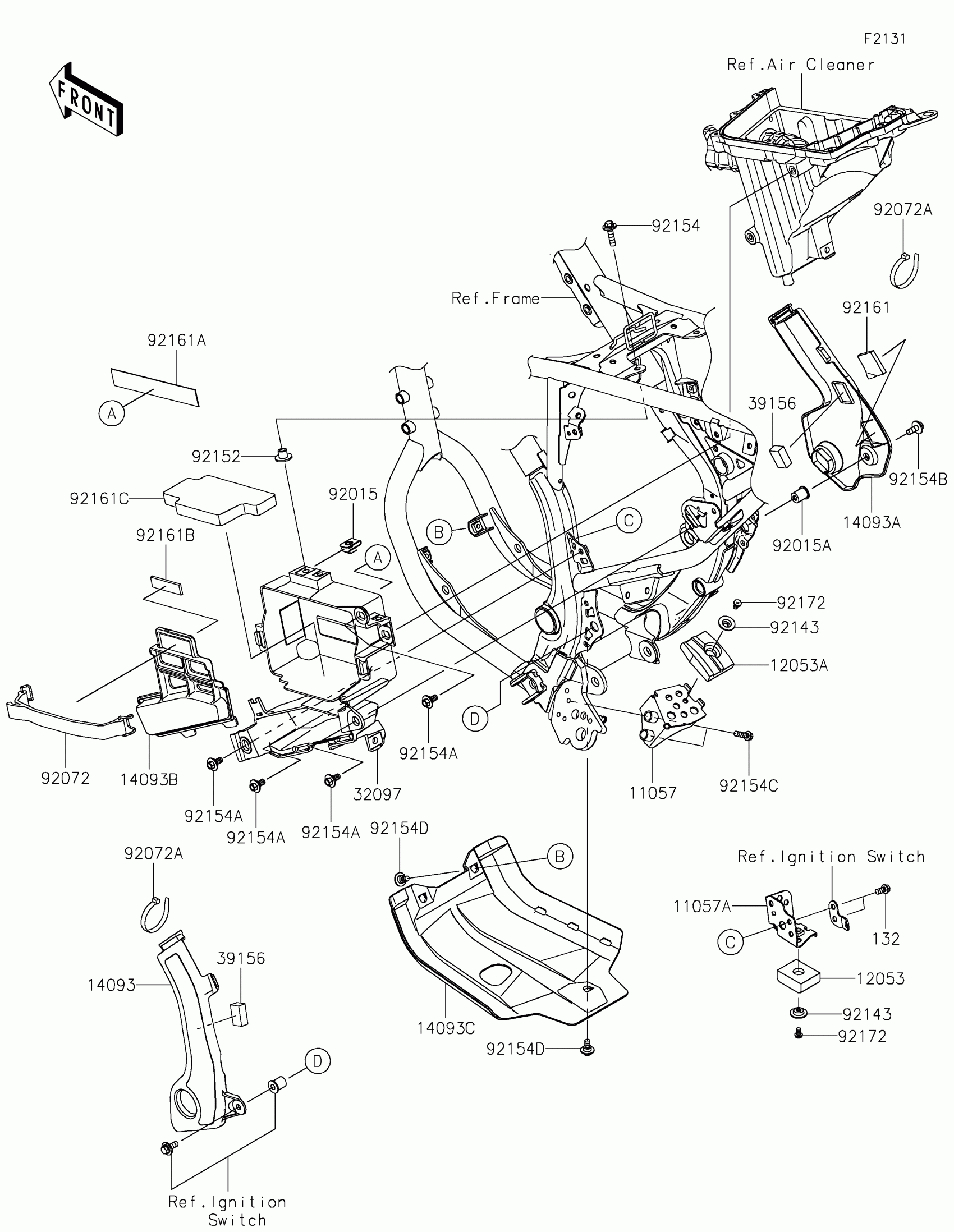

Kawasaki KLX®230 SE Frame Fittings Diagram

#

Description
Price

11057

BRACKET,LWR

11057-2065

$16.36

11057A

BRACKET,UPP

11057-2067

$13.61

12053

GUIDE-CHAIN,UPP

12053-0270

$2.27

12053A

GUIDE-CHAIN,LWR

12053-0271

$2.44

14093

COVER,FRAME,LH

14093-0858

$11.39

14093A

COVER,FRAME,RH

14093-0859

$11.39

14093B

COVER,BATTERY CASE

14093-0861

$9.34

14093C

COVER,SKID PLATE

14093-1040

$28.97

32097

CASE-BATTERY

32097-0048

$11.29

39156

PAD,15X25X10

39156-2489

$1.12

92015

NUT,6MM

92015-1602

$5.61

92015A

NUT

92015-1700

$6.55

92072

BAND,BATTERY

92072-0838

$5.27

92072A

BAND,L=202

92072-1195

$1.16

92143

COLLAR

92143-1676

$4.67

92152

COLLAR,6.5X10X10.4

92152-1688

$1.44

92154

BOLT,6X25

92154-0467

$1.66

92154A

BOLT,FLANGED,6X9

92154-0546

$2.84

92154B

BOLT,FLANGED-SMALL,6X16

92154-1183

$1.32

92154C

BOLT,FLANGED,6X20

92154-2757

$2.41

92154D

BOLT,FLANGED,6X9

92154-4084

$2.63

92161

DAMPER

92161-1591

$0.93

92161A

DAMPER,146X22X1

92161-2210

$2.12

92161B

DAMPER,49X13X3

92161-2211

$1.22

92161C

DAMPER,BATTERY

92161-2221

$16.03

92172

SCREW,5X8

92172-0119

$1.54

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97
