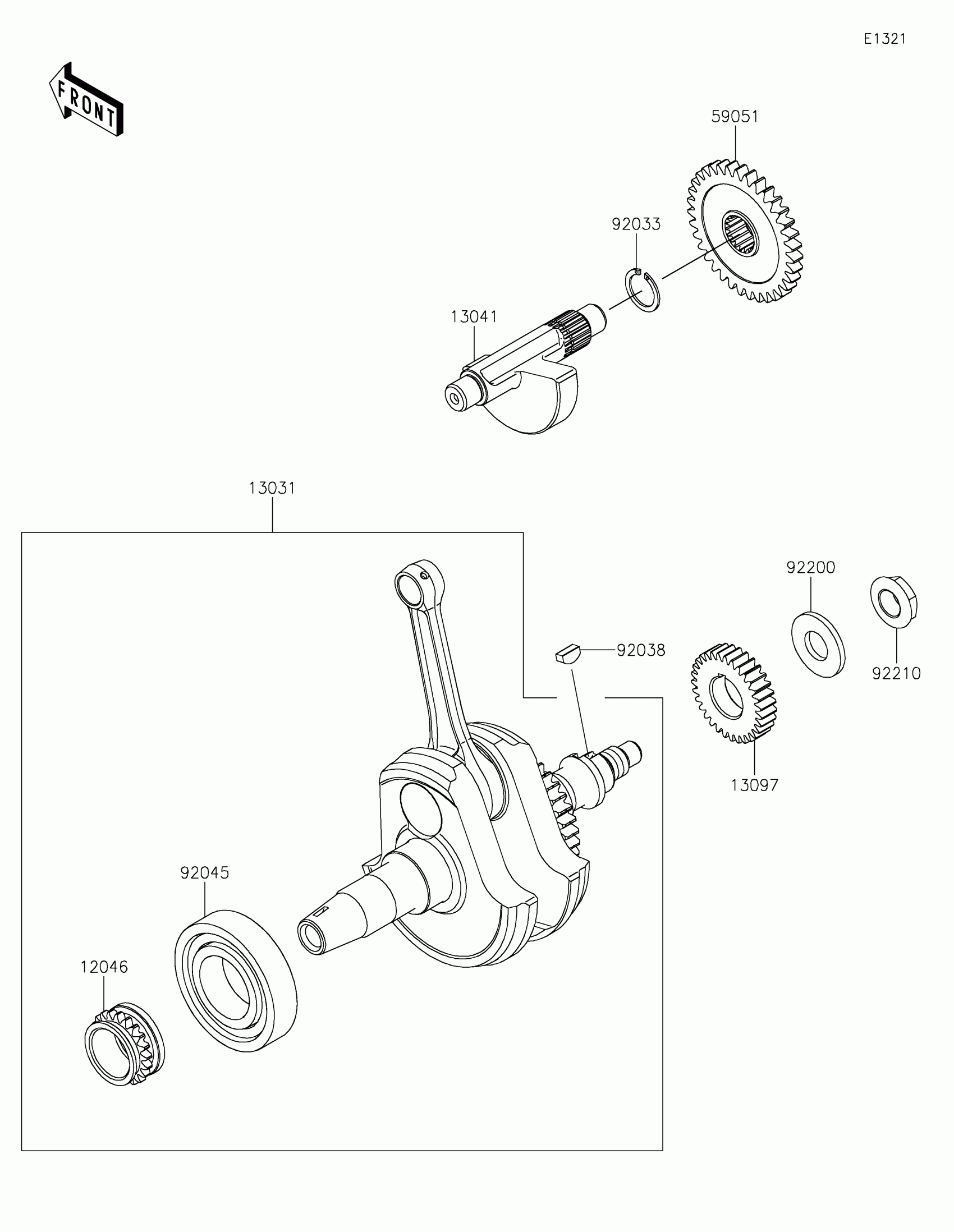

Kawasaki KLX®230 SE Crankshaft Diagram

#

Description
Price

12046

SPROCKET,21T

12046-0613

$28.89

13031

CRANKSHAFT-COMP

13031-0908

$740.18

13041

BALANCER

13041-0571

$102.25

13097

GEAR-PRIMARY SPUR,31T

13097-0603

$79.65

59051

GEAR-SPUR,BALANCER,DRIVEN,35T

59051-0838

$94.66

92033

RING-SNAP,18MM

92033-029

$7.48

92038

KEY

92038-1057

$4.80

92045

BEARING-BALL,6207CS17

92045-0906

$40.24

92200

WASHER,16.3X35X3.2

92200-0119

$4.08

92210

NUT,16MM

92210-1538

$10.73
