Description

Price

13086

WHEEL-CLUTCH

13086-0008

$165.09

13087

HUB-CLUTCH

13087-0588

$145.59

13088

PLATE-FRICTION

13088-0562

$18.76

13088A

PLATE-FRICTION

13088-0603

$19.69

13089

PLATE-CLUTCH

13089-1085

$10.86

13089A

PLATE-CLUTCH,T=1.6

13089-1094

$10.14

13089B

PLATE-CLUTCH,T=2.0

13089-1116

$11.97

13089C

PLATE-CLUTCH,T=1.2

13089-1117

$11.97

13095

HOUSING-COMP-CLUTCH

13095-0595

$239.42

13102

RELEASE-COMP-CLUTCH

13102-0078

$61.58

13114

PUSHER-CLUTCH

13114-0001

$10.86

13280

HOLDER,CLUTCH PUSHER

13280-0812

$13.39

13280A

HOLDER,CLUTCH SPRING

13280-0936

$40.25

92015

NUT,16MM

92015-1581

$15.43

92022

WASHER,16.3X29X1.75

92022-1356

$5.84

92022A

WASHER,JUDDER SPRING

92022-1974

$14.36

92022B

WASHER,JUDDER SPRING SEAT

92022-1993

$14.36

92026

SPACER,20.3X36.6X2

92026-0725

$12.85

92045

BEARING-BALL,627UMC3 J

92045-0915

$13.63

92145

SPRING

92145-1846

$14.19

92152

COLLAR,20X26.8X26.7

92152-2550

$30.99

92154

BOLT,6X25

92154-3785

$1.53

92200

WASHER,7X12.5X0.8

92200-0909

$3.49

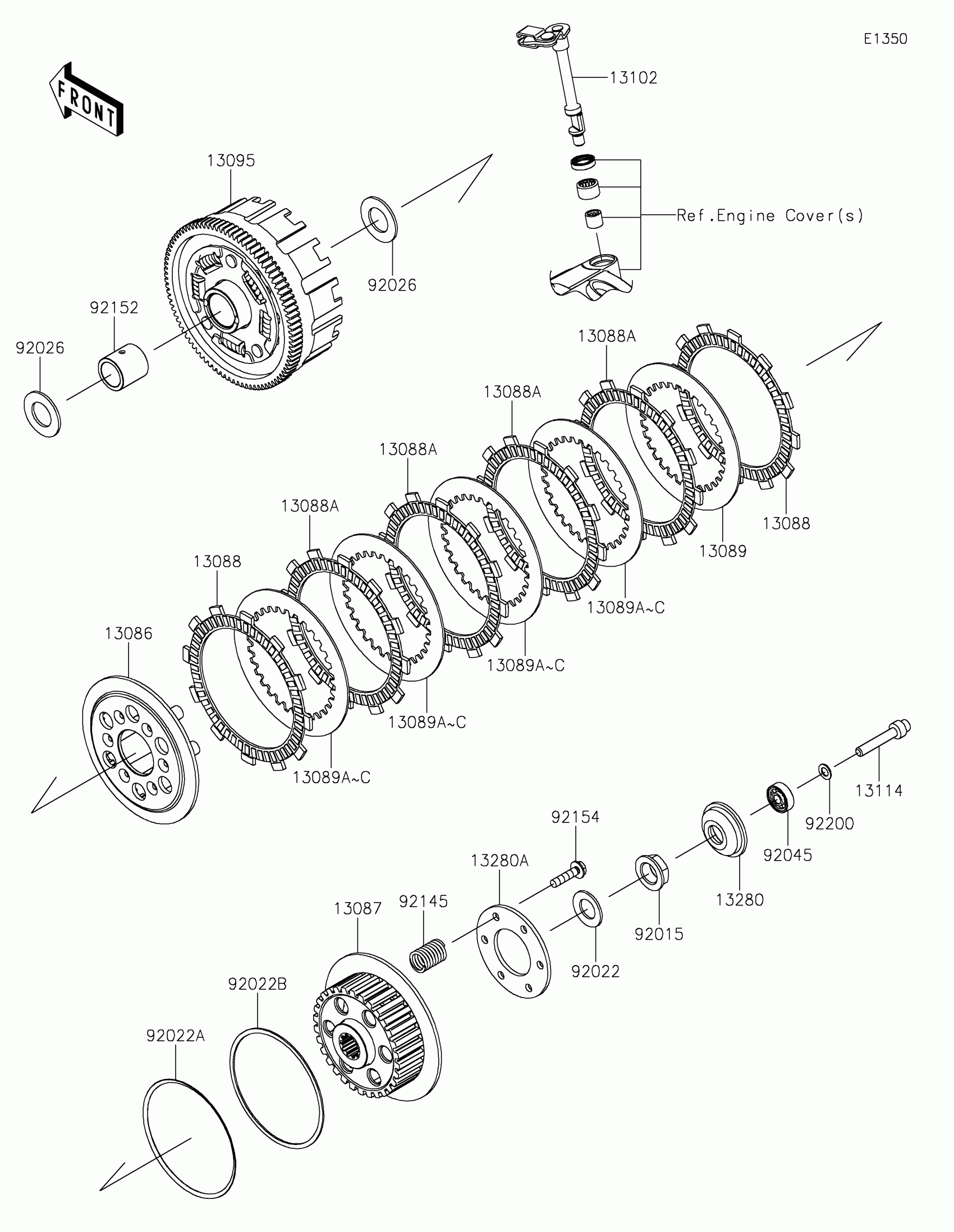

Kawasaki KLX®230 SE Clutch Diagram
