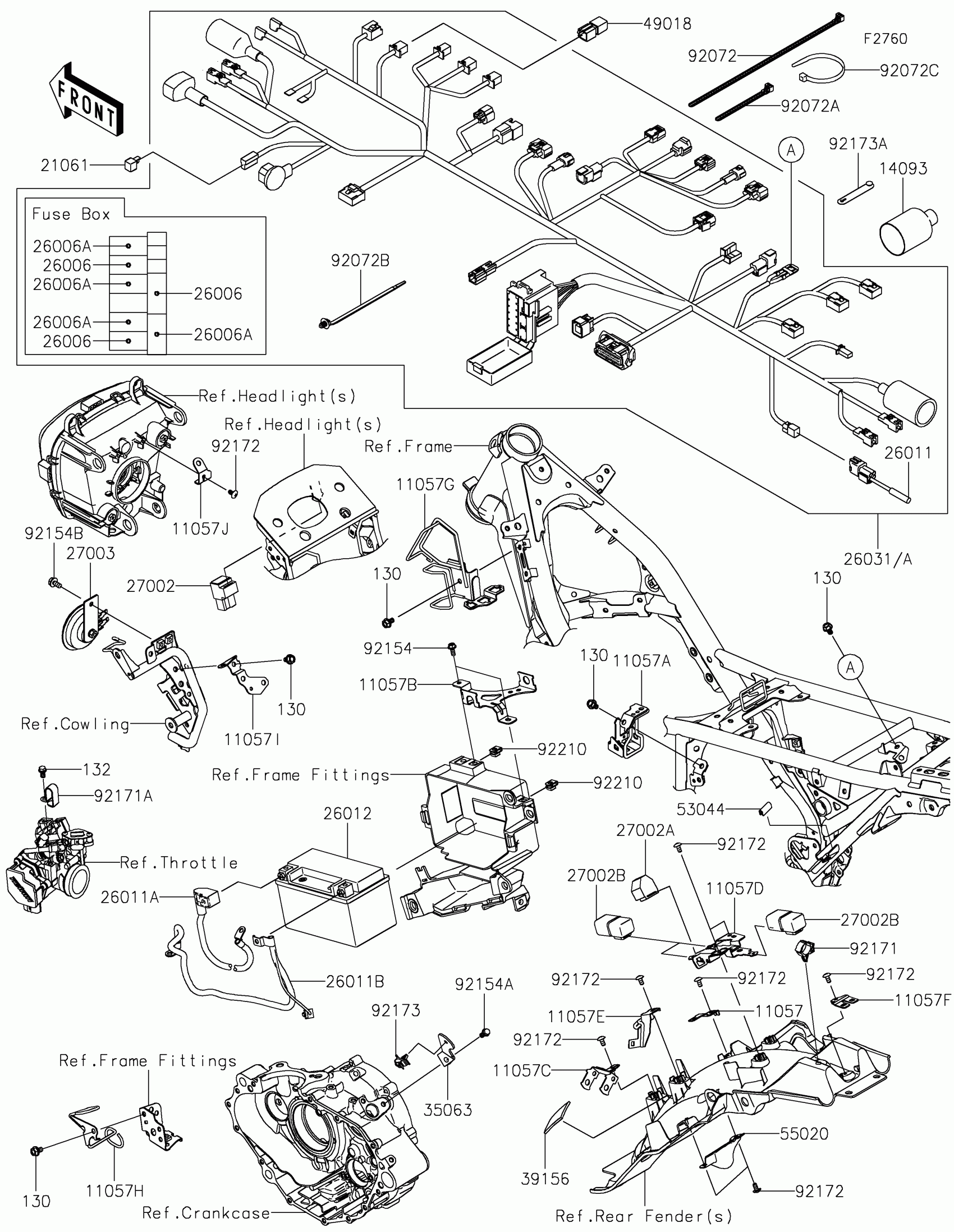

Kawasaki KLX®230 SE Chassis Electrical Equipment Diagram

#

Description
Price

11057

BRACKET,DIAG

11057-2018

$1.22

11057A

BRACKET,VEHICLE DOWN SENSOR

11057-2021

$22.58

11057B

BRACKET,ECU

11057-2022

$7.41

11057C

BRACKET,MAGNETIC SWITCH

11057-2348

$4.08

11057D

BRACKET,RELAY

11057-2349

$20.90

11057E

BRACKET,FUSE BOX

11057-2350

$2.63

11057F

BRACKET,RR HARNESS

11057-2351

$1.78

11057G

BRACKET,FR HARNESS

11057-2352

$23.22

11057H

BRACKET

11057-2463

$9.86

11057I

BRACKET,ENGINE START SWITCH

11057-2520

$2.29

11057J

BRACKET,HEAD LAMP ATTACHMENT

11057-4041

$1.93

14093

COVER,HARNESS

14093-0720

$4.07

21061

RECTIFIER

21061-1003

$30.17

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$5.34

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

$3.50

26011

WIRE-LEAD,DIAG

26011-0858

$32.60

26011A

WIRE-LEAD,BATTERY(+)

26011-1880

$90.35

26011B

WIRE-LEAD,BATTERY(-)

26011-1915

$100.77

26012

BATTERY,YTX7A-BS,12V 6.3AH

26012-0989

$184.23

26031

HARNESS,MAIN

26031-2820

$788.56

26031A

HARNESS,MAIN

26031-2822

$788.56

27002

RELAY-ASSY

27002-0012

$43.03

27002A

RELAY-ASSY,TURN SIGNAL

27002-0031

$24.24

27002B

RELAY-ASSY

27002-1086

$33.76

27003

HORN

27003-0155

$71.33

35063

STAY

35063-1476

$2.08

39156

PAD,55X30X5

39156-2451

$1.68

49018

DIODE

49018-0005

$42.75

53044

TRIM,9X6.5X20

53044-0596

$3.68

55020

GUARD,OXYGEN SENSOR

55020-2254

$5.24

92072

BAND,L=250

92072-1237

$1.80

92072A

BAND,L=140

92072-1293

$5.61

92072B

BAND,OS170-FT7(BLACK)

92072-1414

$2.97

92072C

BAND,L=152

92072-3874

Unavailable

92154

BOLT,FLANGED,5X12

92154-1215

Unavailable

92154A

BOLT,FLANGED,6X12

92154-1776

$0.69

92154B

BOLT,FLANGED,6X12

92154-2776

$2.20

92171

CLAMP,BRAKE HOSE

92171-0316

$3.08

92171A

CLAMP

92171-0911

$7.56

92172

SCREW,CROS,5X10

92172-1255

$0.47

92173

CLAMP

92173-1163

$1.39

92173A

CLAMP

92173-2199

$1.32

92210

NUT,PLATE,5MM

92210-0262

$1.20

130

BOLT-FLANGED,6X10

130BA0610

$1.12

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.47
