2022 Kawasaki KLX®230 S Front Brake Diagram

← All diagrams

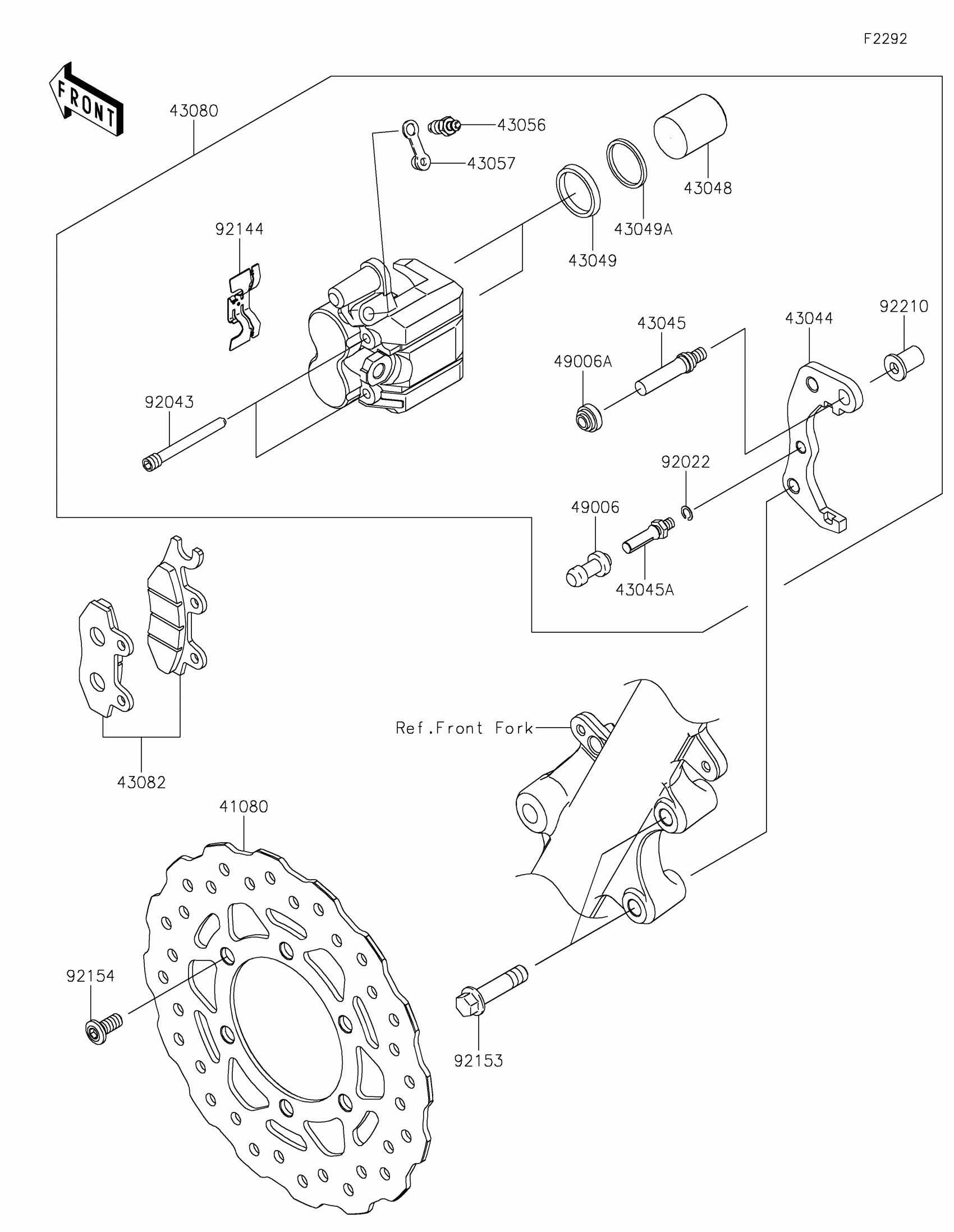

Find the part on the Front Brake diagram for your 2022 Kawasaki KLX®230 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki KLX®230 S Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC,FR

41080-0701

1

$172.23

In stock

43044

HOLDER-COMP-CALIPER

43044-0049

1

$160.46

In stock

43045

SHAFT-CALIPER

43045-0004

1

$21.58

In stock

43045A

SHAFT-CALIPER

43045-1010

1

$19.49

In stock

43048

PISTON-CALIPER

43048-0010

1

$47.25

In stock

43049

PACKING,PISTON SEAL

43049-1060

1

$15.29

In stock

43049A

PACKING,PISTON SEAL

43049-1061

1

$8.38

In stock

43056

BREATHER-BRAKE

43056-0004

1

$12.83

In stock

43057

CAP-BREATHER

43057-1001

1

$3.89

In stock

43080

CALIPER-SUB-ASSY,FR

43080-0211

1

$340.91

In stock

43082

PAD-ASSY-BRAKE

43082-0164

1

$74.33

In stock

49006

BOOT,CALIPER

49006-1088

1

$9.20

In stock

49006A

BOOT,CALIPER

49006-1242

1

$4.34

In stock

92022

WASHER,WAVE

92022-1373

1

$3.53

In stock

92043

PIN,HANGER

92043-1416

1

$14.60

In stock

92144

SPRING,PAD

92144-1847

1

$30.92

In stock

92153

BOLT,FLANGED,10X41

92153-0587

1
Out of stock

92154

BOLT,SOCKET,8X18

92154-3951

1

$3.47

In stock

92210

NUT

92210-0615

1
Out of stock
