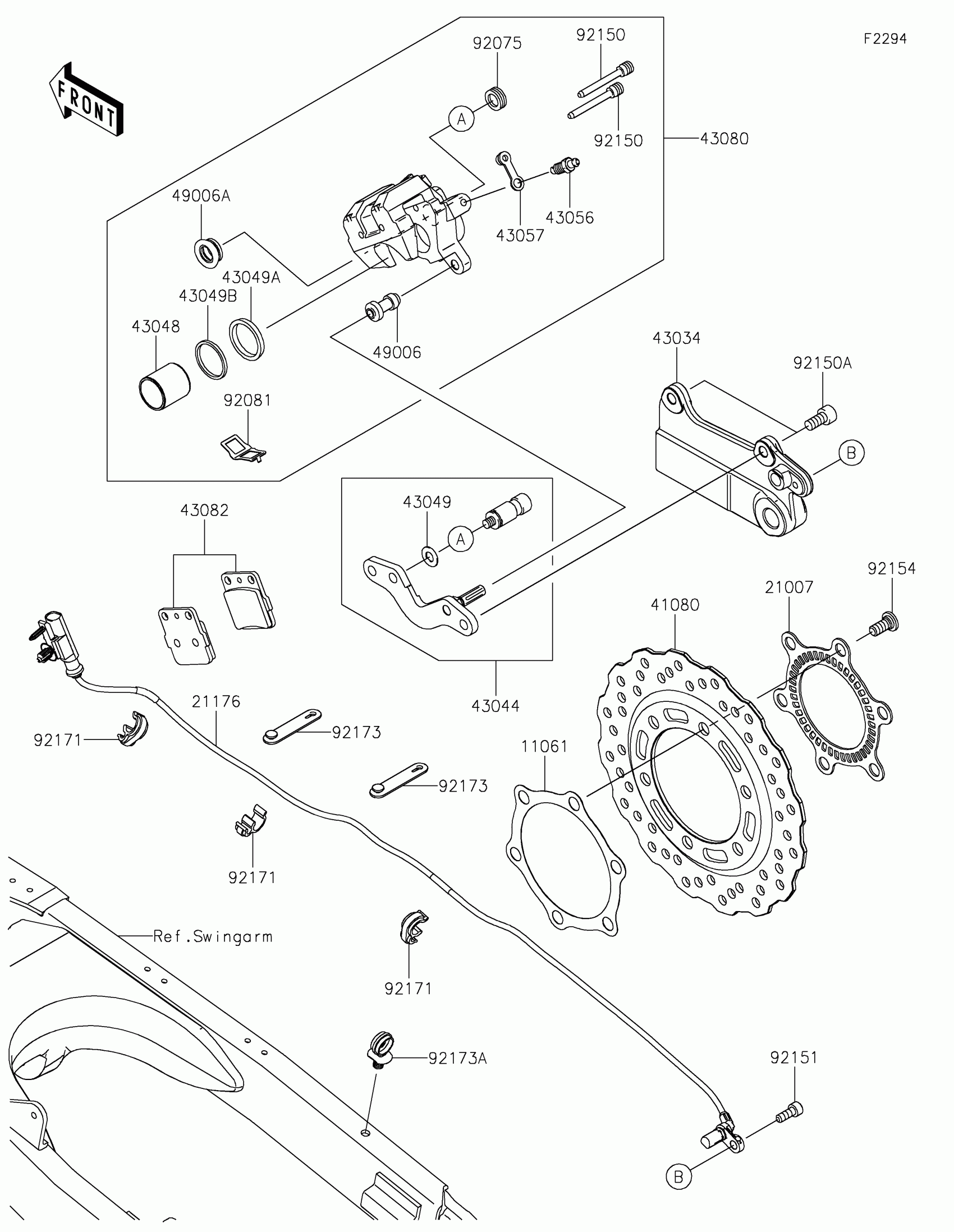

Kawasaki KLX®230 S ABS Rear Brake Diagram

#

Description
Price

11061

GASKET,DISC

11061-1349

$34.44

21007

ROTOR,SENSOR

21007-0683

$91.54

21176

SENSOR,SPEED,RR

21176-0905

$264.90

41080

DISC,RR

41080-0702

$200.23

43034

HOLDER-BRAKE

43034-0160

$101.53

43044

HOLDER-COMP-CALIPER,RR

43044-1076

$50.69

43048

PISTON-CALIPER

43048-1090

$68.10

43049

PACKING

43049-1025

$4.80

43049A

PACKING,PISTON SEAL

43049-1060

$14.67

43049B

PACKING,PISTON SEAL

43049-1061

$8.04

43056

BREATHER-BRAKE

43056-0004

$12.83

43057

CAP-BREATHER

43057-1001

$3.73

43080

CALIPER-SUB-ASSY,RR

43080-0078

$129.45

43082

PAD-ASSY-BRAKE

43082-0159

$100.23

49006

BOOT,CALIPER

49006-1088

$8.83

49006A

BOOT,CALIPER

49006-1089

$5.64

92075

DAMPER

92075-1414

$7.25

92081

SPRING,PAD

92081-1502

$8.31

92150

BOLT

92150-1144

$7.54

92150A

BOLT,SOCKET,8X16

92150-1840

$3.75

92151

BOLT

92151-1166

$1.88

92154

BOLT,SOCKET,8X18

92154-3951

$3.33

92171

CLAMP,BRAKE HOSE

92171-1819

$4.85

92173

CLAMP

92173-2198

$1.32

92173A

CLAMP

92173-2746

$8.66
