2020 Kawasaki KLX®230 Rear Master Cylinder Diagram

← All diagrams

Find the part on the Rear Master Cylinder diagram for your 2020 Kawasaki KLX®230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

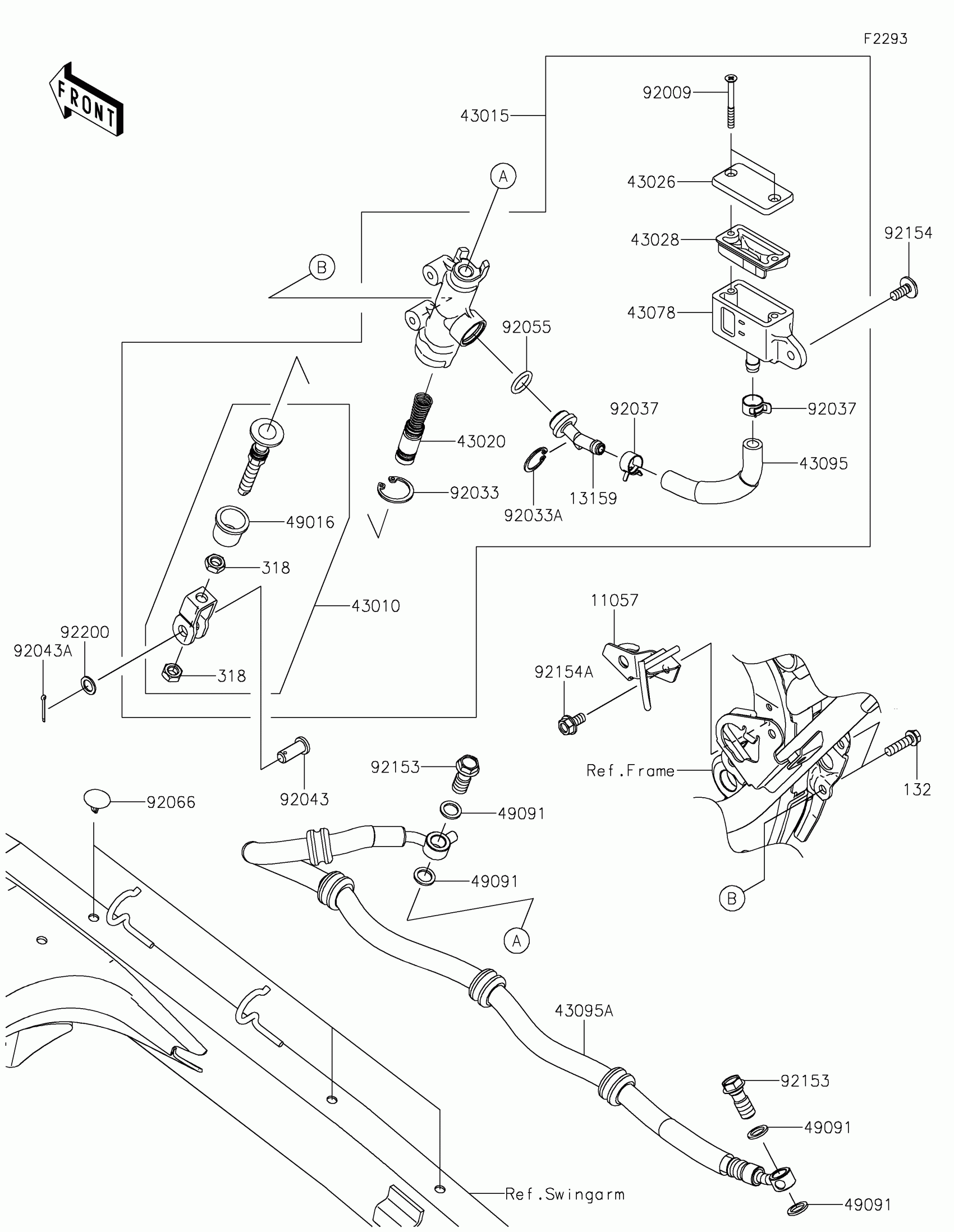

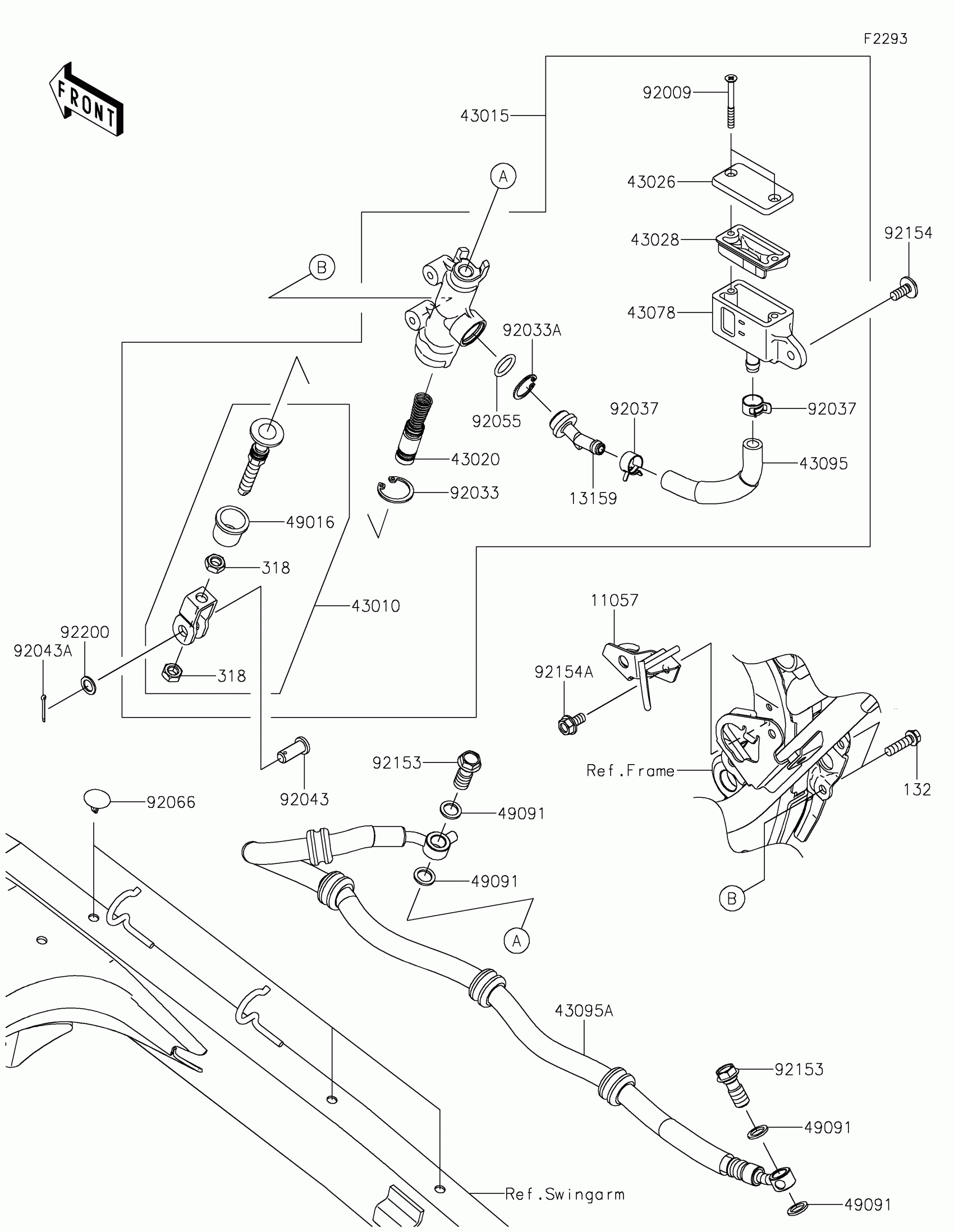

2020 Kawasaki KLX®230 Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-2396

1
Out of stock

13159

CONNECTOR

13159-0009

1
Out of stock

132

BOLT-FLANGED-SMALL,6X22

132BA0622

1
Out of stock

318

NUT-HEX-SMALL,8MM

318BA0800

1
Out of stock

43010

ROD-ASSY-BRAKE

43010-0028

1
Out of stock

43015

CYLINDER-ASSY-MASTER,RR

43015-0737

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-0027

1
Out of stock

43026

CAP-BRAKE

43026-1075

1
Out of stock

43028

DIAPHRAGM

43028-1067

1
Out of stock

43078

RESERVOIR

43078-1189

1
Out of stock

43095

HOSE-BRAKE

43095-1663

1
Out of stock

43095A

HOSE-BRAKE,RR CALIPER-RR M/C

43095-1665

1
Out of stock

49016

COVER-SEAL,BRAKE PISTON

49016-1103

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92009

SCREW,4X40

92009-1596

1
Out of stock

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

1
Out of stock

92033A

RING-SNAP,20.5MM

92033-1186

1
Out of stock

92037

CLAMP

92037-1710

1
Out of stock

92043

PIN

92043-0004

1
Out of stock

92043A

PIN,COTTER,2.0X15

92043-0766

1
Out of stock

92055

RING-O,14.8X2.4

92055-0741

1
Out of stock

92066

PLUG

92066-0934

1
Out of stock

92153

BOLT,OIL,L=23

92153-0029

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-1202

1
Out of stock

92154A

BOLT,FLANGED,6X12

92154-2776

1
Out of stock

92200

WASHER,8.5X13X1

92200-1980

1
Out of stock
