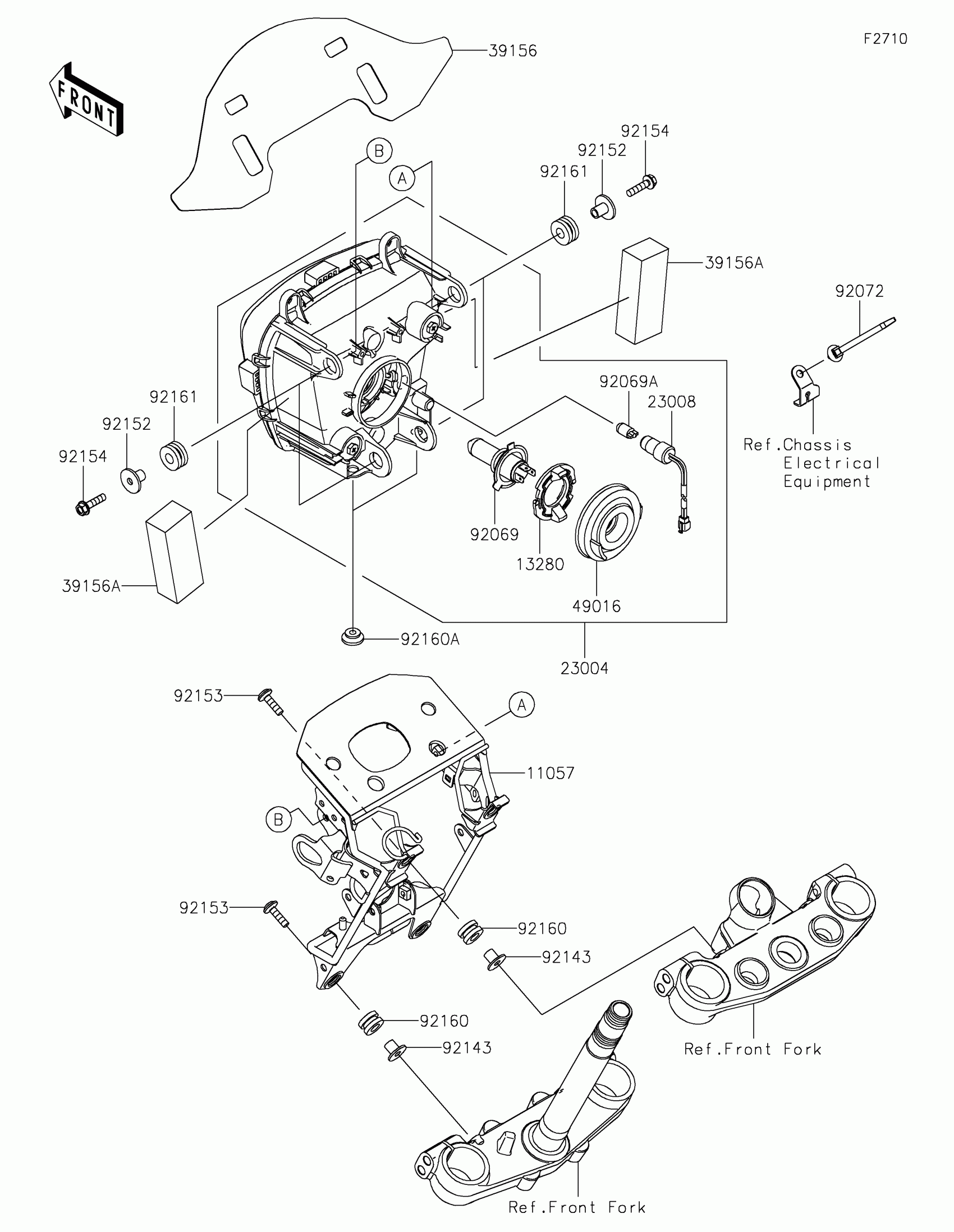

Kawasaki KLX®230 Headlight(s) Diagram

Description

Price

11057

BRACKET,HEAD LAMP

11057-4020

$239.33

13280

HOLDER

13280-0902

$4.25

23004

LAMP-HEAD

23004-0396

$349.87

23008

SOCKET-ASSY,POSITION

23008-0197

$14.25

39156

PAD

39156-2564

$17.36

39156A

PAD,90X25X35

39156-2572

$5.92

49016

COVER-SEAL

49016-0649

$3.24

92069

BULB,12V 60/55W,H4

92069-0097

$17.12

92069A

BULB,12V 5W

92069-0098

$15.05

92072

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92143

COLLAR

92143-1353

$6.54

92152

COLLAR,6.5X10X15.3

92152-1793

$7.75

92153

BOLT,SOCKET,6X22

92153-0574

$1.85

92154

BOLT,FLANGED,6X25

92154-2774

$2.59

92160

DAMPER,10X20X12

92160-1167

$3.57

92160A

DAMPER

92160-1613

$2.84

92161

DAMPER,10X24X12

92161-2112

$3.81
