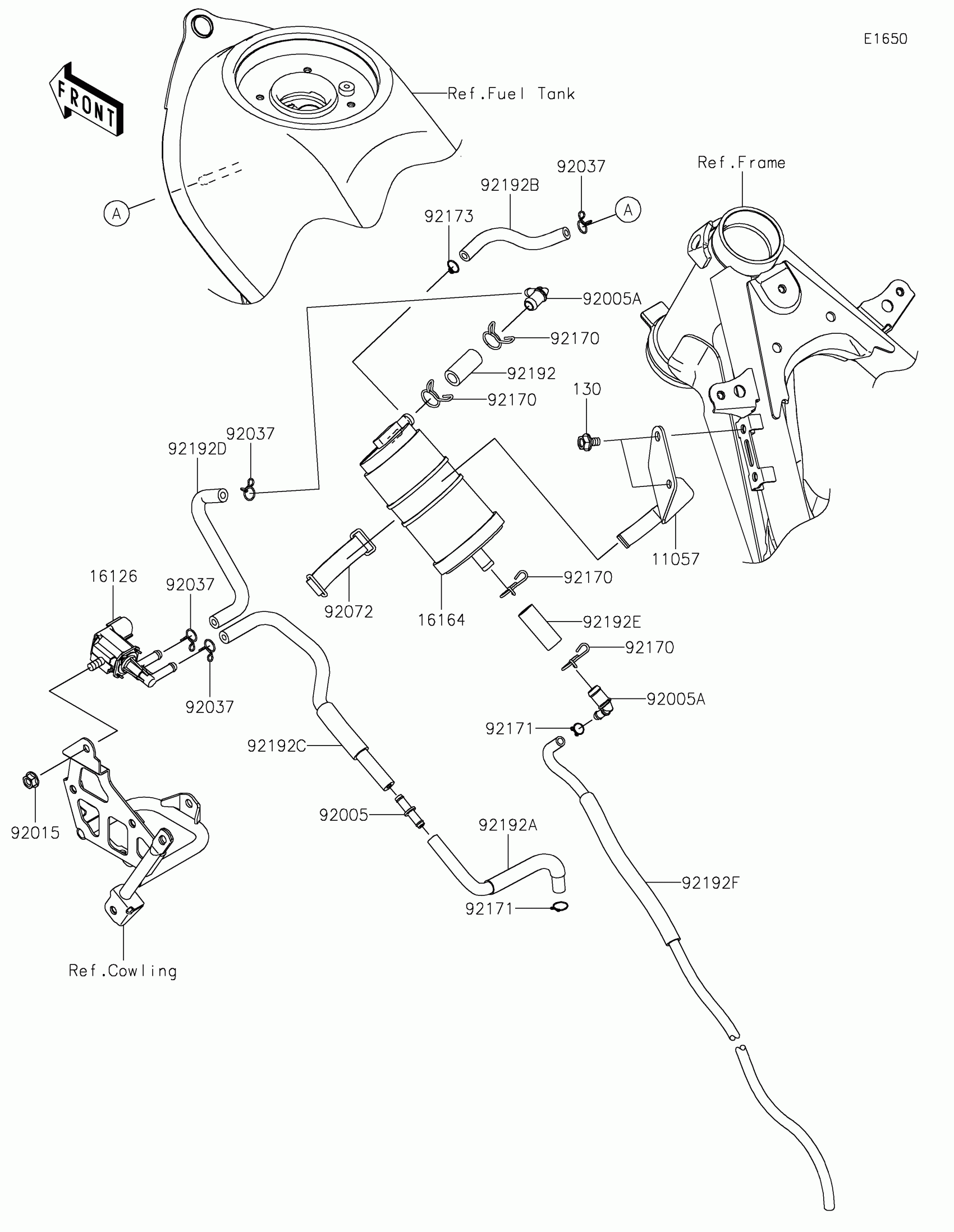

Kawasaki KLX®230 Fuel Evaporative System(CA) Diagram

Description

Price

11057

BRACKET,CANISTER

11057-2428

$11.41

130

BOLT-FLANGED,6X10

130BA0610

$0.97

16126

VALVE,SOLENOID

16126-0705

$109.25

16164

CANISTER

16164-0704

$138.03

92005

FITTING

92005-0721

$8.85

92005A

FITTING

92005-0753

$4.42

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92037

CLAMP

92037-1712

$3.81

92072

BAND,L=50

92072-1419

$12.21

92170

CLAMP

92170-1695

$2.27

92171

CLAMP

92171-0573

$1.20

92173

CLAMP

92173-1190

$2.10

92192

TUBE,9X14.4X30

92192-1757

$15.39

92192A

TUBE,PCV-THB

92192-1939

$40.09

92192B

TUBE,FUEL TANK-CANISTER

92192-1973

$30.21

92192C

TUBE,PCV-THROTTLE BODY

92192-1974

$40.57

92192D

TUBE,FITTING-PCV

92192-1975

$26.17

92192E

TUBE,DRAIN,9X14X36

92192-1982

$1.22

92192F

TUBE,DRAIN

92192-2310

$13.81
