2026 Kawasaki KLX®230 DF ABS Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2026 Kawasaki KLX®230 DF ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

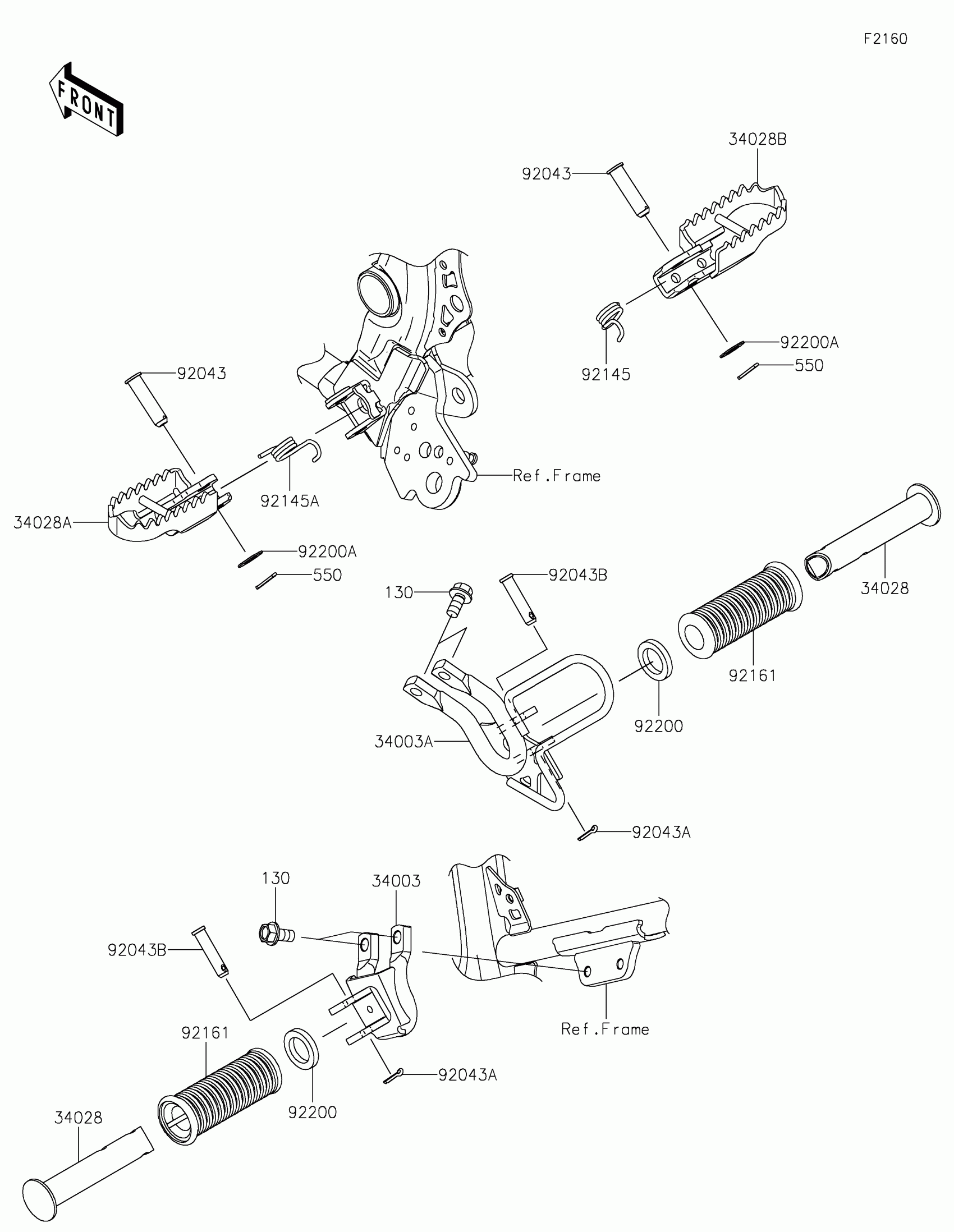

2026 Kawasaki KLX®230 DF ABS Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34003

HOLDER-STEP,LH,F.S.BLACK

34003-0183-18R

1
Out of stock

34003A

HOLDER-STEP,RH,F.S.BLACK

34003-0206-18R

1
Out of stock

34028

STEP,RR

34028-0007

1

$8.25

In stock

34028A

STEP,LH

34028-0421

1
Out of stock

34028B

STEP,RH

34028-0422

1
Out of stock

92043

PIN,10X35

92043-0744

1
Out of stock

92043A

PIN,COTTER,2.5X18

92043-0771

1
Out of stock

92043B

PIN

92043-1714

1
Out of stock

92145

SPRING,STEP,RH

92145-2300

1
Out of stock

92145A

SPRING,STEP,LH

92145-2301

1
Out of stock

92161

DAMPER,REAR STEP

92161-0866

1
Out of stock

92200

WASHER,20X30X4.5

92200-0869

1
Out of stock

92200A

WASHER,10.5X20X1.0

92200-0870

1
Out of stock

130

BOLT-FLANGED,8X16

130CB0816

1

$1.83

In stock

550

PIN-COTTER,2.0X18

550AA2018

1
Out of stock
