2026 Kawasaki KLX®230 DF ABS AIR Cleaner Diagram

← All diagrams

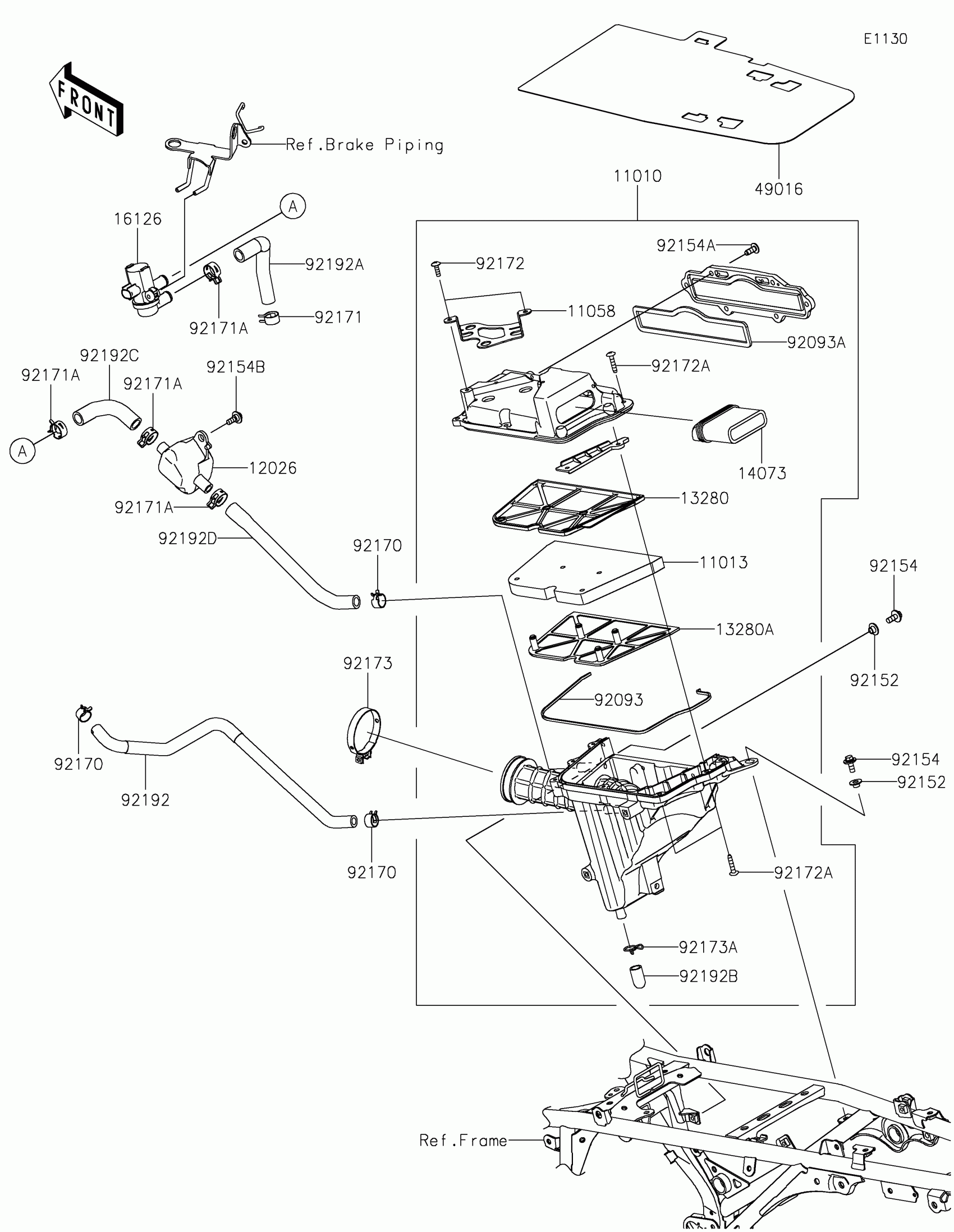

Find the part on the AIR Cleaner diagram for your 2026 Kawasaki KLX®230 DF ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Kawasaki KLX®230 DF ABS AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR

11010-1845

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-0790

1
Out of stock

11058

BRACKET,ECU

11058-1337

1
Out of stock

12026

CHAMBER

12026-0026

1
Out of stock

13280

HOLDER,UPP

13280-0945

1
Out of stock

13280A

HOLDER,LWR

13280-0946

1
Out of stock

14073

DUCT,IN

14073-1931

1
Out of stock

16126

VALVE,AIR SWITCH

16126-0750

1
Out of stock

49016

COVER-SEAL

49016-0729

1
Out of stock

92093

SEAL

92093-0727

1
Out of stock

92093A

SEAL

92093-0728

1
Out of stock

92152

COLLAR,6.3X8.3X6.2

92152-2586

1
Out of stock

92154

BOLT,FLANGED-SMALL,6X16

92154-1183

1
Out of stock

92154A

BOLT,6X16

92154-3970

1
Out of stock

92154B

BOLT,FLANGED,6X12

92154-7289

1
Out of stock

92170

CLAMP,BRAKE HOSE

92170-1434

1

$11.81

In stock

92171

CLAMP

92171-0533

1

$2.71

In stock

92171A

CLAMP,18.8MM

92171-2056

1
Out of stock

92172

SCREW,5X16

92172-0908

1
Out of stock

92172A

SCREW

92172-1291

1
Out of stock

92173

CLAMP

92173-2191

1
Out of stock

92173A

CLAMP,14MM

92173-2474

1
Out of stock

92192

TUBE,BLOW-BY

92192-1929

1
Out of stock

92192A

TUBE,ASWV-HEAD

92192-1930

1
Out of stock

92192B

TUBE

92192-2582

1
Out of stock

92192C

TUBE,CHAMBER-ASWV

92192-2723

1
Out of stock

92192D

TUBE,A/C-CHAMBER

92192-2724

1
Out of stock
