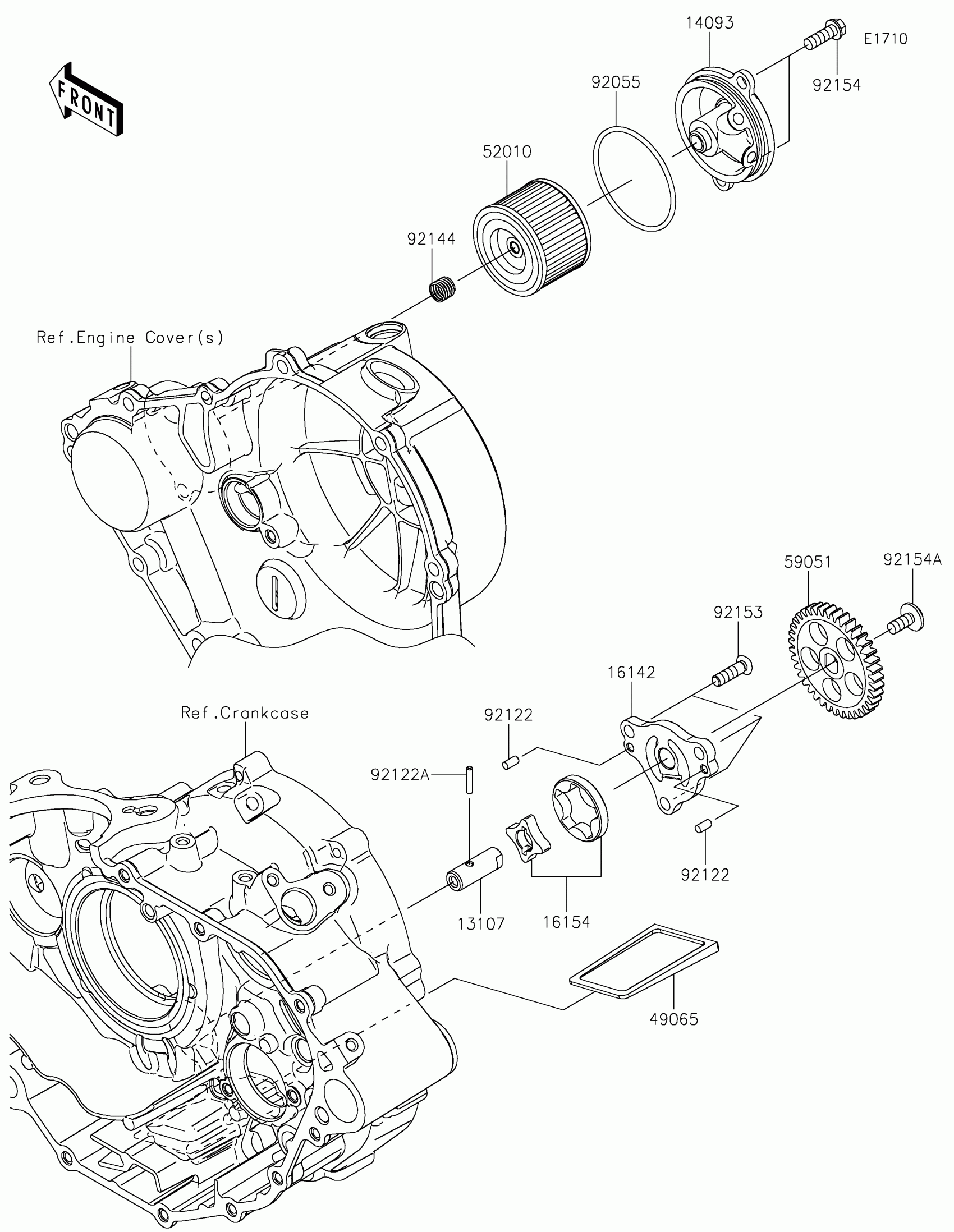

Kawasaki KLX®230 ABS Oil Pump Diagram

Description

Price

13107

SHAFT,OIL PUMP

13107-0891

$25.51

14093

COVER,OIL FILTER

14093-0786

$34.61

16142

COVER-PUMP,OIL

16142-0760

$29.50

16154

ROTOR-PUMP

16154-0747

$35.95

49065

FILTER-OIL

49065-1058

$9.70

52010

ELEMENT-OIL FILTER

52010-1053

$6.94

59051

GEAR-SPUR,39T

59051-0819

$45.65

92055

RING-O,52.6X2.4

92055-1577

$3.57

92122

ROLLER,4X8

92122-0557

$1.10

92122A

ROLLER,3X15.8

92122-1126

$3.53

92144

SPRING

92144-1761

$3.54

92153

BOLT,TORX,6X20

92153-1653

$1.81

92154

BOLT,FLANGED,6X18

92154-1775

$0.60

92154A

BOLT,SOCKET,6X14

92154-2731

$1.81
