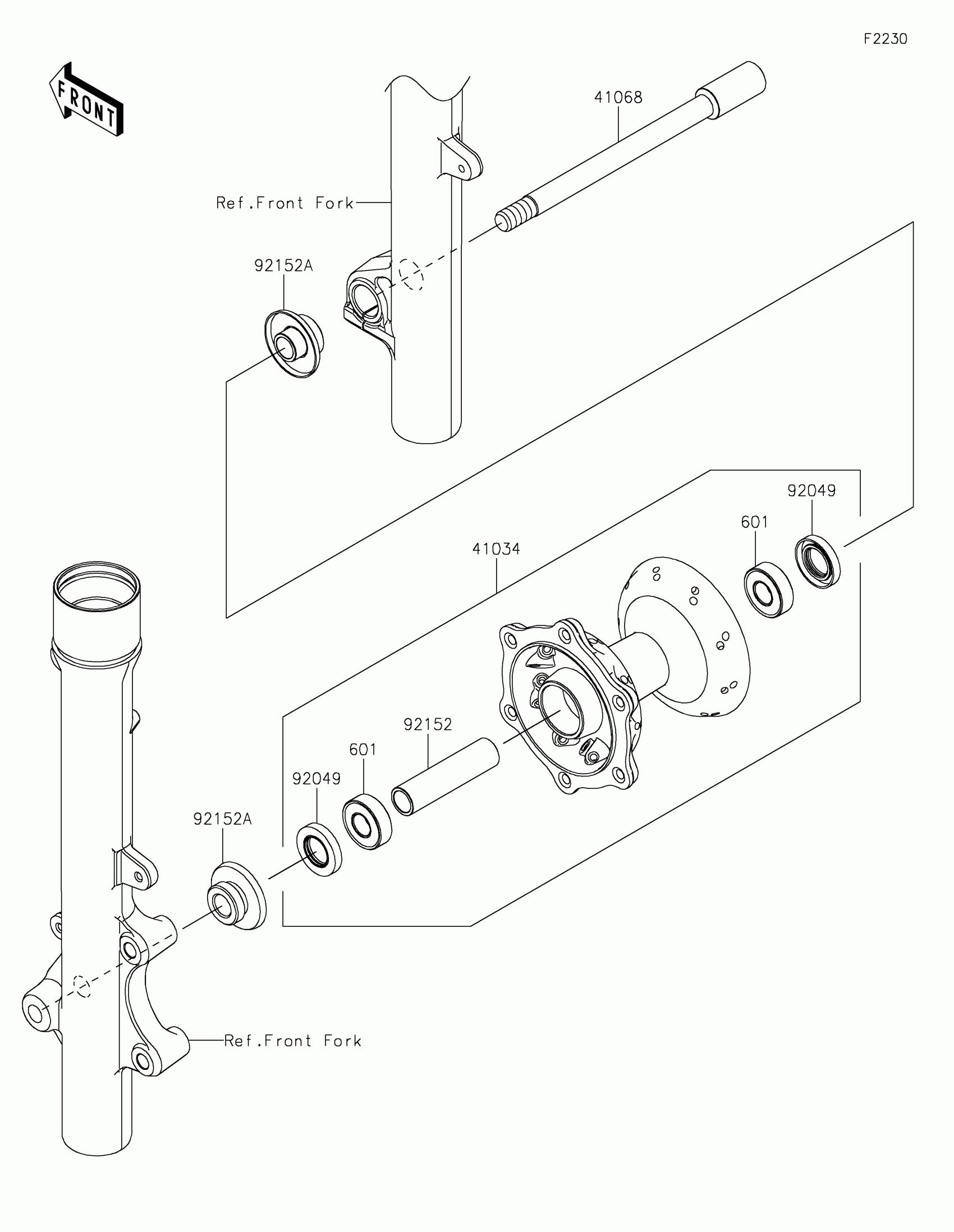

Kawasaki KLX®230 ABS Front Hub Diagram

#

Description

Price

41034

DRUM-ASSY,FR

41034-0600

$421.06

41068

AXLE,FR,15X188

41068-0650

$122.72

601

BEARING-BALL

601B6202UU

$17.77

92049

SEAL-OIL

92049-0114

$10.03

92152

COLLAR,15.2X20X79

92152-2543

$20.25

92152A

COLLAR

92152-2544

$35.75
