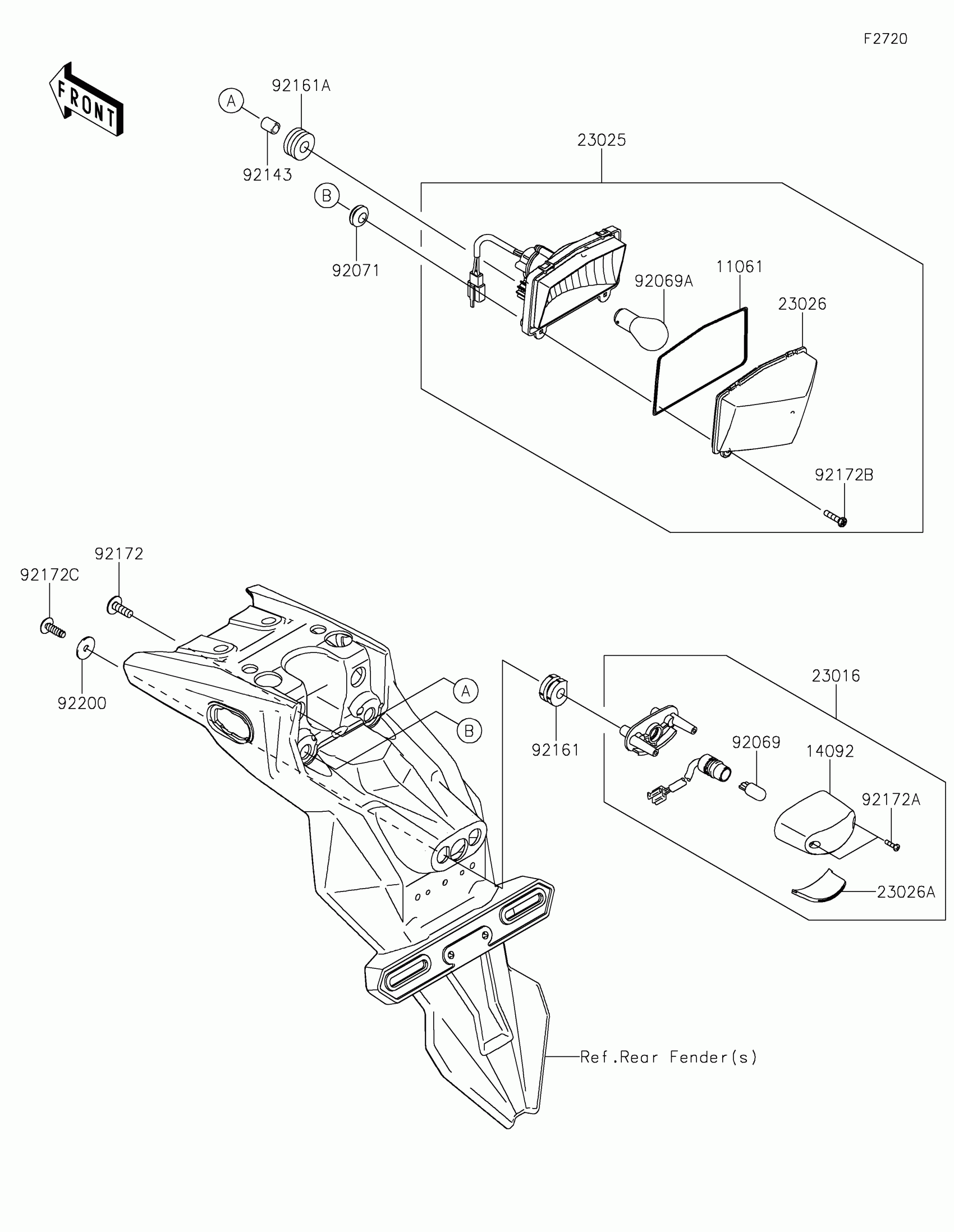

Kawasaki KLX®150L Taillight(s) Diagram

Description

Price

11061

GASKET,TAIL LAMP LENS

11061-0393

$9.34

14092

COVER,LICENSE LAMP

14092-0001

$20.17

23016

LAMP-ASSY,LICENCE

23016-0608

$73.13

23025

LAMP-TAIL

23025-0355

$65.60

23026

LENS,TAIL LAMP

23026-0024

$17.75

23026A

LENS,LICENCE LAMP

23026-0028

$29.34

92069

BULB,12V 5W

92069-1016

$4.88

92069A

BULB,12V 21/5W

92069-1084

$5.61

92071

GROMMET

92071-024

$4.14

92143

COLLAR,6.8X10X13

92143-1825

$0.78

92160

DAMPER

92160-1162

$3.81

92161

DAMPER

92161-0776

$4.18

92172

SCREW,6X18

92172-0192

$10.83

92172A

SCREW,TAPPING,2.9X13

92172-0343

$1.32

92172B

SCREW,4.2X19

92172-0411

Unavailable

92172C

SCREW,5X16

92172-0834

$2.19

92200

WASHER,5.5X20X1.2

92200-0585

$4.00
