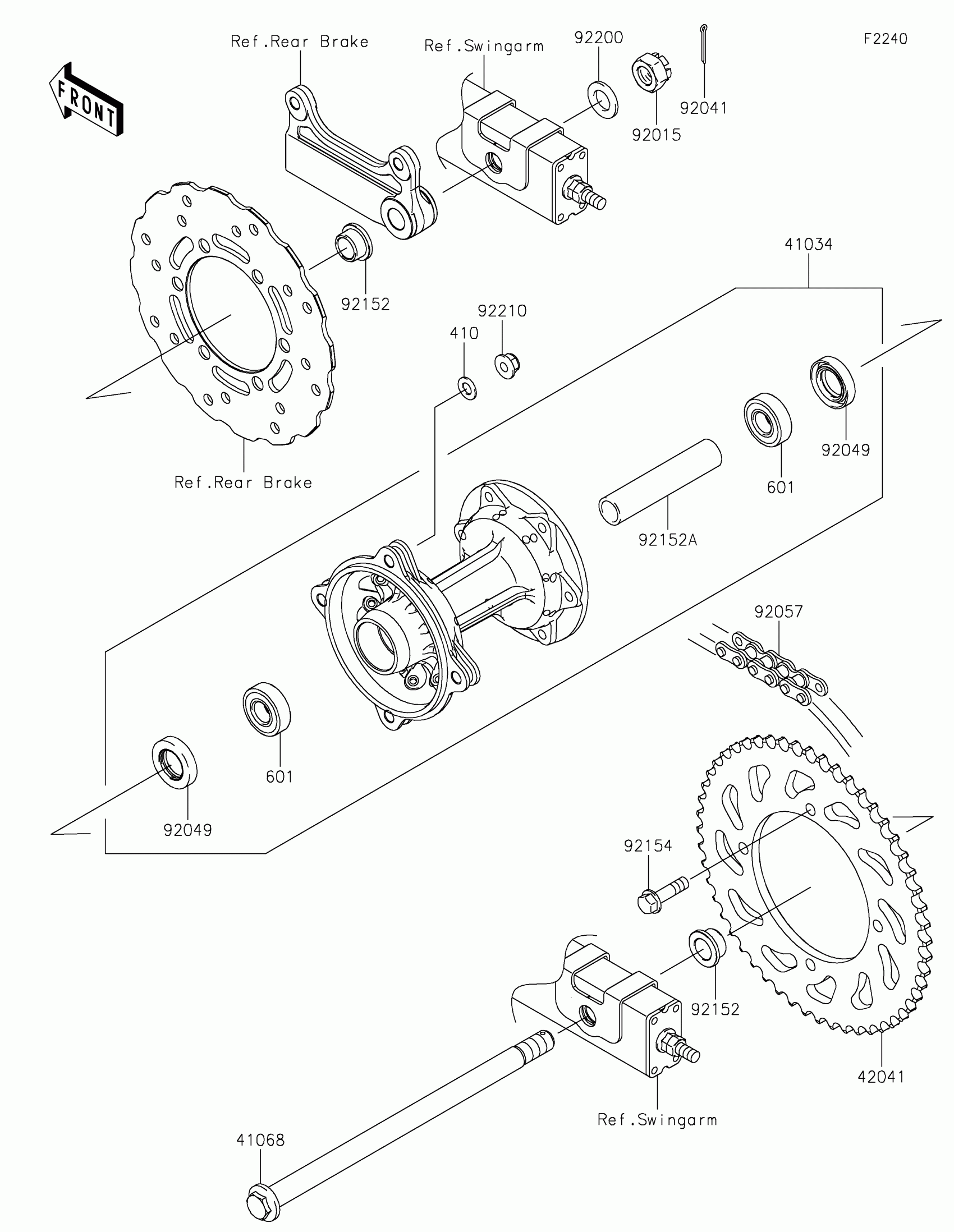

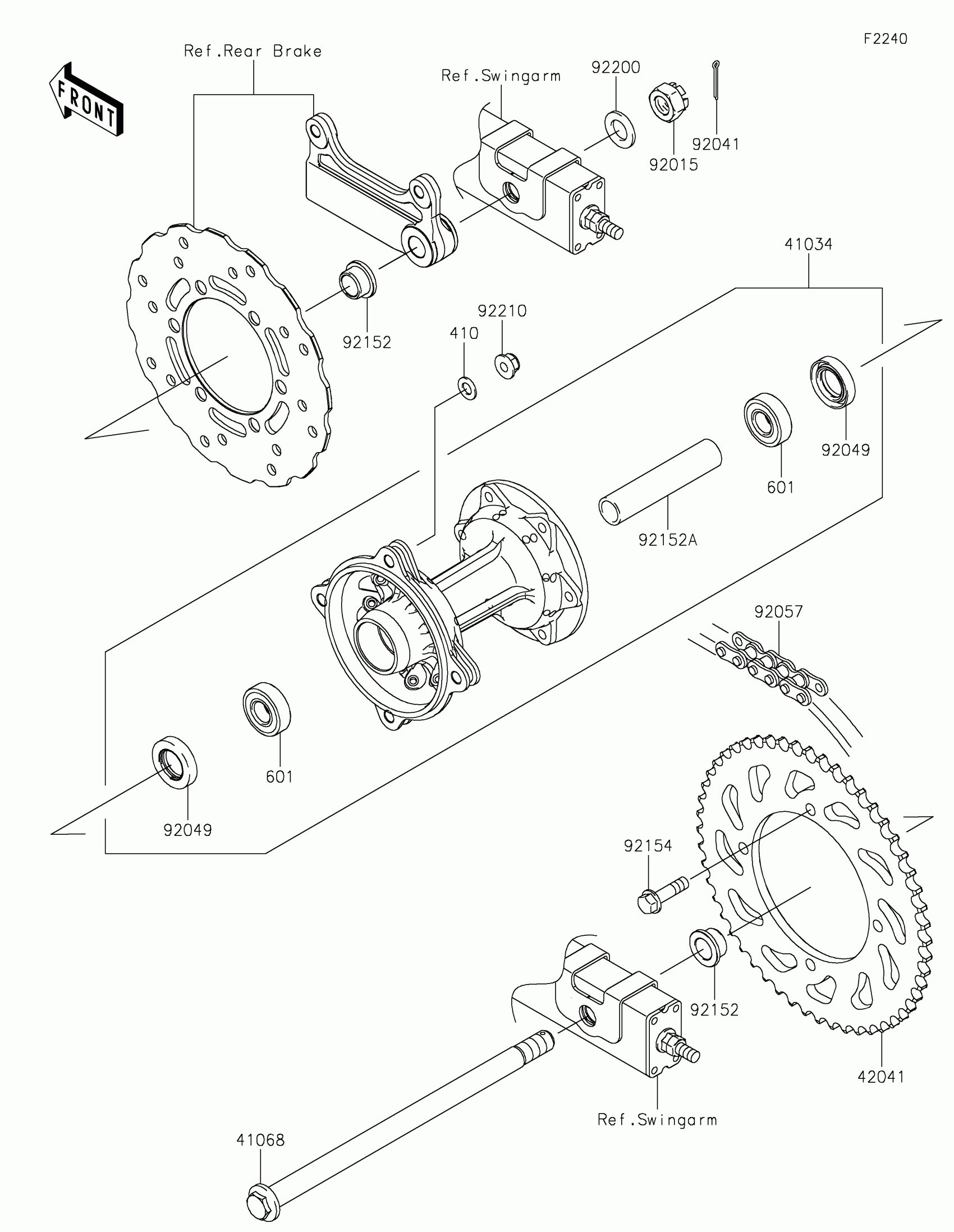

Kawasaki KLX®150L Rear Hub Diagram

Description

Price

41034

DRUM-ASSY,RR

41034-0596

$268.67

41068

AXLE,RR,14X264.5

41068-0075

$78.76

42041

SPROCKET-HUB,52T

42041-0146

Unavailable

92015

NUT,CASTLE,14MM

92015-1765

$7.49

92041

COTTER,3X35

92041-0010

$1.47

92049

SEAL-OIL

92049-0114

$10.03

92057

CHAIN,DRIVE,428HX132L

92057-0642

Unavailable

92152

COLLAR,15.1X20X12.8

92152-2246

$14.14

92152A

COLLAR,15.1X20X106

92152-2493

$15.15

92154

BOLT,FLANGED,8X30

92154-3760

$5.25

92200

WASHER,14.2X26X3.2

92200-0873

$3.58

92210

NUT,8MM

92210-0570

$2.12

410

WASHER-PLAIN-SMALL,8MM

410AA0800

$0.81

601

BEARING-BALL

601B6202UU

$17.77
