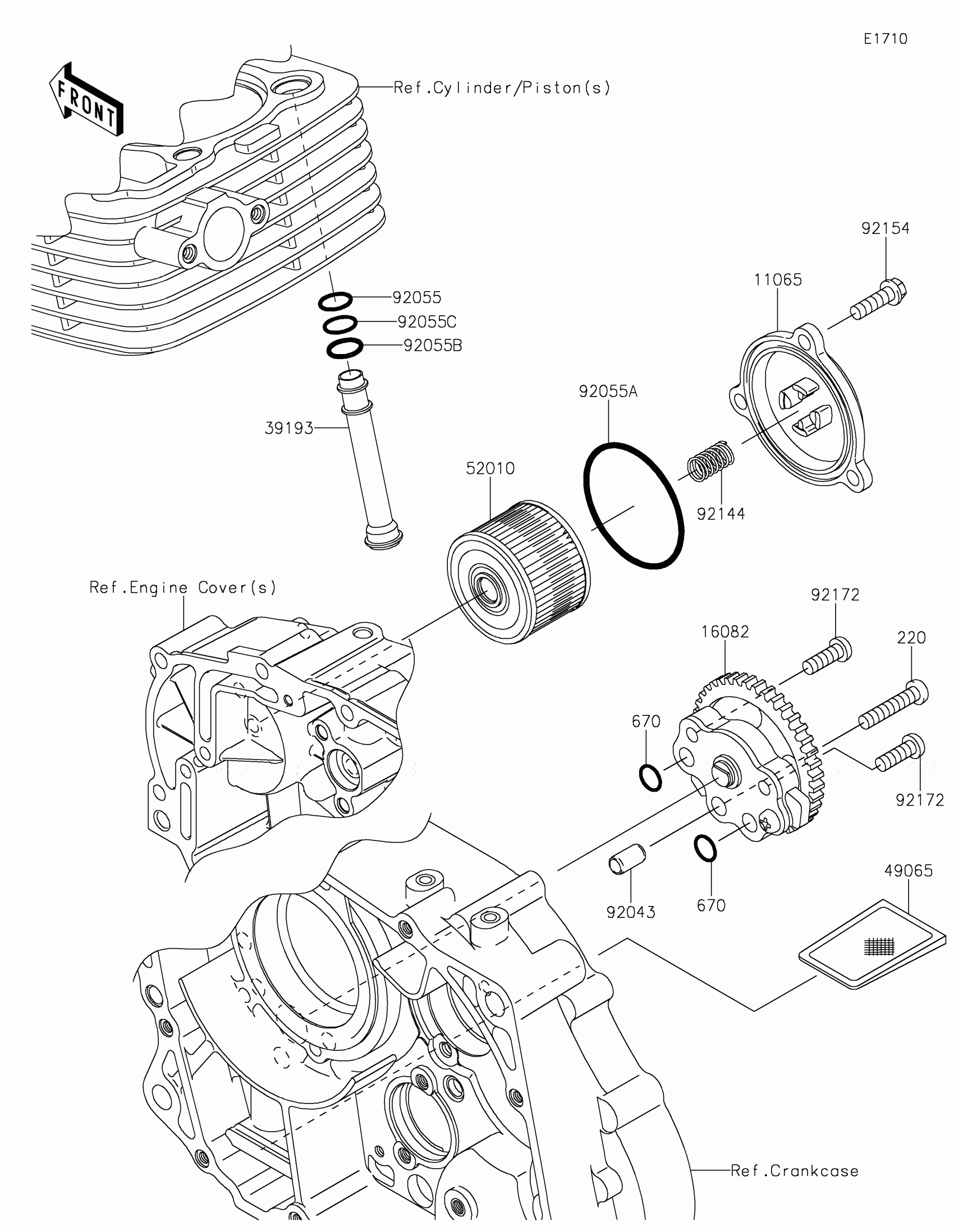

Kawasaki KLX®150L Oil Pump Diagram

Description

Price

11065

CAP

11065-0818

$20.46

16082

PUMP-ASSY-OIL

16082-0040

$137.13

39193

PIPE-OIL

39193-0578

$5.17

49065

FILTER-OIL

49065-0028

$9.29

52010

ELEMENT-OIL FILTER

52010-0552

Unavailable

92043

PIN,6.2X8X14

92043-0099

$2.82

92055

RING-O,9.8X1.9

92055-0061

$1.85

92055A

RING-O,59.6X2.4

92055-0190

$2.74

92055B

RING-O,12.8X1.9

92055-0773

$3.51

92055C

RING-O,9.8X2.4

92055-1150

$6.18

92144

SPRING

92144-1892

$2.27

92154

BOLT,FLANGED,6X20

92154-1219

$2.05

92172

SCREW,6X18

92172-0831

$3.20

220

SCREW-PAN-CROS,6X30

220AA0630

$2.79

670

O RING,9.8X1.9

670B1510

$3.29
