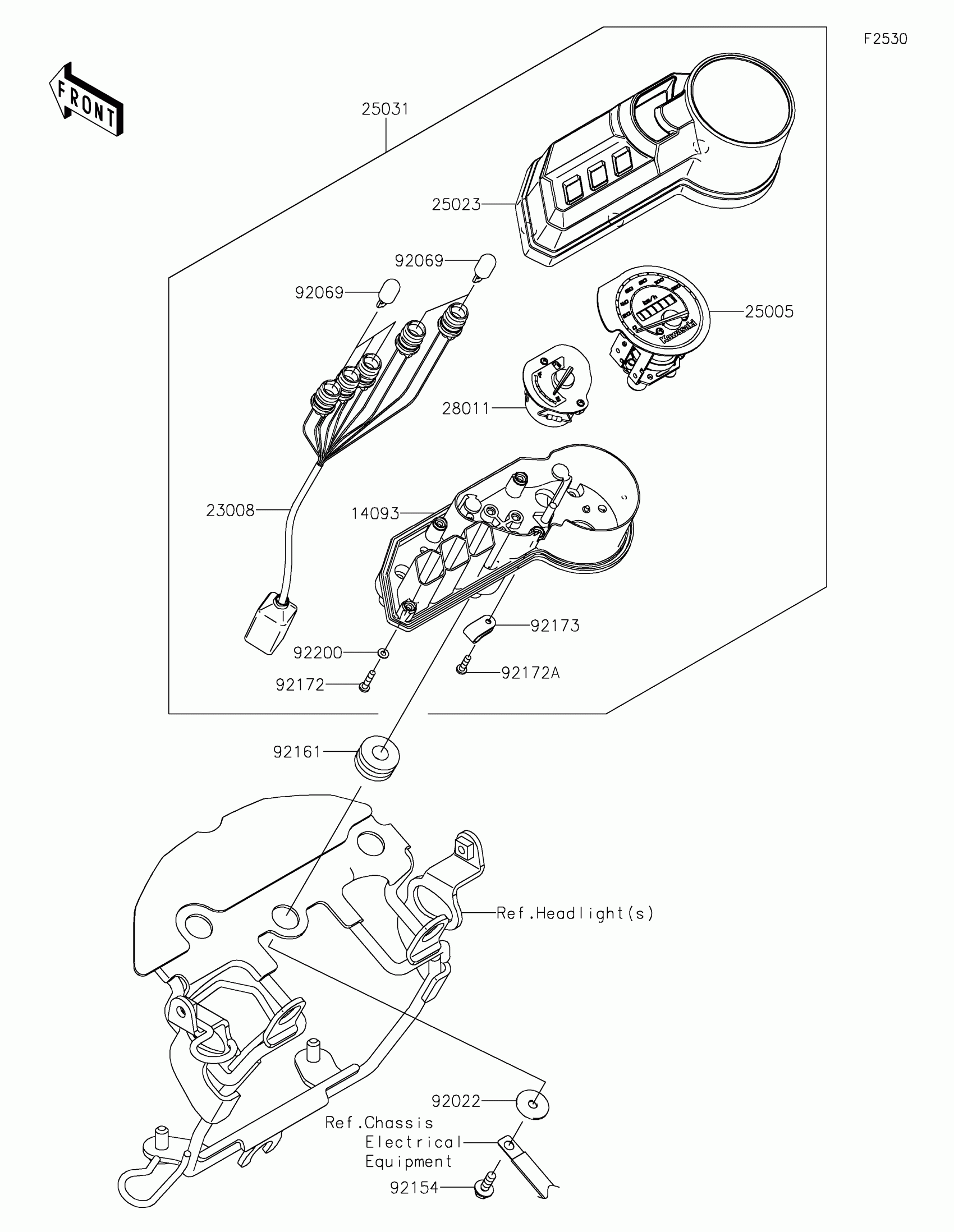

Kawasaki KLX®150L Meter(s) Diagram

Description

Price

14093

COVER

14093-0471

$53.97

23008

SOCKET-ASSY

23008-0175

$114.98

25005

SPEEDOMETER

25005-0138

$82.43

25023

COVER-METER CASE

25023-0123

$61.83

25031

METER-ASSY,KPH

25031-0779

$329.26

28011

METER

28011-0657

$28.93

92022

WASHER,5.5X20X1.2

92022-104

$3.29

92069

BULB,12V 1.7W,T10

92069-0100

$14.17

92154

BOLT,FLANGED,5X14

92154-0458

$1.73

92160

DAMPER

92160-1162

$3.81

92172

SCREW,3X12

92172-1103

$0.71

92172A

SCREW

92172-1104

$0.71

92173

CLAMP

92173-1577

$1.15

92200

WASHER

92200-1823

$0.97
