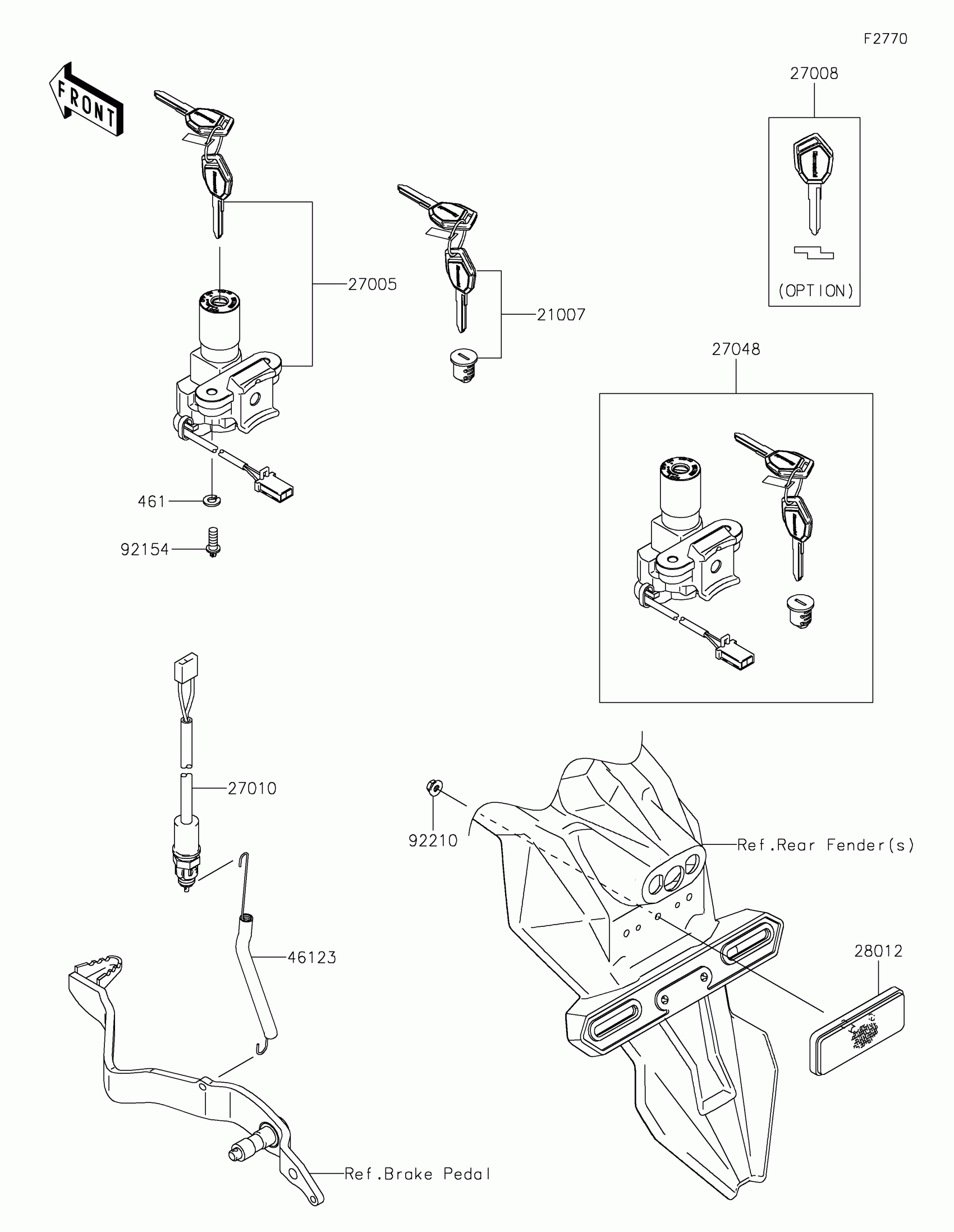

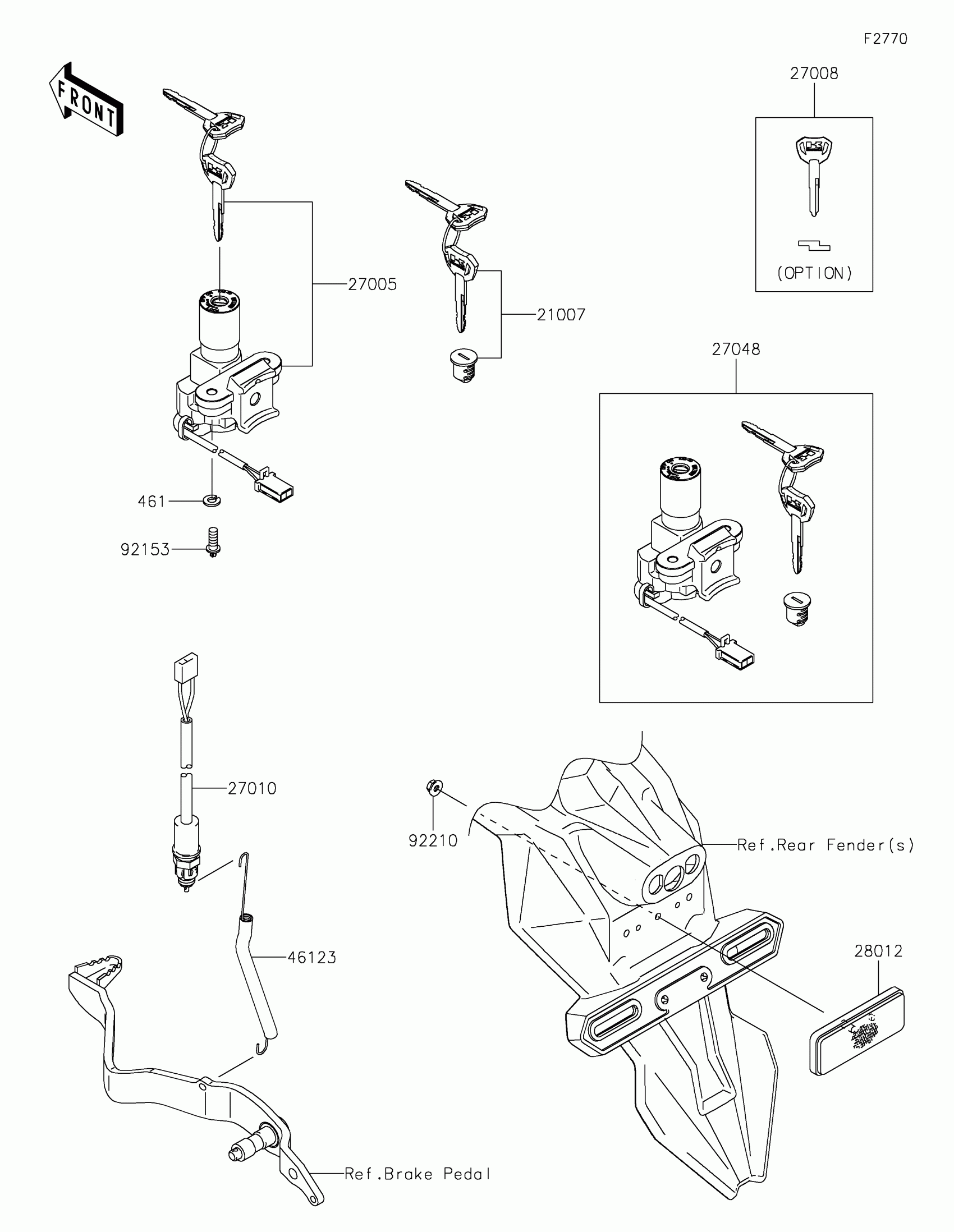

Kawasaki KLX®150L Ignition Switch Diagram

#

Description
Price

21007

ROTOR,LOCK,TANK CAP

21007-5075

$85.91

27005

SWITCH-ASSY-IGNITION

27005-0614

Unavailable

27008

KEY-LOCK,BLANK

27008-0559

$20.24

27010

SWITCH,REAR BRAKE

27010-0106

$50.57

27048

SWITCH-ASSY

27048-5085

Unavailable

28012

REFLECTOR-REFLEX

28012-1077

$21.76

46123

SPRING-COMP

46123-0007

$8.80

92153

BOLT,TORX,6X16

92153-0967

$1.85

92210

NUT,FLANGED,5MM

92210-1607

$3.29

461

WASHER-SPRING,6MM

461DA0600

$0.66
