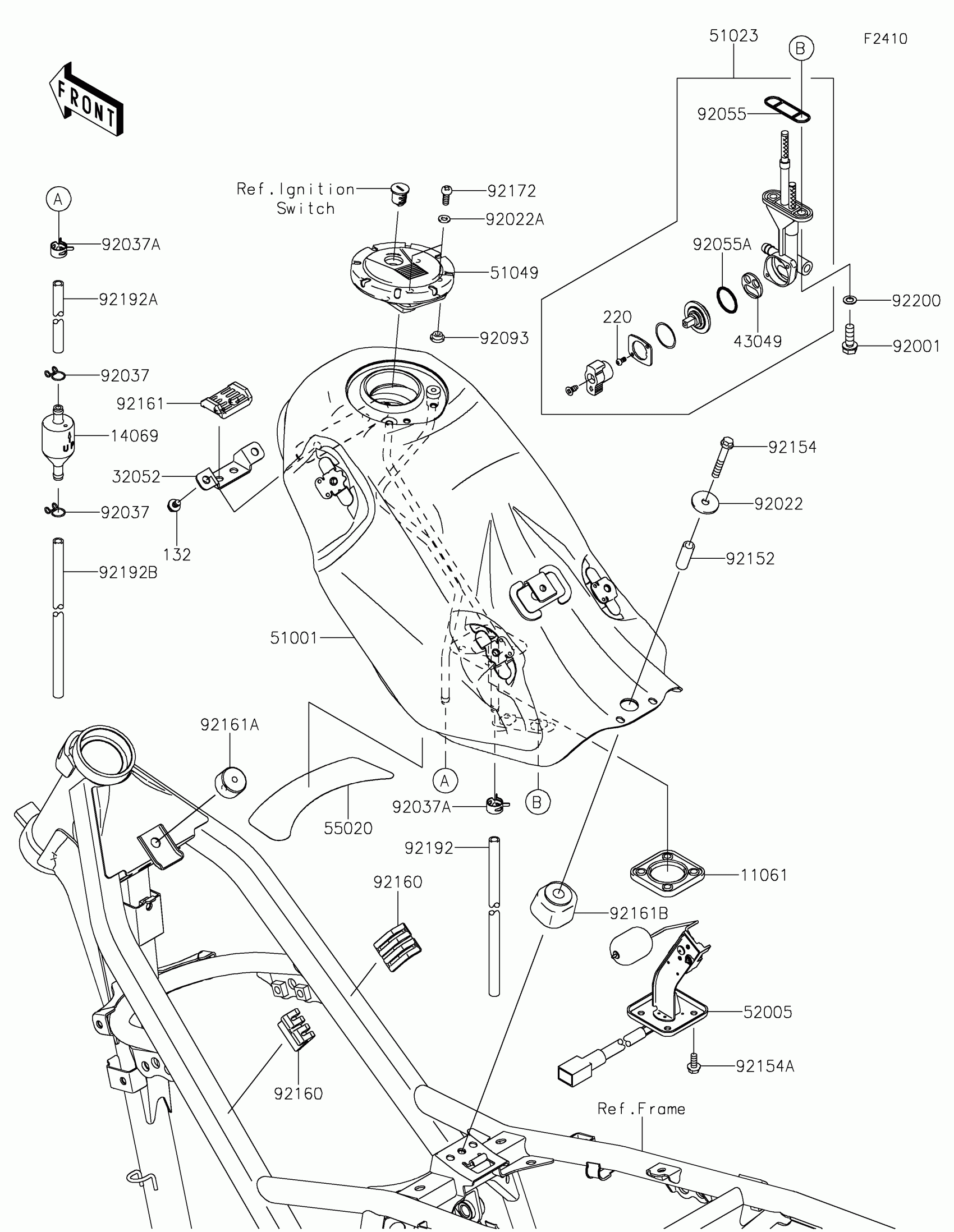

Kawasaki KLX®150L Fuel Tank Diagram

#

Description
Price

11061

GASKET,FUEL GAUGE

11061-0279

$10.24

14069

BREATHER,FUEL TANK

14069-1004

$7.76

32052

BRACKET-TANK

32052-0735

$3.68

43049

PACKING,TAP VALVE

43049-1091

$5.54

51001

TANK-COMP-FUEL,F.S.BLACK

51001-0828-25Q

Unavailable

51023

TAP-ASSY,FUEL

51023-0037

$89.66

51049

CAP-TANK,FUEL

51049-0049

$110.78

52005

GAUGE,FUEL TANK

52005-0748

Unavailable

55020

GUARD

55020-0950

$7.41

92001

BOLT,6X20

92001-1091

$2.99

92022

WASHER,6.5X24X2

92022-1690

$2.99

92022A

WASHER,5.1X10X1.0

92022-1977

$2.76

92037

CLAMP,TUBE

92037-147

$5.61

92037A

CLAMP

92037-1601

$12.32

92055

RING-O,FUEL TAP PACKING

92055-1112

$3.81

92055A

RING-O,TAP LEVER

92055-1419

$3.81

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92152

COLLAR,6.8X10X27

92152-2175

Unavailable

92154

BOLT

92154-1134

$3.27

92154A

BOLT,FLANGED,5X12

92154-1215

Unavailable

92160

DAMPER,FUEL TANK

92160-1328

$5.61

92161

DAMPER

92161-0705

$1.93

92161A

DAMPER

92161-1533

$9.92

92161B

DAMPER

92161-1817

Unavailable

92172

SCREW,5X10

92172-0496

$3.76

92192

TUBE,6X9X620

92192-1085

$12.73

92192A

TUBE,6X9X56

92192-1442

Unavailable

92192B

TUBE,6X9X260

92192-1443

Unavailable

92200

WASHER,6.5X11.5X0.8

92200-0177

Unavailable

132

BOLT-FLANGED-SMALL,6X8

132BB0608

$3.24

220

SCREW-PAN-CROS,3X8

220AA0308

$0.54
