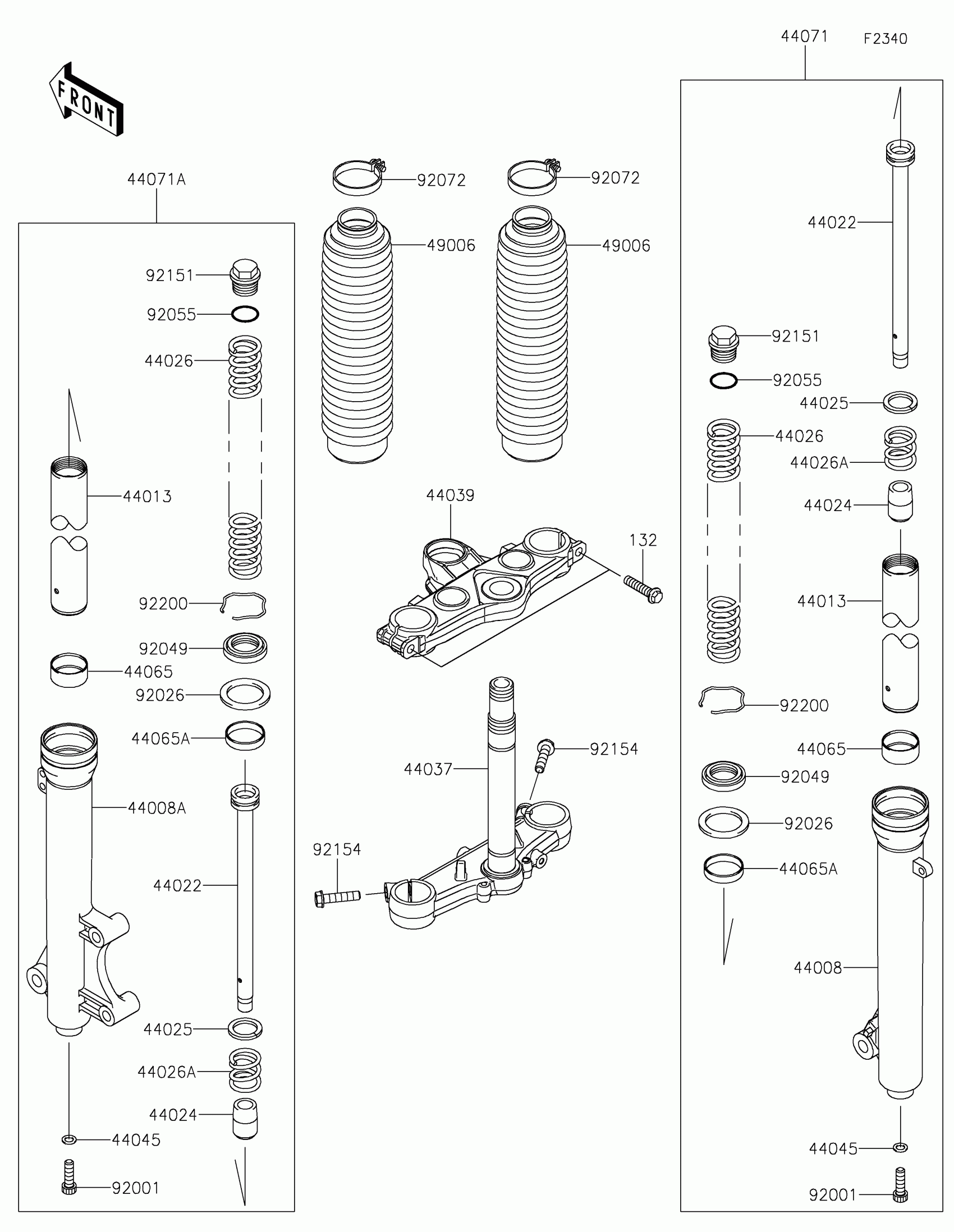

Kawasaki KLX®150L Front Fork Diagram

#

Description
Price

44008

PIPE-FORK OUTER,RH,P.SILVER

44008-0065-458

$236.80

44008A

PIPE-FORK OUTER,LH,P.SILVER

44008-0074-458

$236.80

44013

PIPE-FORK INNER

44013-0247

$205.96

44022

CYLINDER-FORK

44022-0020

$65.56

44024

CAP-OIL-LOCK

44024-1067

$21.15

44025

RING-FORK PISTON

44025-1065

$9.86

44026

SPRING-FRONT FORK

44026-0179

$46.85

44026A

SPRING-FRONT FORK

44026-1417

$3.51

44037

HOLDER-FORK UNDER,P.SILVER

44037-0138-458

$259.54

44039

HOLDER-FORK UPPER,P.SILVER

44039-0083-458

$159.78

44045

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

44065

BUSHING-FRONT FORK,INNER PIPE

44065-0053

$21.31

44065A

BUSHING-FRONT FORK

44065-1133

$13.27

44071

DAMPER-ASSY,RH,P.SILVER

44071-1302-458

$470.55

44071A

DAMPER-ASSY,LH,P.SILVER

44071-1303-458

$470.55

49006

BOOT,FORK,BLACK

49006-0583-BD

$62.32

92001

BOLT,FORK CYLINDER

92001-1464

$4.67

92026

SPACER

92026-1365

$9.42

92049

SEAL-OIL,FORK OUTER TUBE

92049-1524

$13.40

92055

RING-O,FORK TOP

92055-1367

$4.33

92072

BAND,BOOT

92072-0107

$11.42

92151

BOLT,FORK TOP

92151-1262

$41.61

92154

BOLT

92154-1169

$10.10

92200

WASHER

92200-1496

$5.25

132

BOLT-FLANGED-SMALL,8X35

132BA0835

$3.63
