Partiron

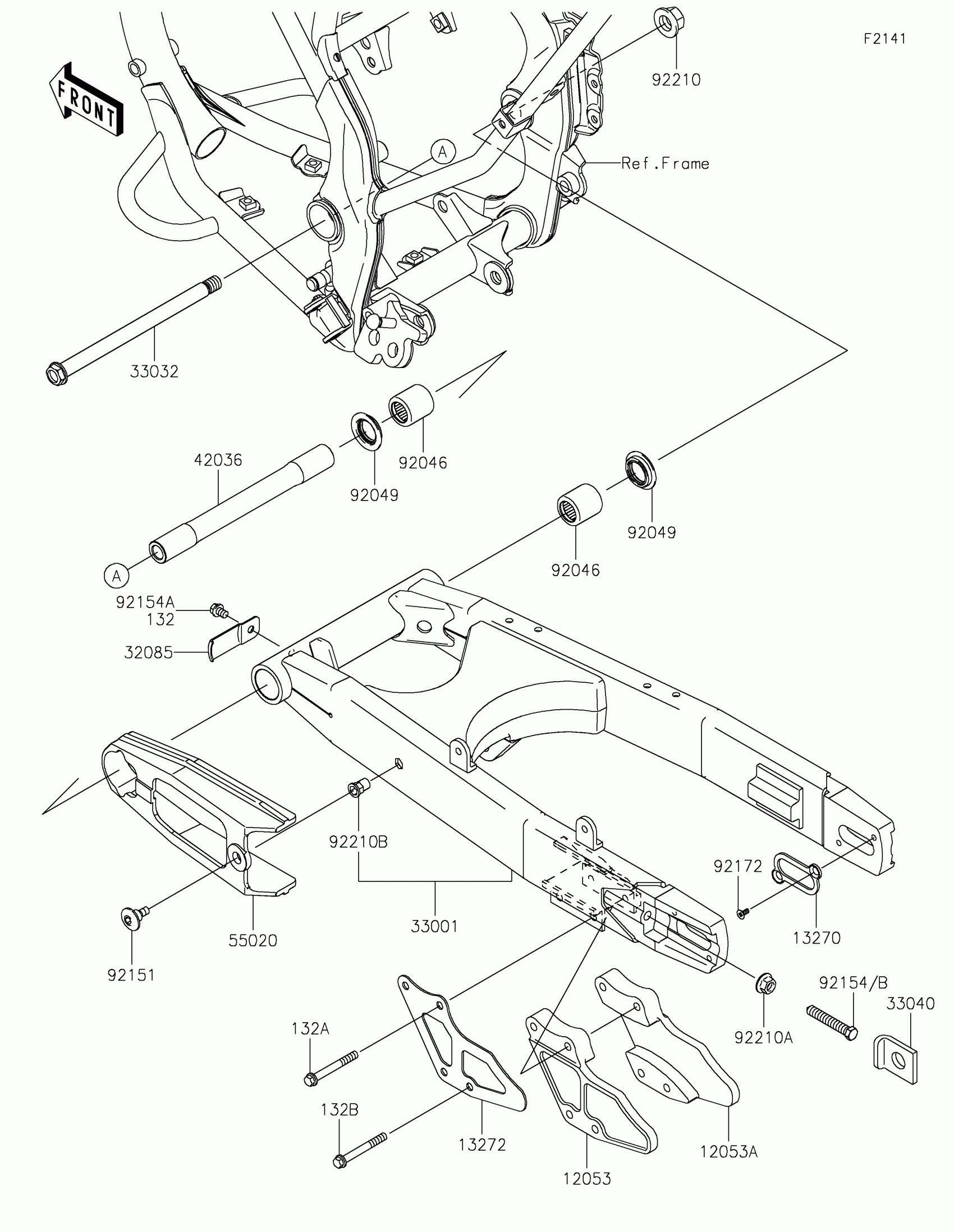

Kawasaki KLX®140R Swingarm Diagram

#

Description
Price

12053

GUIDE-CHAIN

12053-0116

$18.89

12053A

GUIDE-CHAIN

12053-0118

$21.90

132

BOLT-FLANGED-SMALL,6X8

132BA0608

$1.77

13270

PLATE

13270-1899

$7.17

13272

PLATE,CHAIN GUIDE

13272-0406

$17.39

132A

BOLT-FLANGED-SMALL,6X45

132BA0645

$3.39

132B

BOLT-FLANGED-SMALL,6X50

132BA0650

$2.80

32085

STOPPER

32085-0138

$7.61

33001

ARM-COMP-SWING

33001-0151

$558.70

33032

SHAFT-SWING ARM,14X227

33032-0030

$31.36

33040

ADJUSTER-CHAIN

33040-0032

$5.12

42036

SLEEVE,PIVOT,L=197.8

42036-0045

$47.69

55020

GUARD,CHAIN

55020-0336

$25.24

92001

BOLT,8X46

92001-1179

$14.20

92009

SCREW,5X10

92009-1828

$1.76

92015

NUT,FLANGED,8MM

92015-1014

$0.57

92015A

NUT,14MM

92015-1407

$7.54

92046

BEARING-NEEDLE,BM202726

92046-1110

$18.91

92049

SEAL-OIL,ARM

92049-1109

$7.08

92151

BOLT,SOCKET,6X18

92151-1149

$5.86

92210

NUT,POP,6MM,L=15

92210-1397

$4.81
